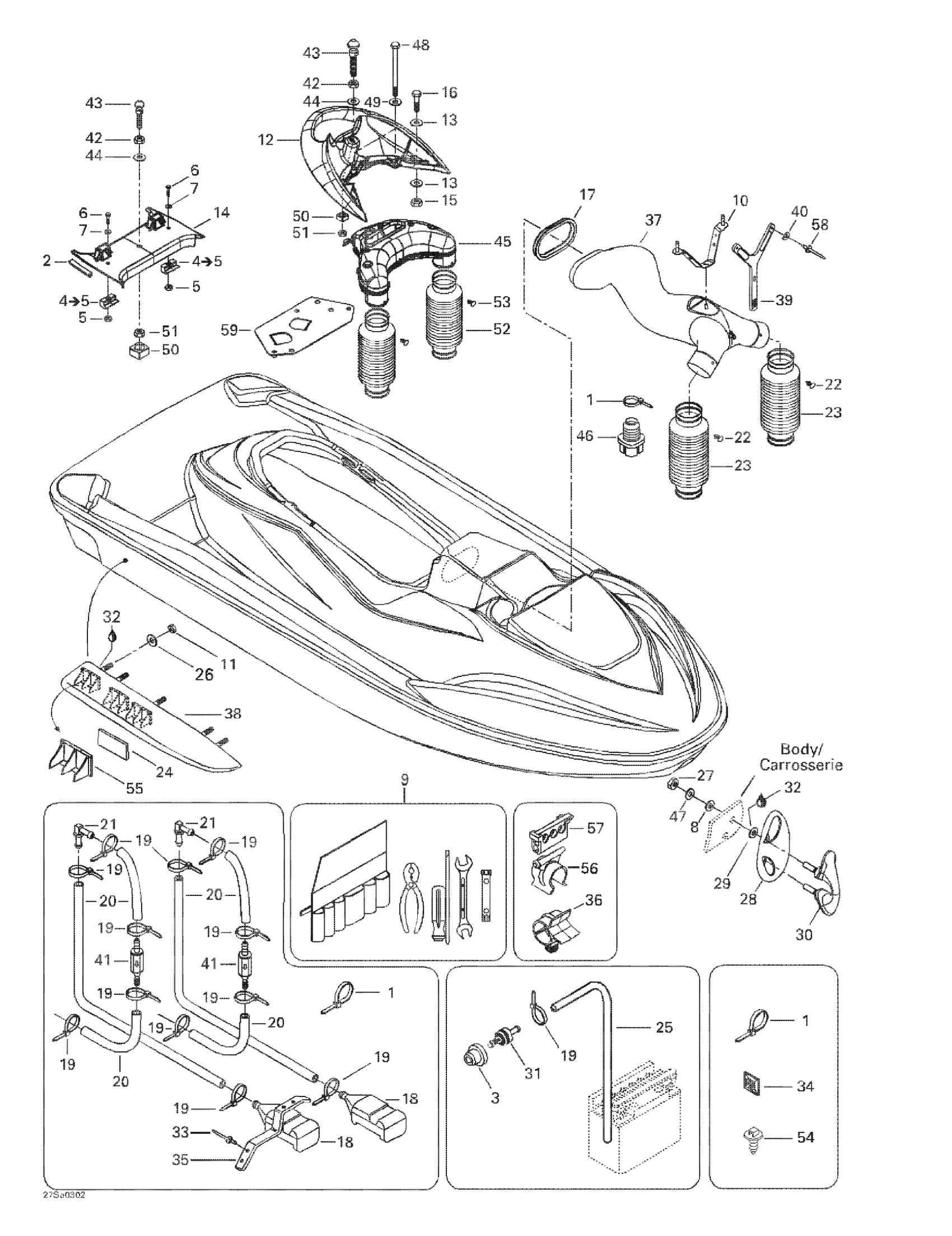

Sea-doo GTI LE RFI, 6103/6104, 2003 Body, Front View Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie Wrap 368 mm

293750008

$1.04

2

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

3

Grommet

293720029

$1.59

4

Link Bridge Ass'y

291001931

$26.99

5

Square Nut M8

211100033

$17.99

6

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207384060

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Rubber Washer

293830037

$2.68

9

Owners Tool Kit

295500783

Unavailable

10

Collector Support

291001614

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

GRAB HANDLE - Call your local BRP dealership

269000812

Unavailable

13

Stainless, Flat Washer 8 mm

234081600

$0.55

14

Upper Bridge

291001854

Unavailable

15

Hex. Elastic Nut M8

232581600

$1.48

16

Hex. Screw M8 X 45

207084560

$3.38

17

Collector Joint

291001424

Unavailable

18

Bailer Screen

292000688

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Dart, Fastex

293730024

$1.39

23

Vent Hose

291001777

Unavailable

24

CUSHION - Call your local BRP dealership

292000414

Unavailable

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Nut M8

232581600

$1.48

28

Black Shell

292001837

$20.99

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

Tie-Rap Mount

293750025

$1.25

35

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

36

Cable Retainer

275500527

$2.68

37

Front Collector

291001629

Unavailable

38

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

39

Rubber Strap

293850065

Unavailable

40

Flat Washer 5 mm, Stainless

234052600

$0.77

41

Check Valve

276000093

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

Vent Tube Baffle Ass’y | Includes 11 to 12

291001873

Unavailable

46

GROMMET - Call your local BRP dealership

293720042

Unavailable

47

Flat Washer 8 mm, Stainless

250200175

$3.06

48

HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership

230262060

Unavailable

49

Flat Washer M6, Stainless

234062600

$0.77

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

52

Vent Hose

291001777

Unavailable

53

Dart, Fastex

293730024

$1.39

54

Mount Dart

293730040

$1.04

55

Insert

293450149

Unavailable

56

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

57

Wire Support

278001597

Unavailable

58

Pop Rivet 3/16"

293150043

$2.09

59

PLATE - Call your local BRP dealership

278001868

Unavailable
