- GTI LE RFI, 6103/6104, 2003
05- Reverse

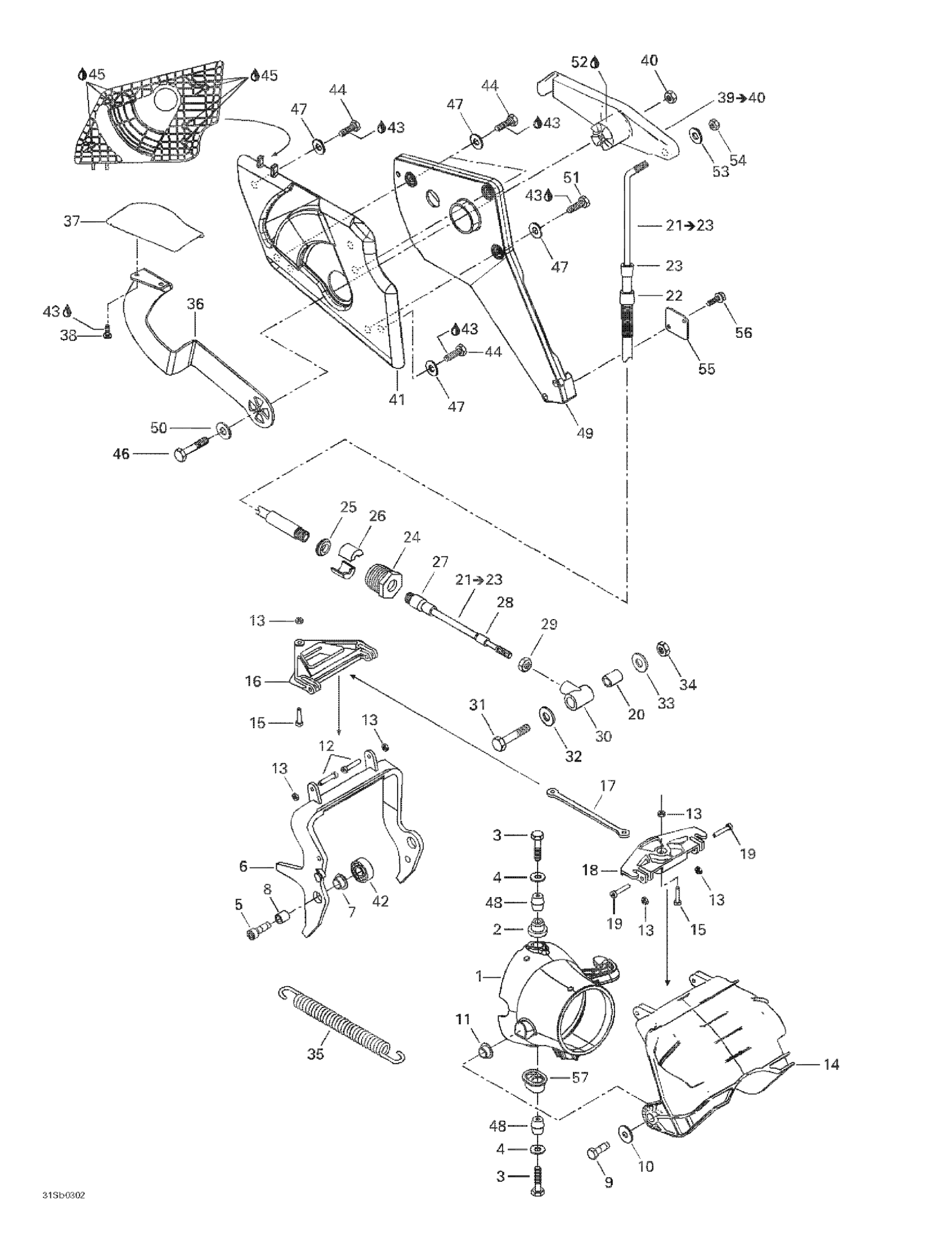

Sea-doo GTI LE RFI, 6103/6104, 2003 05- Reverse Diagram
#
1
Steering Nozzle
271001311
Unavailable
2
Venturi Bushing
293900001
$7.62
3
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
4
Flat Washer M8.5 x 18
293050001
$3.07
5
PIVOT SCREW M8 X 25 - Call your local BRP dealership
250000026
Unavailable
6
ARM BLACK - Call your local BRP dealership
271001012
Unavailable
7
Venturi Bushing
271000321
$8.69
8
Spacer
271001039
$16.49
9
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Spacer
277001066
Unavailable
12
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
13
Hex. Elastic Nut M5 | X
232551600
$1.15
14
Gate Reverse
271001317
Unavailable
15
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
16
TRIANGLE - Call your local BRP dealership
268000013
Unavailable
17
CONNECTOR ROD - Call your local BRP dealership
271001018
Unavailable
18
ROD PIVOT - Call your local BRP dealership
268000014
Unavailable
19
SCREW PIVOT - Call your local BRP dealership
250000023
Unavailable
20
Spacer
271001020
$12.99
21
Reverse Cable
268000017
$153.49
22
Boot, Large
277000473
Unavailable
23
Boot, Small
277000466
Unavailable
24
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
25
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
26
Half Ring
277000055
$9.49
27
Boot, Large
277000473
Unavailable
28
Boot, Small
277000466
Unavailable
29
Hex. Nut
212100005
$1.35
30
Joint
277001204
$18.49
31
Hex. Screw M6 X 35
207063560
$2.22
32
Flat Washer M6, Stainless
234062600
$0.77
33
Stainless Flat Washer M6
234061600
$0.33
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
Spring
271001328
$17.49
36
HANDLE LEVER - Call your local BRP dealership | RXP
271000982
Unavailable
37
REVERSE HANDLE - Call your local BRP dealership
271000983
Unavailable
38
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
39
Lever Ass.
271000986
$42.99
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Handle Housing
271000984
Unavailable
42
BUSHING - Call your local BRP dealership | GTS PRO
293900038
Unavailable
43
Loctite 243, 10 ml
293800060
$21.49
44
Hex. Cap Screw M6 X 12
207161260
$1.26
45
Silicone Sealant 51388, 300 ml
296000309
$36.99
46
Hex. Screw M6 X 16
207161660
$1.59
47
Flat Washer M6, Stainless
234062600
$0.77
48
Sleeve
271001816
$14.99
49
REVERSE CABLE SUPPORT - Call your local BRP dealership
268000010
Unavailable
50
Stainless Flat Washer M6
234061600
$0.33
51
Hex. Screw M6 X 16
207161660
$1.59
52
Synthetic Grease, 400 G
293550010
Unavailable
53
Flat Washer M5, Stainless
234051600
$0.77
54
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
55
BRACKET - Call your local BRP dealership
277001058
Unavailable
56
Hex. Flange Screw M5 X 30
207153060
$1.99
57
Plastic Bushing
293900010
$9.59
