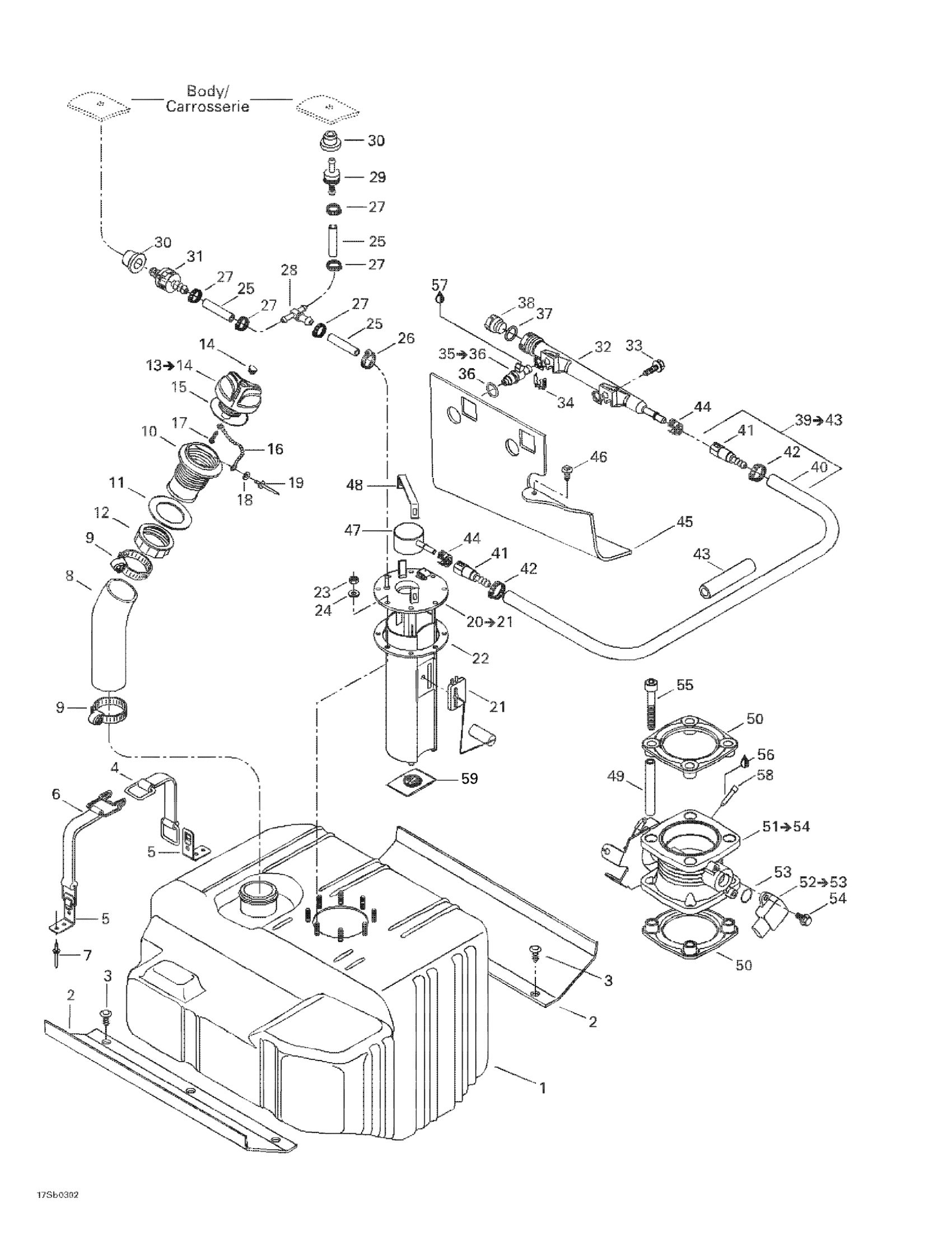

Sea-doo GTI LE RFI, 6103/6104, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500427

Unavailable

2

Rubber Pad

293830077

Unavailable

3

Black, Dart

293730006

$0.99

4

Fuel Tank Strap

293850036

$18.99

5

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

6

Fuel Tank Strap

293850094

$22.49

7

Avdel Rivet 3/16"

293150037

$0.56

8

Filler Neck Hose

275500434

Unavailable

9

Tridon Clamp

293650023

$13.49

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.48

18

Flat Washer M3, Stainless

234032600

$0.55

19

Pop Rivet 1/8"

390407900

$1.49

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

21

Sensor Level

270600012

Unavailable

22

Gasket

293250088

$14.99

23

Elastic Stop Nut 5 mm

232551200

$1.47

24

Flat Washer 5 mm, Stainless

234052400

$2.85

25

Was 275500549 Hose 1/4"

219704357

$194.99

26

Tridon Gear Clamp

293650170

$1.99

27

Oetiker Gear Clamp

293650025

$3.09

28

Y-Fitting

293710059

$9.69

29

Check Valve

275500398

$10.99

30

Grommet

293720029

$1.59

31

Check Valve

275500505

$31.99

32

Fuel Rail

270600008

Unavailable

33

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.78

34

Injector Circlip

270600010

Unavailable

35

Injector | Includes 35 - 36.

270600017

Unavailable

36

O-Ring

293300071

Unavailable

37

O-RING - Call your local BRP dealership

293300042

Unavailable

38

CAP - Call your local BRP dealership

270600009

Unavailable

39

Hose Ass’y | Includes 39 - 43.

275500573

Unavailable

40

Hose 1/4”

275500563

Unavailable

41

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

42

Crimp Clamp, 15.3-706R

293650047

$3.29

43

Shrink Tubing | XT Models

275500578

Unavailable

44

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

45

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

46

Mount Dart

293730040

$1.04

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

50

GASKET - Call your local BRP dealership

293250071

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Position Sensor

420866120

$98.99

53

O-Ring

270000544

$4.65

54

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

55

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Socket Head Screw M6 X 30

205063060

$2.75

59

Fuel Filter, Bosch

219700368

$39.99
