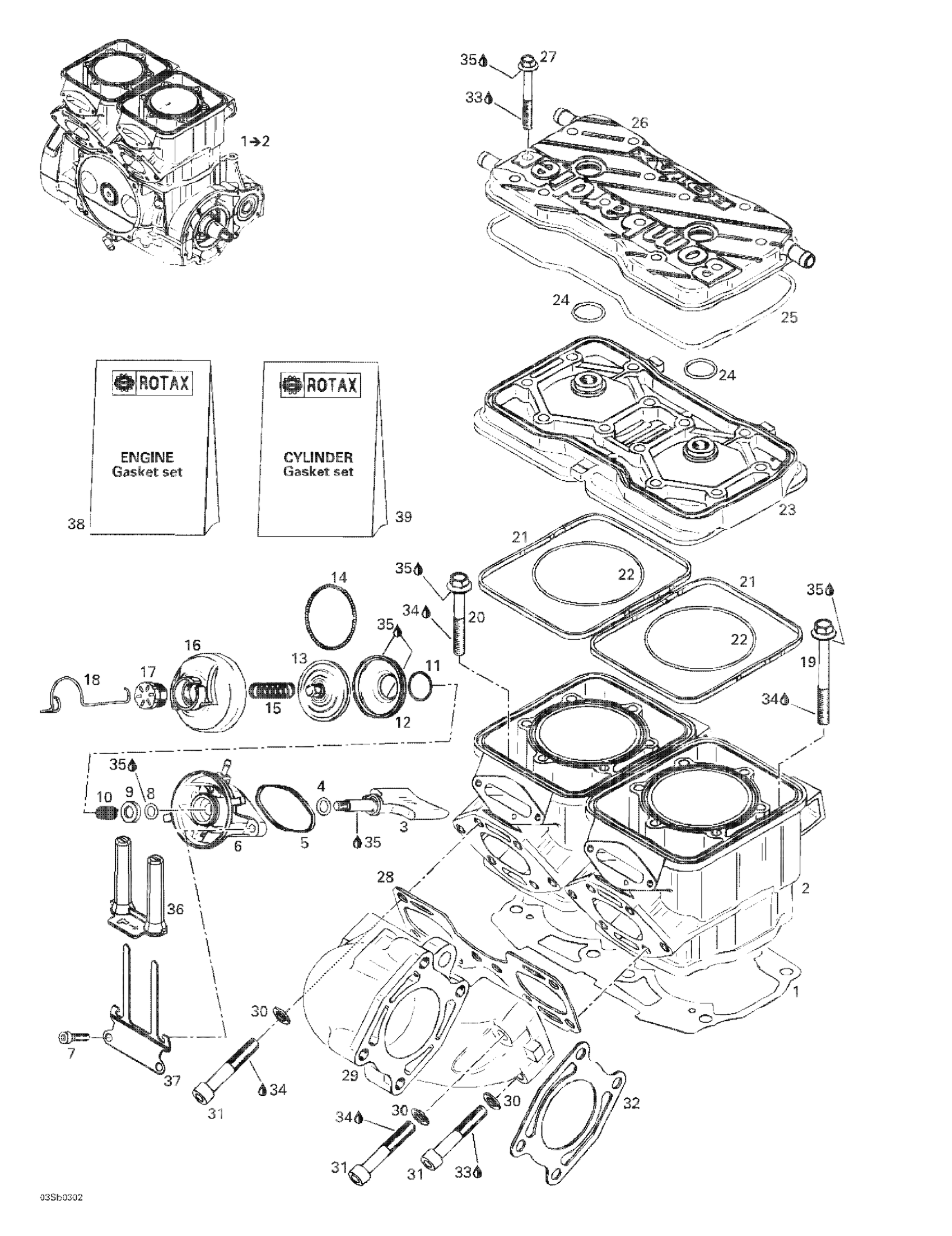

Sea-doo GTI LE RFI, 6103/6104, 2003 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block <<787>> Ass'y (SIlver, 6104) | Includes 1 - 23.

420078703

Unavailable

Short Block <<787>> Ass'y (Black, 6103)

420078706

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

CYLINDER GASKET 0.6MM - Call your local BRP dealership

420931728

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

CYLINDER GASKET 0.4MM - Call your local BRP dealership

420931726

Unavailable

CYLINDER GASKET 0.3MM - Call your local BRP dealership

420931725

Unavailable

2

CYLINDER WITH SLEEVE (SILVER, 6104) - Call your local BRP dealership

420923846

Unavailable

CYLINDER WITH SLEEVE (BLACK, 6103) - Call your local BRP dealership

420923847

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854354

Unavailable

4

O-Ring

420931765

$0.81

5

RUBBER GASKET - Call your local BRP dealership

420931670

Unavailable

6

Valve Housing

420854438

Unavailable

Valve Housing

420854436

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.42

8

O-Ring

420931765

$0.81

9

SUPPORTING RING - Call your local BRP dealership

420926225

Unavailable

10

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

11

Hose Spring This part replaces 420838253.

420838255

$6.11

12

Exhaust Bellows

420260723

$35.07

13

EXHAUST VALVE PISTON - Call your local BRP dealership

420854446

Unavailable

14

Hose Spring This part replaces 420239048.

420939281

$5.99

15

COMPRESSION SPRING - Call your local BRP dealership

420939137

Unavailable

16

Valve Cover This part replaces 420911558.

420911559

$24.02

17

Adjuster Screw

420241221

$12.52

18

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

19

Hex. Flange Screw M10 X 105

420941903

Unavailable

20

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

21

RUBBER RING - Call your local BRP dealership

420931420

Unavailable

22

O-Ring | Included in gasket kit

420931410

$2.67

23

HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302.

420923308

Unavailable

Head Cylinder (Black, 6103)

420923309

Unavailable

24

O-Ring

420430782

$4.41

25

O-RING - Call your local BRP dealership

420831550

Unavailable

26

CYLINDER HEAD COVER - Call your local BRP dealership

420923313

Unavailable

Cylinder Head Cover (Black, 6103)

420923316

Unavailable

27

FLANGED HEX. SCREW M8 X 60 - Call your local BRP dealership

420240728

Unavailable

28

Gasket This part replaces 290931480.

420931481

Unavailable

29

Exhaust Manifold (Silver, 6104)

420979484

Unavailable

Exhaust Manifold, Black

420979483

Unavailable

30

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

31

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

32

EXHAUST GASKET - Call your local BRP dealership

420931503

Unavailable

33

Loctite 243, 10 ml

293800060

$20.77

34

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

35

Dow Corning 111, 150 g

413707000

$57.82

36

INSULATOR - Call your local BRP dealership

278001512

Unavailable

37

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

38

ENGINE GASKET SET - Call your local BRP dealership

420886392

Unavailable

39

CYLINDER GASKET SET - Call your local BRP dealership

420886396

Unavailable
