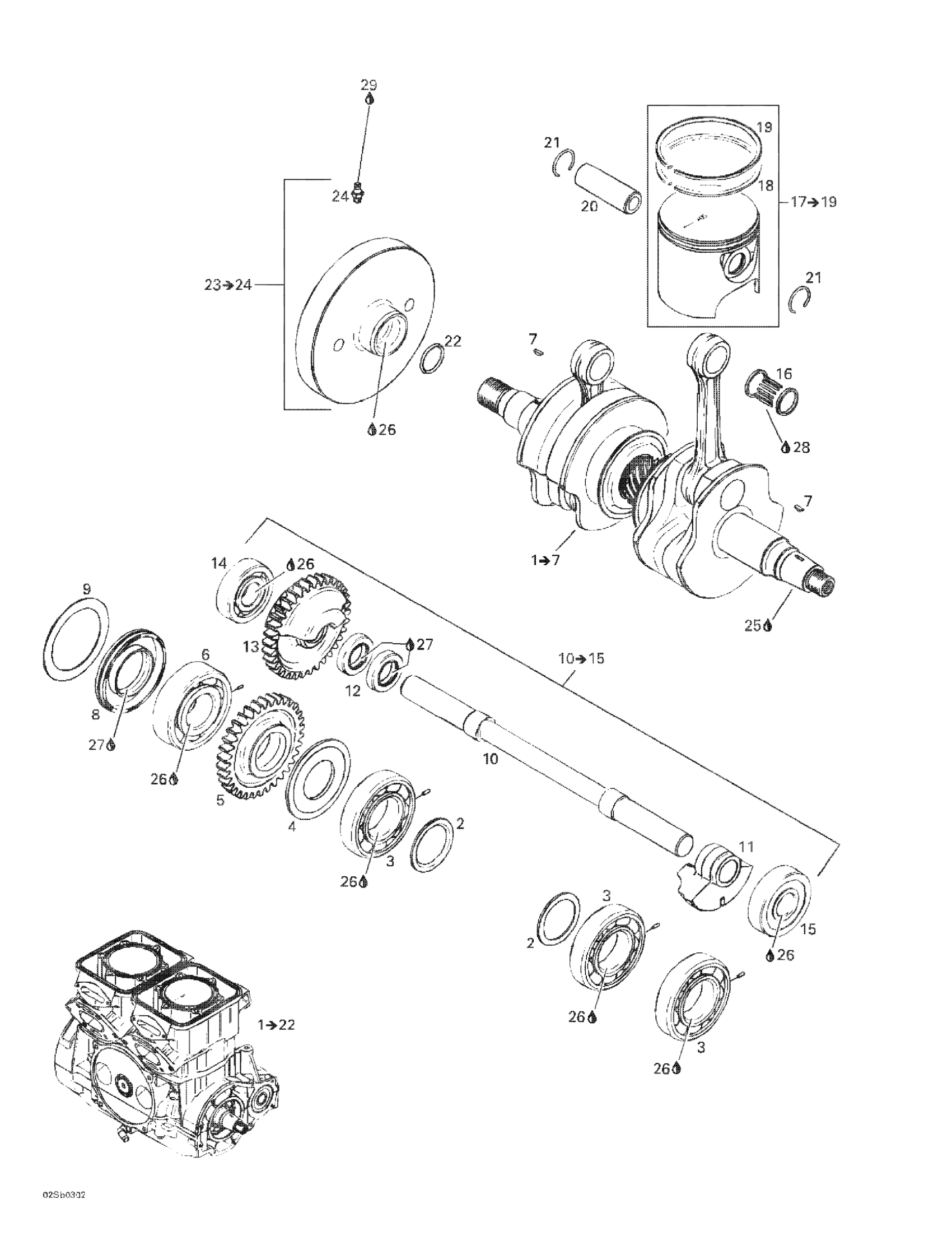

Sea-doo GTI LE RFI, 6103/6104, 2003 Crankshaft And Pistons Diagram

#

Description
Price

1

Short Block <<787>> Ass'y (SIlver, 6104) | Includes 1 - 23.

420078703

Unavailable

Short Block <<787>> Ass'y (Black, 6103)

420078706

Unavailable

1

REBUILD-CRANKSHAFT 787 RFI 98 - Call your local BRP dealership | Includes 1 to 7 This part replaces 420887891.

421000712

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

3

Ball Bearing

420832573

$44.49

4

Labyrinth Washer

420926140

Unavailable

5

Gear 43 Teeth

420834315

Unavailable

6

BALL BEARING - Call your local BRP dealership

420932579

Unavailable

7

Woodruff Key

420246055

$2.43

8

OIL SEAL - Call your local BRP dealership

420830638

Unavailable

9

RETAINING SHIM - Call your local BRP dealership

420926060

Unavailable

10

Balance Shaft Ass'y | Includes 10 to 16

420837406

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Ball Bearing 6304E

420932095

Unavailable

15

Bearing_Ball - Call your local BRP dealership

420932098

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

420832420

$33.99

17

PISTON WITH 2 RINGS, 81.91 MM - Call your local BRP dealership | Includes 18 to 20

420888410

Unavailable

Piston Oversize, 2 Rings, 82.16 mm | Includes 18 to 20

420888411

Unavailable

18

RECTANGULAR RING, STD, 82.00 MM - Call your local BRP dealership

420815080

Unavailable

RECTANGULAR RING, 1ST, 82.25 MM - Call your local BRP dealership

420815081

Unavailable

19

SEMI-TRAPEZ RING, STD, 82.00 MM - Call your local BRP dealership

420815100

Unavailable

Semi-trapez Ring, 1st, 82.25 mm

420815101

Unavailable

20

Piston Pin This part replaces 290916402.

420916404

$28.49

21

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

22

O-Ring

420430782

$5.39

23

Flywheel Clutch, Silver 6104 | Includes 23 - 24.

420958141

Unavailable

FLYWHEEL CLUTCH, BLACK - Call your local BRP dealership | Includes 24 to 25

420958142

Unavailable

24

GREASE FITTING - Call your local BRP dealership

420499113

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

Dow Corning 111, 150 g

413707000

$59.99

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

29

Synthetic Grease, 400 G

293550010

Unavailable

30

ENGINE GASKET SET - Call your local BRP dealership

420886392

Unavailable

31

CYLINDER GASKET SET - Call your local BRP dealership

420886396

Unavailable
