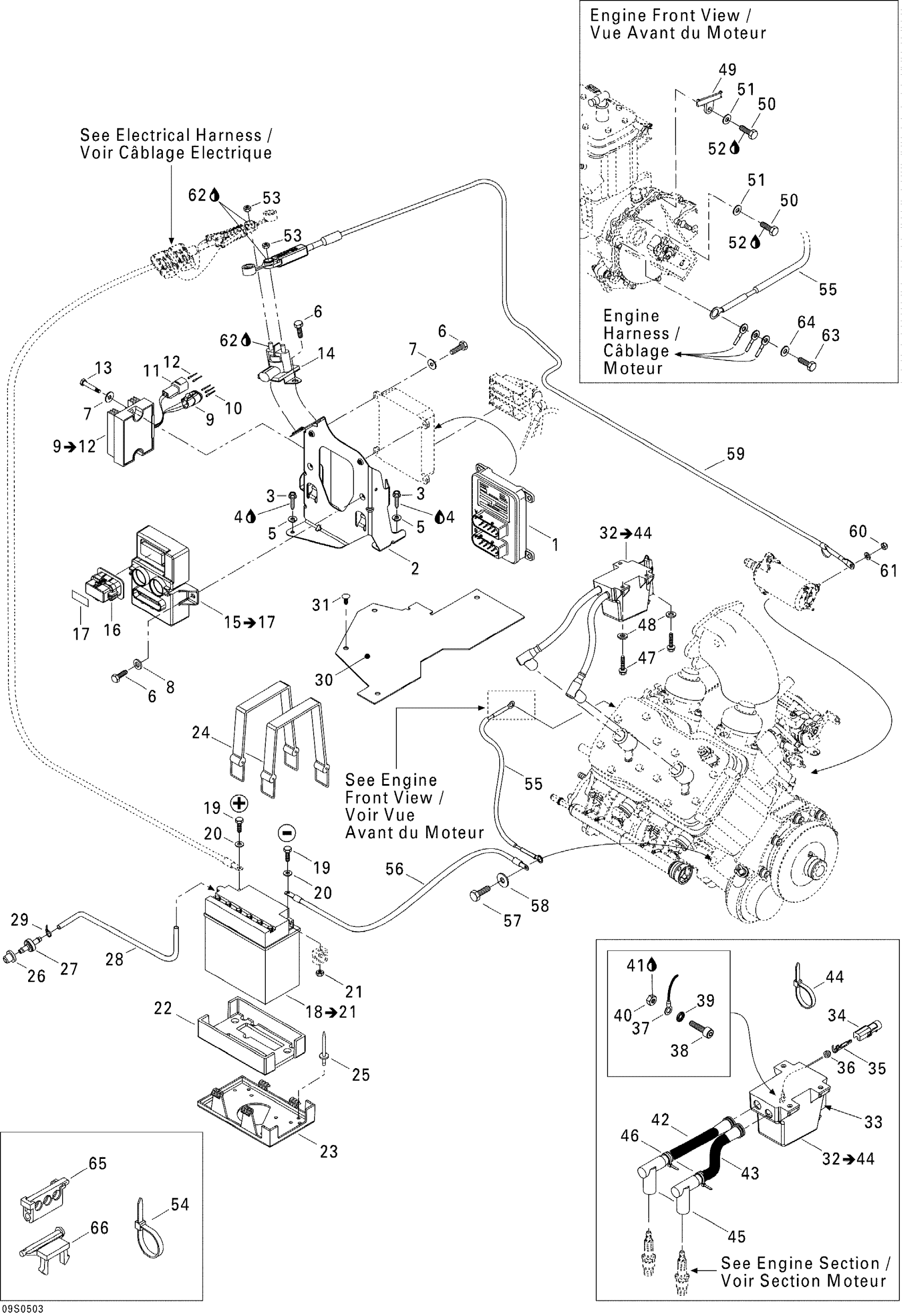

Sea-doo GTI LE RFI, 2005 Electrical System Diagram

#

Description
Price

1

ECM, Engine Control Module

420665226

Unavailable

2

MODULES SUPPORT - Call your local BRP dealership

278002009

Unavailable

3

Hex. Screw 10-14 X 7/8”

211000023

$2.91

4

Loctite 271, 10 ml

293800005

$20.77

5

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

6

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

7

Stainless Flat Washer M6

234061600

$0.25

8

Flat Washer M6, Stainless

234062600

$0.64

9

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

9

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

10

Female Terminal

278000632

$1.69

11

Male Housing, 2 Circuits

409206900

$8.72

12

Female Terminal

515175567

$5.85

13

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

14

Starter Relay

278003012

$35.07

15

VCM Electronic Module | Includes 15 to 17

278001988

Unavailable

16

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

17

Sticker

278002103

Unavailable

18

Battery 19A | Includes 5 to 8

278001756

$144.75

19

Hex. Screw M6 X 16

207161644

$0.61

20

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

21

Hex. Nut M6

232061414

$0.44

22

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

23

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

24

Retainer Strap

293850097

$9.26

25

Avdel Rivet 3/16"

293150037

$0.47

26

Grommet

293720029

$1.13

27

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

28

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

30

Module Protector

278002077

Unavailable

31

Mount Dart

293730040

$0.86

32

IGNITION COIL ASSY - Call your local BRP dealership | Includes 32 to 44

278001545

Unavailable

33

Ignition Coil

278001546

$129.32

34

Female Housing, 1 Circuit

278000161

$8.72

35

Male Terminal

409004300

$5.30

36

Wire Seal

278000218

$3.48

37

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

38

Socket Head Screw M6 X 20

205062044

$1.07

39

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

40

Elastic Stop Nut M6

232561414

$1.55

41

Loctite 271, 10 ml

293800005

$20.77

42

Spark Plug Wire, 270 mm

278001464

Unavailable

43

Spark Plug Wire

278001465

Unavailable

44

Tie Wrap 142 mm

293750002

$0.88

45

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

46

Tie Wrap 142 mm

293750002

$0.88

47

Tapping Screw M6.3 X 32

209663260

Unavailable

48

Stainless Flat Washer M6

234061600

$0.25

49

Clip

278001873

Unavailable

50

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

51

Stainless Flat Washer M6

234061600

$0.25

52

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$0.92

54

Tie Wrap 94 mm | 4X4

293750001

$0.83

54

Tie Wrap 142 mm

293750002

$0.88

54

Tie-Rap 180 mm

414115200

$0.09

54

Tie Wrap 368 mm

293750008

$0.85

55

Ground Wire

278002092

Unavailable

56

Battery Ground Cable

278001973

Unavailable

57

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

58

Stainless, Flat Washer 8 mm

234081600

$0.46

59

Starter Cable

278002060

Unavailable

60

Hex. Elastic Stop Nut M6

232561600

$0.92

61

Stainless Flat Washer M6

234061600

$0.25

62

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

63

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

64

Stainless Flat Washer M6

234061600

$0.25

65

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

66

Collar Support

278001096

Unavailable
