Description

Price

1

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 420

278002052

Unavailable

10

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

20

Female Terminal

278000632

$2.09

30

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

40

BUZZER - Call your local BRP dealership

278001586

Unavailable

50

Switch

278002054

Unavailable

60

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

$114.99

70

Male Terminal

278000230

$4.39

80

Insulated Sheath

278001008

$3.28

90

Switch, Mode/Set

278001836

Unavailable

100

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

130

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

140

Female Wedge, 4 Circuits

278000636

$4.39

150

Male Terminal

278000631

$4.39

160

Female Terminal | DS 650 X

278001009

$3.19

170

Insulated Sheath

278000770

$7.90

420

Housing 9 mm, Meter

293100012

Unavailable

420

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

420

Pvc Vinyl Tubing

293100011

Unavailable

420

Heat Shrink Tubing 25 mm

512059668

Unavailable

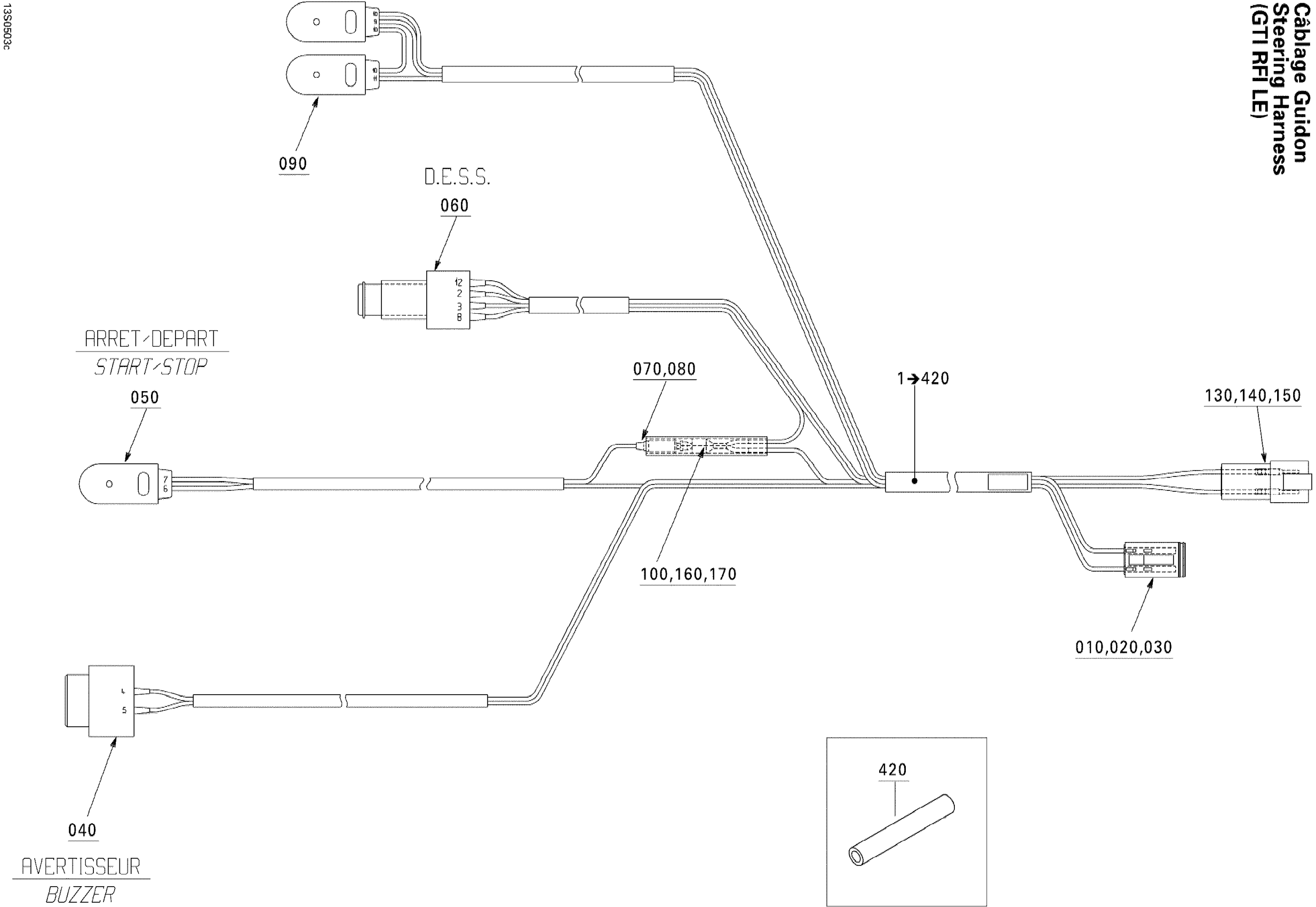

Sea-doo GTI LE RFI, 2005 10- Electrical Harness LE Diagram

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 420

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

Female Terminal

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

BUZZER - Call your local BRP dealership

Switch

Interrupteur *Safety Switch | SERV This part replaces 278002350.

Male Terminal

Insulated Sheath

Switch, Mode/Set

Was 293550004 Dielectric Grease, 150 g

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

Female Wedge, 4 Circuits

Male Terminal

Female Terminal | DS 650 X

Insulated Sheath

Housing 9 mm, Meter

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

Pvc Vinyl Tubing

Heat Shrink Tubing 25 mm
