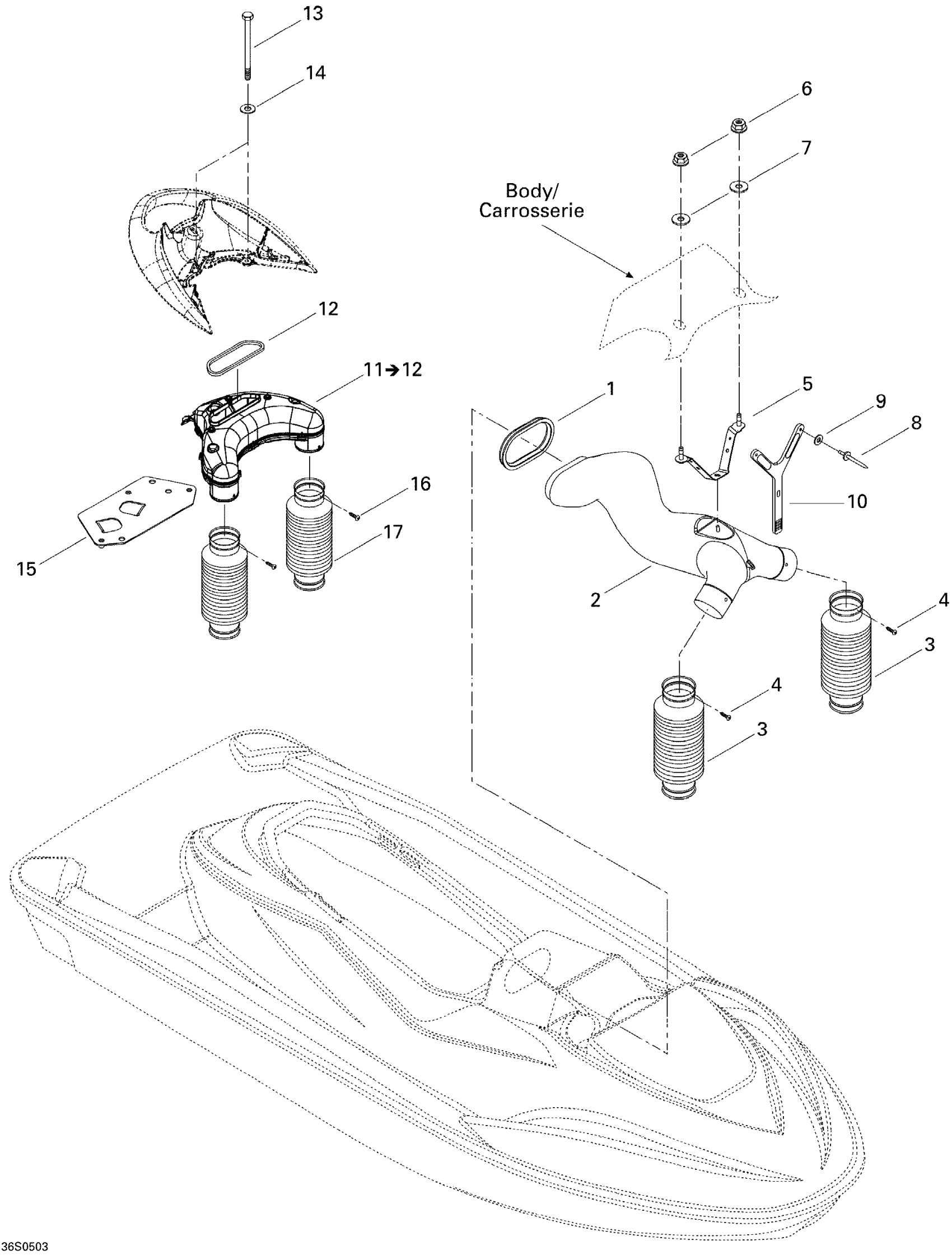

Sea-doo GTI LE RFI, 2005 09- Ventilation Diagram

#

Description
Price

1

Collector Joint

291001424

Unavailable

2

Front Collector

291001629

Unavailable

3

Vent Hose

291001777

Unavailable

4

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

5

Collector Support

291001614

Unavailable

6

Hex. Elastic Nut M8

232581600

$1.48

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Pop Rivet 3/16"

293150043

$2.09

9

Flat Washer 5 mm, Stainless

234052600

$0.77

10

Rubber Strap

293850065

Unavailable

11

Vent Tube Baffle Ass’y | Includes 11 to 12

291001873

Unavailable

12

BAFFLE SEAL - Call your local BRP dealership

293200088

Unavailable

13

HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership

230262060

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

PLATE - Call your local BRP dealership

278001868

Unavailable

16

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

17

Vent Hose

291001777

Unavailable
