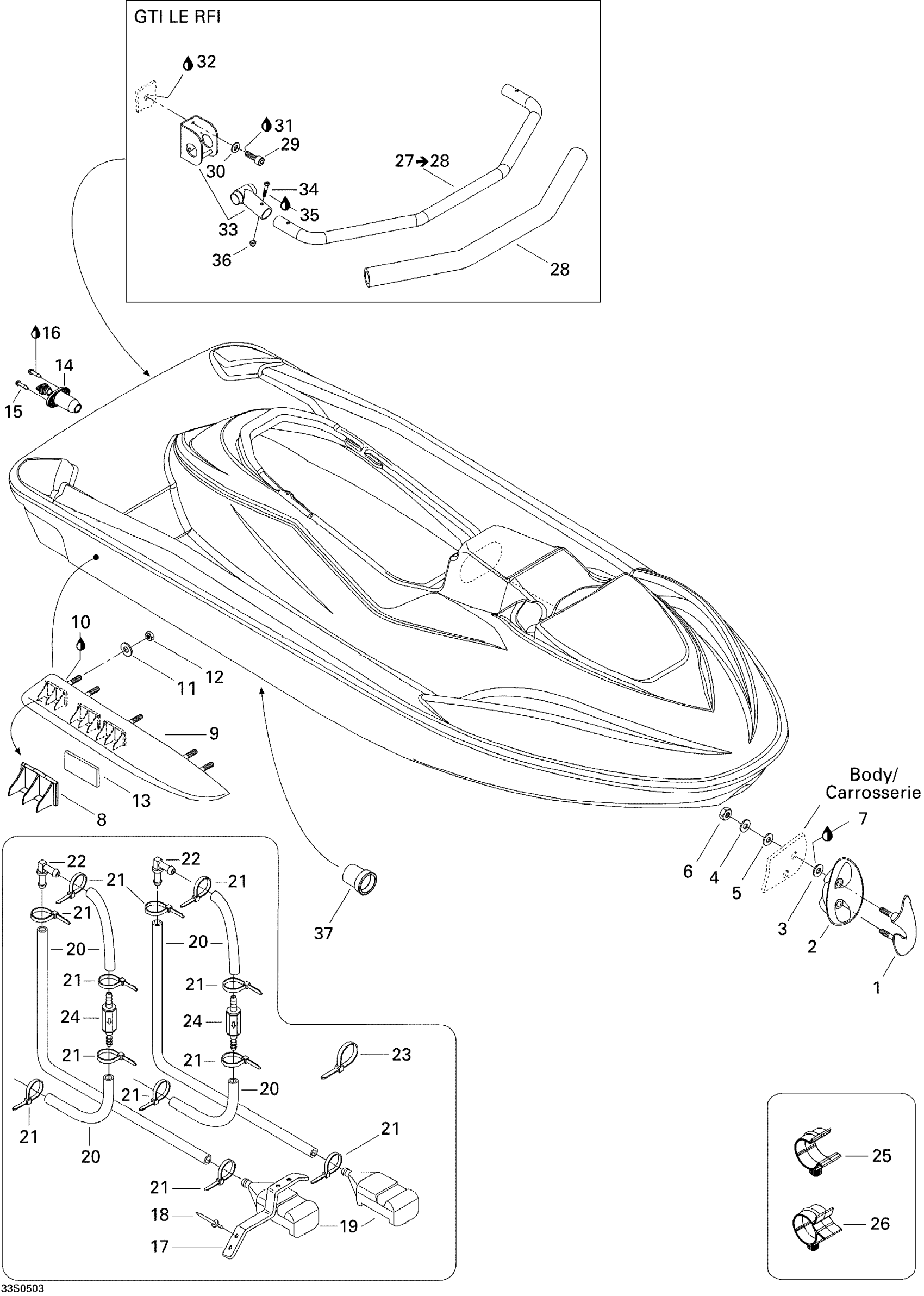

Sea-doo GTI LE RFI, 2005 Hull LE Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

250200175

$3.06

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8

232581600

$1.48

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

Insert

293450149

Unavailable

9

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

9

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Flat Washer M6

250200046

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

CUSHION - Call your local BRP dealership

292000414

Unavailable

14

Drain Plug

292001252

$36.99

15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

18

Avdel Rivet 3/16"

293150037

$0.56

19

Bailer Screen

292000688

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

23

Tie-Rap 173 mm

293750009

$1.04

24

Check Valve

276000093

Unavailable

25

Cable Retainer

275500527

$2.68

26

Retainer

275500590

$9.69

27

Ladder Tube Ass'y | LE, Includes 27 to 28

292001035

Unavailable

28

Protective Sleeve | LE

292001063

Unavailable

29

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.69

30

Stainless Flat Washer M6

234061600

$0.33

31

Silicone Sealant 51388, 300 ml

296000309

$36.99

32

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

33

STAIR SUPPORT - Call your local BRP dealership | LE

292000562

Unavailable

34

Socket Head Screw M6 X 35

205063560

$2.22

35

Loctite 243, 10 ml

293800060

$21.49

36

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

37

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
