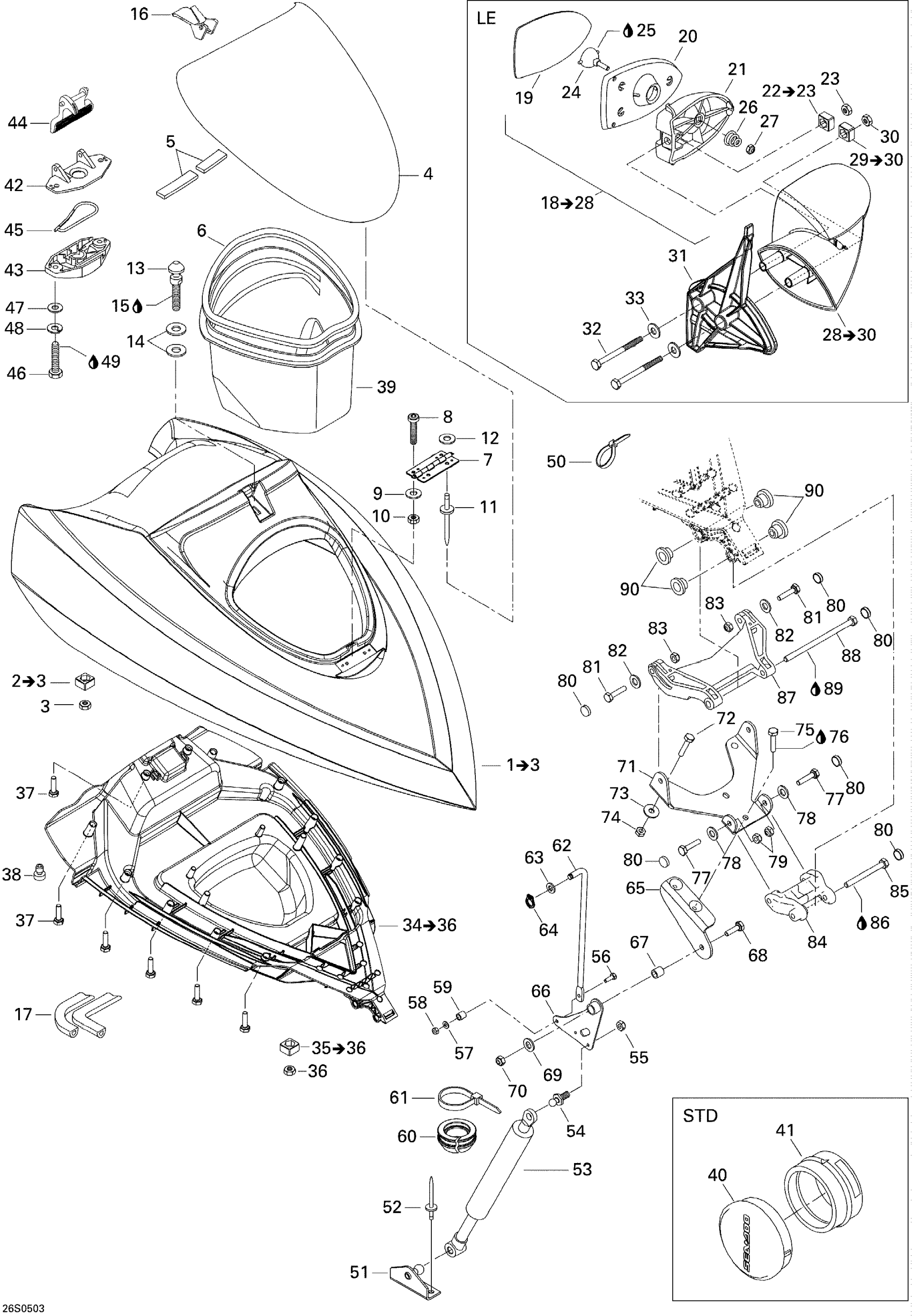

Sea-doo GTI LE RFI, 2005 Front Storage Compartment LE Diagram

#

Description
Price

1

Storage Cover Ass'y | LE, Includes 1 to 3

269501301

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

3

Hex. Nut M6

232061600

$0.91

4

Access Cover, Bright Yellow

269500337

Unavailable

5

Neoprene Seal (1PAC=3M)

219704364

$22.72

6

Was 293200017 Neoprene Seal

219704365

$118.27

7

HINGE - Call your local BRP dealership

269500338

Unavailable

8

Socket Head Screw M5 X 16

205451660

$1.04

9

Flat Washer 5 mm, Stainless

234052600

$0.64

10

Elastic Stop Nut 5 mm

232551200

$1.22

11

Pop Rivet 3/16"

204000081

$1.31

12

Flat Washer 5 mm, Stainless

234052600

$0.64

13

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.64

15

Loctite 243, 10 ml

293800060

$20.77

16

Latch

269501487

$12.97

17

Was 293200017 Neoprene Seal

219704365

$118.27

18

RH Mirror

269501328

Unavailable

18

LH Mirror Ass'y | GTI SE, Includes 12 to 20

269501337

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Mirror Frame

269501330

Unavailable

21

Housing Support

269501331

Unavailable

22

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

23

Not Available As Spare Part - Friction Washer

Unavailable

24

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

Mirror Spring

269501334

Unavailable

27

Hex. Elastic Stop Nut M6

232561600

$0.92

28

RH Shell Ass'y | LE, Includes 28 to 30

269501305

Unavailable

28

LH Shell Ass'y | LE, Includes 28 to 30

269501307

Unavailable

29

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

30

Not Available As Spare Part - Friction Washer

Unavailable

31

RH Spacer | LE

269500792

Unavailable

31

LH Spacer | LE

269500793

Unavailable

32

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

33

Flat Washer 8 mm, Stainless

234082600

$1.98

34

Lower Cover Ass'y | Includes 34 to 36

269501420

Unavailable

35

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

36

Hex. Nut M6

232061600

$0.91

37

Hex. Flange Screw K40 X 13

241141360

$0.56

38

Rubber Bumper

293830005

$5.33

39

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Latch Ass'y

269700109

$20.12

43

Latch Ass'y

269700109

$20.12

44

Latch Ass'y

269700109

$20.12

45

Latch Spring

269700017

$7.27

46

Hex. Screw M6 X 30

207063060

$1.51

47

Stainless Flat Washer M6

234061600

$0.25

48

Lock Washer Helical M6

234161601

$0.92

49

Loctite 243, 10 ml

293800060

$20.77

50

Tie Wrap 368 mm

293750008

$0.85

51

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

52

Avdel Rivet 3/16"

293150037

$0.47

53

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

54

Ball Head Stud

250300016

$11.69

55

Hex. Elastic Nut M8

232581600

$1.25

56

Hex. Screw M4 X 16 | Europe

207141660

$1.22

57

Flat Washer 4 mm, Stainless

234041600

$0.91

58

Elastic Stop Nut M4

232541600

$0.92

59

Spacer

269500841

Unavailable

60

Cable Grommet

293720063

Unavailable

61

Tie-Rap 180 mm

414115200

$0.09

62

ROD - Call your local BRP dealership

269500842

Unavailable

63

Stainless Flat Washer M6

234061600

$0.25

64

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

65

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

66

LEVER - Call your local BRP dealership

269501020

Unavailable

67

SPACER - Call your local BRP dealership

269501022

Unavailable

68

Hex. Screw M6 X 30

207163060

$1.25

69

Flat Washer M6, Stainless

234062600

$0.64

70

Hex. Elastic Stop Nut M6

232561600

$0.92

71

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

72

Hex. Forming Screw M6 X 20

207162060

$1.03

73

Flat Washer M6, Stainless

234062600

$0.64

74

Hex. Elastic Stop Nut M6

232561600

$0.92

75

Hex. Forming Screw M6 X 20

207162060

$1.03

76

Loctite 243, 10 ml

293800060

$20.77

77

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

78

Stainless Flat Washer M6

234061600

$0.25

79

Hex. Elastic Stop Nut M6

232561600

$0.92

80

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

81

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

82

Stainless Flat Washer M6

234061600

$0.25

83

Hex. Elastic Stop Nut M6

232561600

$0.92

84

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

85

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

86

Loctite 243, 10 ml

293800060

$20.77

87

REAR ARM - Call your local BRP dealership

269500705

Unavailable

88

Hex. Screw M6 X 100

230060060

$6.08

89

Loctite 243, 10 ml

293800060

$20.77

90

Sleeve

269500706

$4.30
