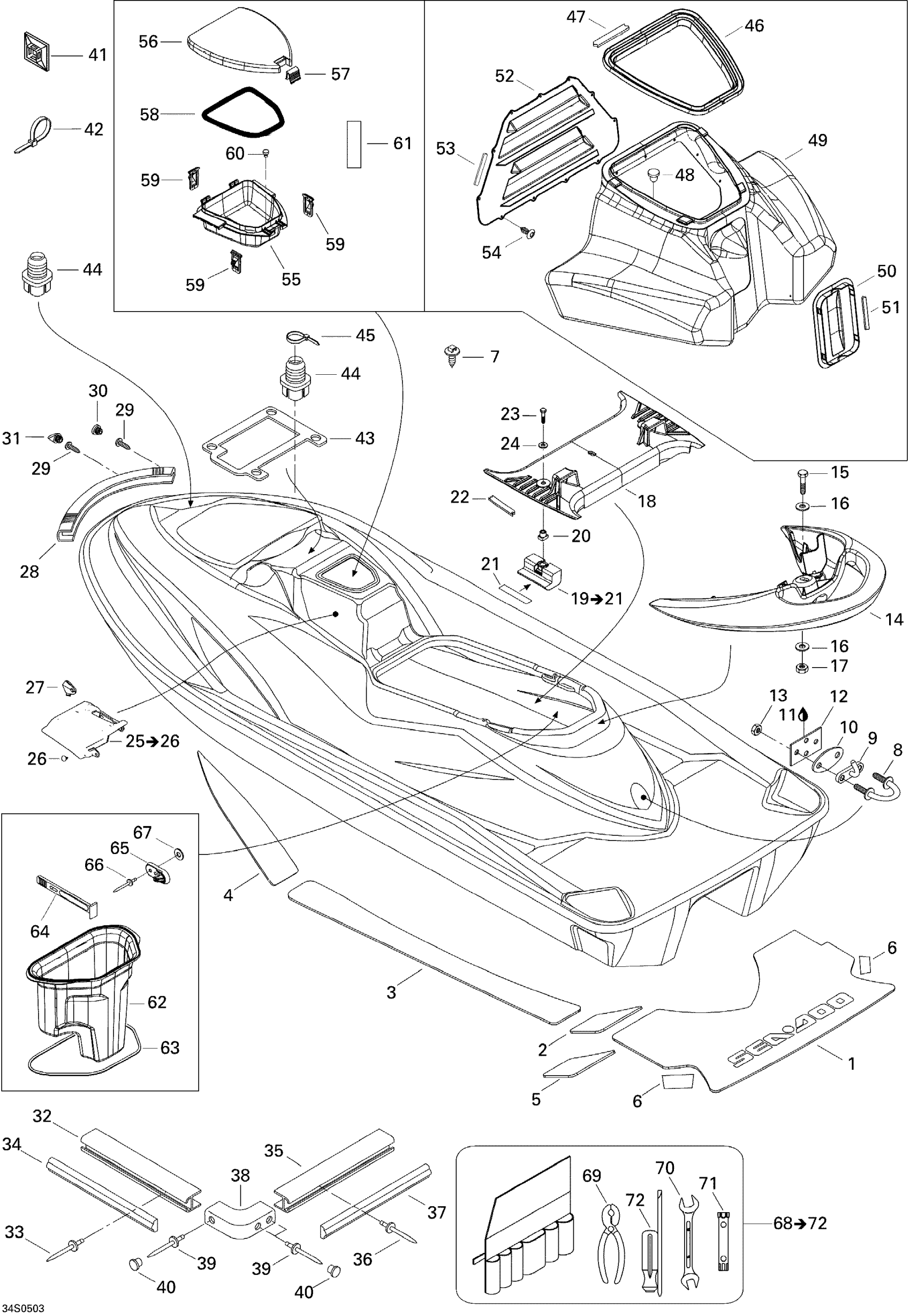

Sea-doo GTI LE RFI, 2005 09- Body LE Diagram
#
1
Rear Carpet | LE
291002193
Unavailable
2
RH Rear Carpet | LE
291002153
Unavailable
2
LH Rear Carpet | LE
291002154
Unavailable
3
RH Center Carpet, Black | LE
291002155
Unavailable
3
LH Center Carpet, Black | LE
291002156
Unavailable
4
RH Front Carpet, Black | LE
291002157
Unavailable
4
LH Front Carpet, Black | LE
291002158
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Anti-skid, Black
291001919
Unavailable
7
Mount Dart
293730040
$1.04
8
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
9
Hook | Package LTD
291002351
$69.99
10
Black, Finition Plate
291001386
$10.99
11
Silicone Sealant 51388, 300 ml
296000309
$36.99
12
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
13
Hex. Elastic Nut M8
232581600
$1.48
14
GRAB HANDLE - Call your local BRP dealership
269000812
Unavailable
15
Hex. Screw M8 X 45
207084560
$3.38
16
Stainless, Flat Washer 8 mm
234081600
$0.55
17
Hex. Elastic Nut M8
232581600
$1.48
18
Upper Bridge
291001854
Unavailable
19
Link Bridge Ass'y
291001931
$26.99
20
Square Nut M8
211100033
$17.99
21
Pad
291001932
$10.99
22
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
23
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
24
Flat Washer 8 mm, Stainless
234082600
$2.43
25
RH Grill Ass’Y | Includes 25 to 26
291001649
Unavailable
25
LH GRILL ASSY - Call your local BRP dealership | Includes 25 to 26
291001650
Unavailable
26
Black Dart
293730010
$0.99
27
Not Available As Spare Parts
XXX
Unavailable
28
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
29
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
30
Bumper Plug, Black
291001519
$5.49
31
Bumper Plug, Black
291001040
$7.39
32
Black, Side Bumper
204050270
$179.99
33
Pop Rivet 3/16"
293150005
$0.52
34
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
35
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
36
Pop Rivet 3/16"
293150005
$0.52
37
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
38
Bumper Corner
291002244
$48.99
39
Pop Rivet 3/16"
293150013
$1.37
40
Bumper Plug, Black
291000339
$2.99
41
Tie-Rap Mount
293750025
$1.25
42
Tie-Rap 180 mm
414115200
$0.11
43
GASKET - Call your local BRP dealership
293250171
Unavailable
44
GROMMET - Call your local BRP dealership
293720042
Unavailable
45
Tie-Rap 180 mm
414115200
$0.11
46
Cover Trim
269501129
Unavailable
47
Was 293200017 Neoprene Seal
219704365
$149.99
48
Black Plug
291000279
$7.69
49
Not Available As Spare Part - Friction Washer
Unavailable
50
Front Door
291001744
Unavailable
51
Gasket, Neoprene 2000Mm Long
219704476
$15.36
52
Rear Door
291001631
Unavailable
53
Gasket, Neoprene 2000Mm Long
219704476
$15.36
54
Tuflok Plastic Rivet
293150230
$1.47
55
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
56
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
57
LATCH - Call your local BRP dealership
269500719
Unavailable
58
GASKET - Call your local BRP dealership
293250100
Unavailable
59
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
60
Rubber Bumper
293830005
$8.09
61
Was 293250099 Gasket
219704377
$7.20
62
Rear Tray
269500990
Unavailable
63
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
64
Strap
269502417
$17.69
65
Hook
269500521
$9.09
66
Pop Rivet 3/16"
293150039
$1.49
67
Flat Washer 5 mm, Stainless
234052600
$0.77
68
Owner Tool Kit Ass'y | Includes 68 to 72
294000680
Unavailable
69
Not Available As Spare Part - Friction Washer
Unavailable
70
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
72
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
