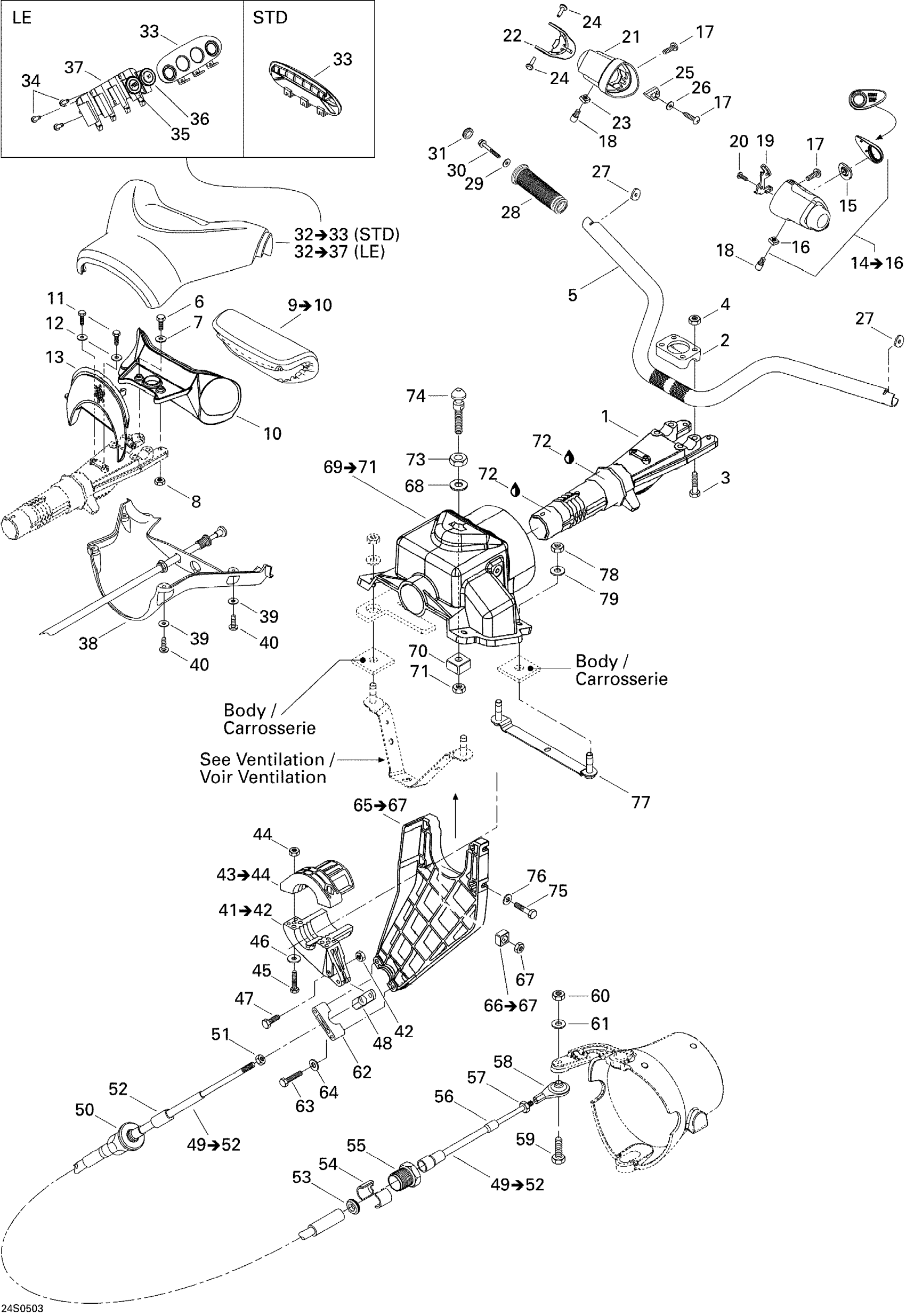

Sea-doo GTI LE RFI, 2005 Steering System LE Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

HANDLE BAR - Call your local BRP dealership

277001450

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.89

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Bright Yellow, Handlebar Pad | Includes 9 to 10

277001366

Unavailable

10

Handle Bar Pad Support

277000687

Unavailable

11

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

PLATE - Call your local BRP dealership

277000549

Unavailable

14

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

15

Switch Knob

277000306

Unavailable

16

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

17

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

18

Socket Head Screw M6 X 16

250000036

$9.00

19

Retainer Plate

277000845

Unavailable

20

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

INSERT - Call your local BRP dealership

293450153

Unavailable

26

Flat Washer M5, Stainless

234051600

$0.77

27

Insert Grip Handle

277001863

$8.83

28

Handle Grip, Slate Grey

277001336

$19.49

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

31

Black, Cap

277000203

$9.39

32

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

33

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

34

Screw K40 X 10

241140060

$1.48

35

MODE KNOB - Call your local BRP dealership | LE

293000099

Unavailable

36

MODE KNOB - Call your local BRP dealership | LE

293000099

Unavailable

37

Switch Support | LE

277000563

Unavailable

38

Lower Steering Cover

277000808

Unavailable

39

Flat Washer M5, Stainless

234051600

$0.77

40

Hex. Flange Screw K40 X 16

241141660

$1.48

41

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

42

Hex. Elastic Stop Nut M6

232561600

$1.15

43

Arm Thrust | Includes 43 to 44

277000519

Unavailable

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Hex. Screw M6 X 25

207162560

$1.47

46

Flat Washer M6, Stainless

234062600

$0.77

47

Hex. Screw M6 X 30

211000081

$3.59

48

Ball Joint

277001180

$35.99

49

Steering Cable | Includes 38 to 42

277001580

$201.49

50

Ajustment Knob

277000782

$22.99

51

Hex. Nut 1/4"-28

211100056

$0.69

52

Terminal Wiper

277000441

$11.99

53

Rubber Washer

293830063

$1.90

54

Half Ring

277001527

$10.37

55

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

56

Terminal Wiper

277000441

$11.99

57

Hex. Nut 1/4"-28

211100056

$0.69

58

Ball Joint

277000775

$51.99

59

Hex. Screw M6 X 35

207063560

$2.22

60

Hex. Elastic Stop Nut M6

232561600

$1.15

61

Stainless Flat Washer M6

234061600

$0.33

62

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

63

Hex. Screw M6 X 50

207065060

$2.22

64

Stainless Flat Washer M6

234061600

$0.33

65

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

66

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

67

Hex. Nut M6

232061600

$1.15

68

Flat Washer 10 mm, Stainless

234002600

$2.22

69

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

70

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

71

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

72

Synthetic Grease, 400 G

293550010

Unavailable

73

Hex. Jam Nut M10

232100600

$2.22

74

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

75

Hex. Forming Screw M6 X 20

207162060

$1.29

76

Stainless Flat Washer M6

234061600

$0.33

77

Steering Support

277001000

Unavailable

78

Hex. Elastic Nut M8

232581600

$1.48

79

Stainless, Flat Washer 8 mm

234081600

$0.55
