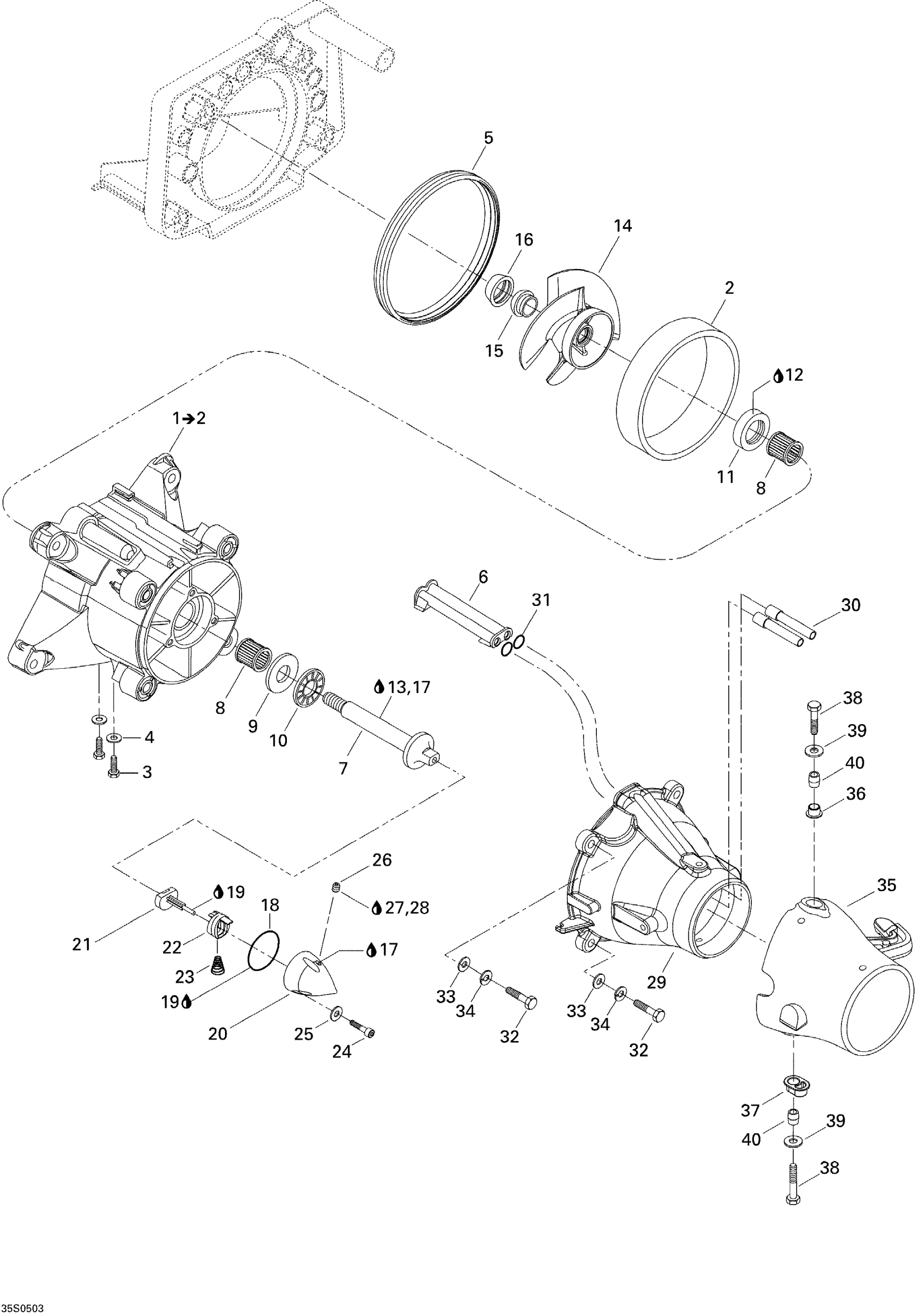

Sea-doo GTI LE RFI, 2005 Pump Diagram

#

Description
Price

1

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

2

Wear Ring

271000653

$58.49

3

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

4

Flat Washer M5, Stainless

234051600

$0.77

5

Neoprene Seal

293200087

$12.63

6

Water Outlet

271000785

$3.80

7

Impeller Shaft

271000965

$116.49

8

Needle Bearing

293350017

$27.99

9

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

10

Thrust-Bearing

293350022

$45.99

11

Oil Seal

267000094

$22.49

12

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

13

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

14

Stainless Impeller

271001496

Unavailable

15

Impeller Boot

271000516

$9.59

16

Impeller Ring

271000517

$9.59

17

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

18

O-Ring

293300011

$8.64

19

Synthetic Grease, 400 G

293550010

Unavailable

20

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

21

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

22

SLIDER - Call your local BRP dealership

271001107

Unavailable

23

SPRING - Call your local BRP dealership

271001108

Unavailable

24

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

25

Stainless Flat Washer M6

234061600

$0.33

26

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

27

Was 293800013 Loctite 56765

219704454

$65.99

28

Was 293800041 Loctite Primer 7649

219704458

$39.99

29

Venturi, Black

271001466

Unavailable

30

Siphon Tube

271001133

$10.99

31

O-Ring

293300013

$8.18

32

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Lock Washer 8 mm, Stainless

234181601

$0.55

35

Steering Nozzle, Black

271001469

Unavailable

36

Venturi Bushing

293900001

$7.62

37

Plastic Bushing

293900010

$9.59

38

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

39

Flat Washer M8.5 x 18

293050001

$3.07

40

Sleeve

271001816

$14.99
