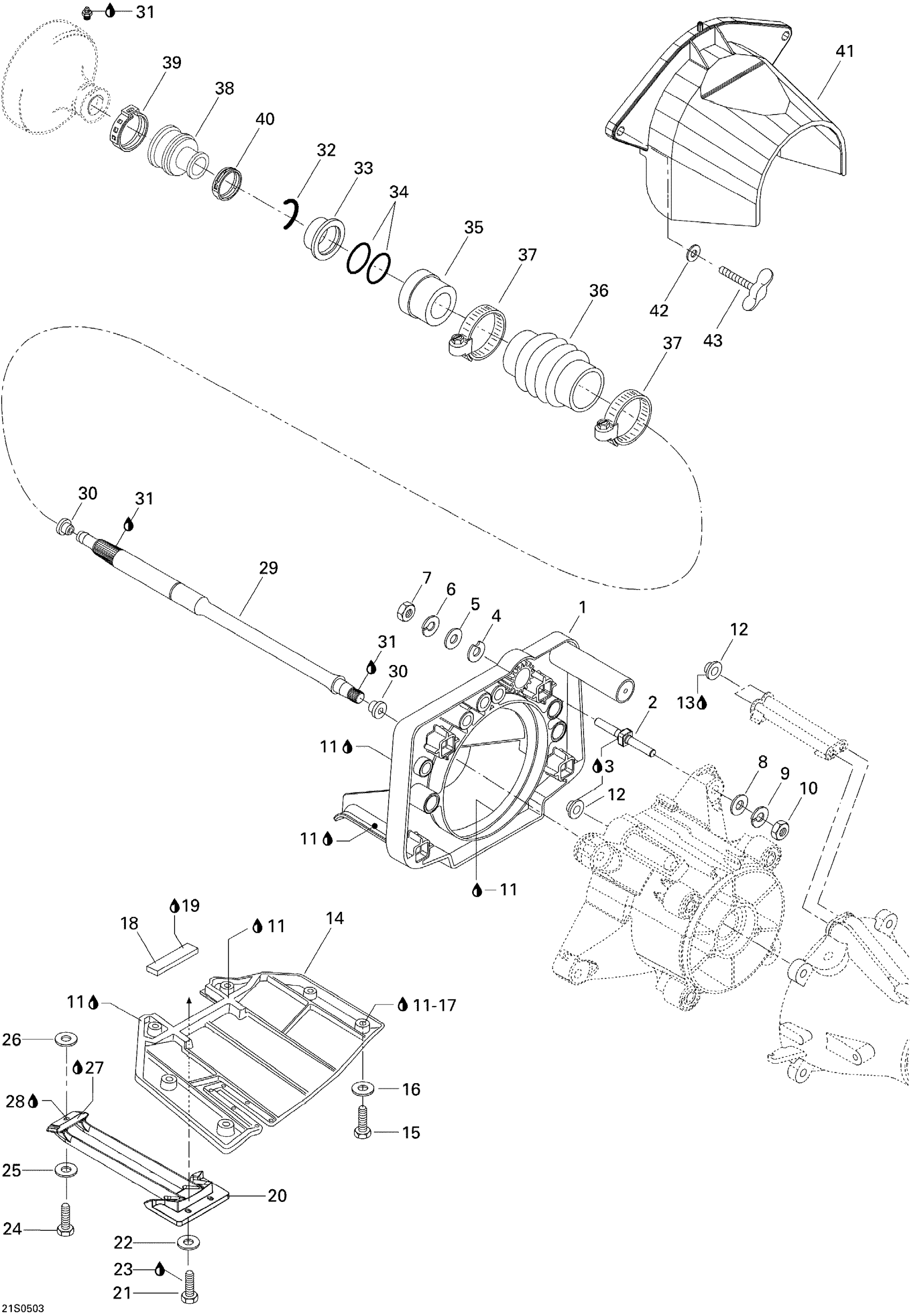

Sea-doo GTI LE RFI, 2005 05- Propulsion LE Diagram

#

Description
Price

1

Pump Support | LE

271001151

Unavailable

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

$2.22

9

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

10

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

12

Watertight Seal

293250084

$7.49

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

14

RIDING PLATE, BLACK - Call your local BRP dealership | STD

271001472

Unavailable

15

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

16

Stainless, Flat Washer 8 mm

234081600

$0.55

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

Neoprene Seal (1PAC=3M)

219704364

$27.49

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

20

Pump Grate, Black

271001455

Unavailable

21

Hex. Screw M6 X 16

207161660

$1.59

22

Stainless Flat Washer M6

234061600

$0.33

23

Loctite 271, 10 ml

293800005

$26.99

24

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

25

Stainless, Flat Washer 8 mm

234081600

$0.55

26

Flat Washer 10 mm, Stainless

234001600

$1.15

27

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

Drive Shaft

272000096

Unavailable

30

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

31

Synthetic Grease, 400 G

293550010

Unavailable

32

C-CLIP - Call your local BRP dealership

272000135

Unavailable

33

Support Ring

272000064

$66.49

34

O-Ring

293300032

$6.03

35

Carbon Ring

272000770

$45.99

36

BELLOWS - Call your local BRP dealership

272000184

$27.99

37

Norma Clamp

293650075

$11.06

38

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

39

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

40

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

41

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

42

Flat Washer 8 mm, Stainless

234082600

$2.43

43

Wing Nut M8

232681100

$2.19
