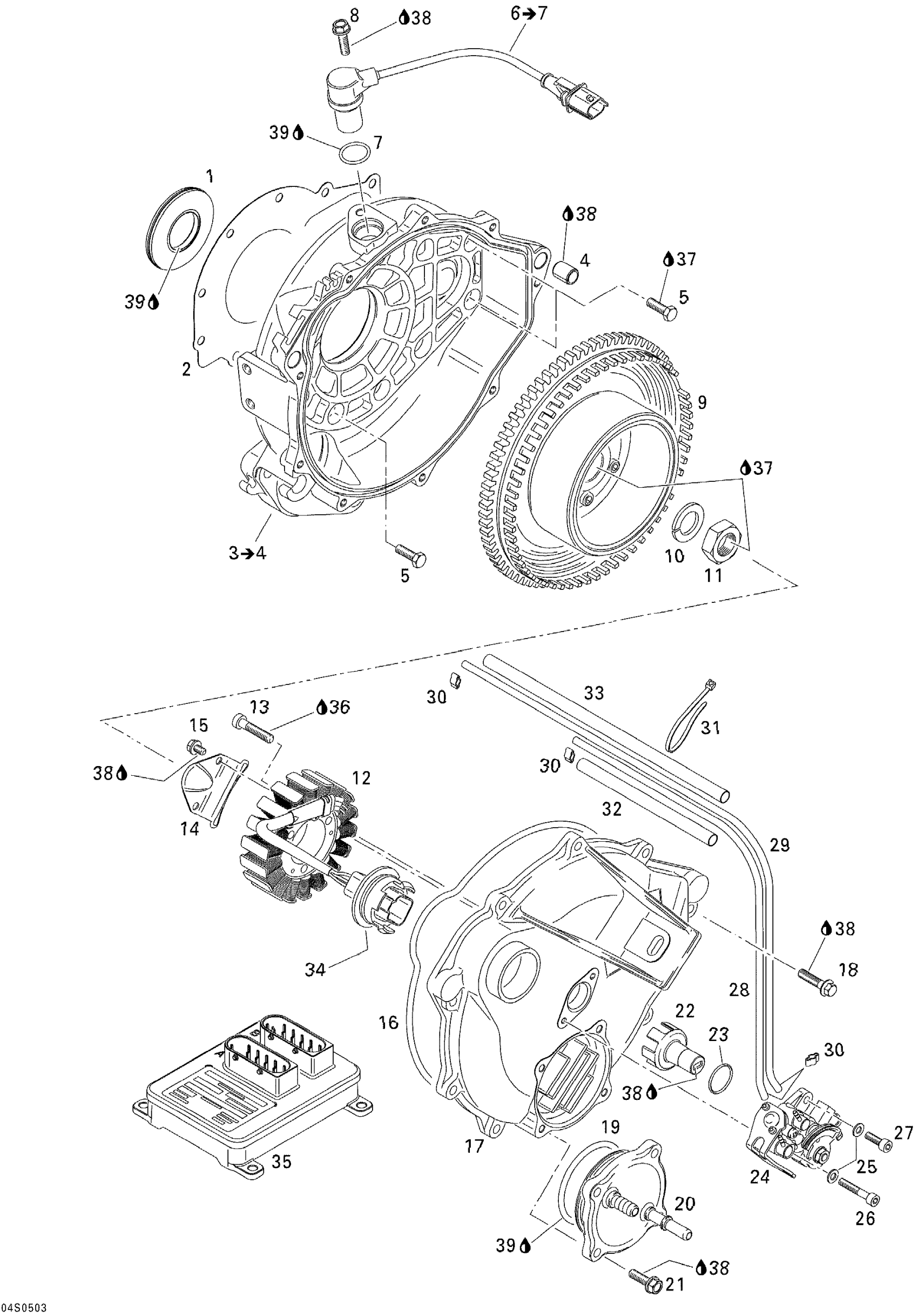

Sea-doo GTI LE RFI, 2005 Magneto And Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

$13.62

2

GASKET - Call your local BRP dealership

420931470

$10.13

3

IGNITION HOUSING, BLACK - Call your local BRP dealership

420811012

$233.82

4

Dowel Tube

420229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.56

6

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Forming Screw M6 X 16

210361660

Unavailable

9

TRIGGER WHEEL - Call your local BRP dealership

420665230

$556.12

10

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

$1.60

11

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

12

STATOR PLATE ASS'Y - Call your local BRP dealership

420887951

Unavailable

13

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

Unavailable

14

Holding Strip

420851400

Unavailable

15

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

$1.18

16

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

17

IGNITION COVER, BLACK - Call your local BRP dealership

420811024

Unavailable

18

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

$5.35

19

O-RING - Call your local BRP dealership

420850390

$9.89

20

WATERCHANNEL COVER - Call your local BRP dealership

420811220

Unavailable

21

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

$10.17

22

OIL PUMP SHAFT - Call your local BRP dealership

420837392

$18.43

23

O-RING - Call your local BRP dealership

293300018

Unavailable

24

OIL PUMP ASS'Y, BLACK - Call your local BRP dealership

420891170

Unavailable

25

LOCK WASHER 5 MM - Call your local BRP dealership

420845389

$6.89

26

Socket Head Screw M5 X 30

420940883

Unavailable

27

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

$1.60

28

Oil Hose 1500Mm Long

219704404

$13.62

29

Oil Hose 1500Mm Long

219704404

$13.62

30

Clamp

420256408

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Isolating Tube

420860505

Unavailable

33

Isolating Tube

420860504

Unavailable

34

ADAPTOR ASS'Y - Call your local BRP dealership

420966525

$36.89

35

ECM, Engine Control Module

420665226

Unavailable

36

Loctite 243, 10 ml

293800060

$20.77

37

Loctite 243, 10 ml

293800060

$20.77

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

Dow Corning 111, 150 g

413707000

$57.82
