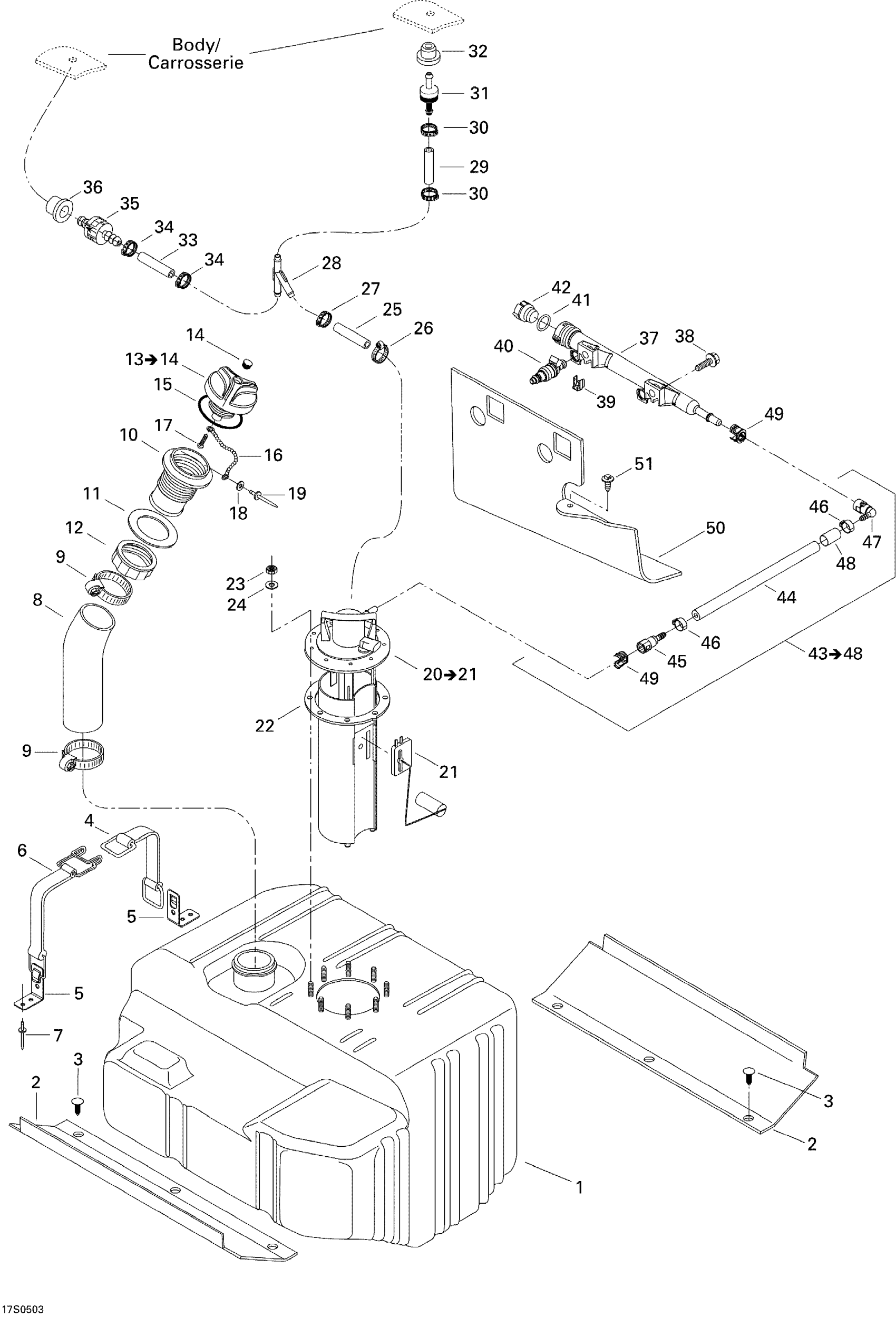

Sea-doo GTI LE RFI, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500427

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730006

$1.49

4

Fuel Tank Strap

293850036

$18.99

5

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

6

Fuel Tank Strap

293850094

$22.49

7

Avdel Rivet 3/16"

293150037

$1.49

8

Filler Neck Hose

275500647

Unavailable

9

Tridon Clamp

293650023

$13.99

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$15.49

12

Filler Neck Nut, Fuel

211100012

$14.49

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

14

Black, Snap Cap

293000034

$9.59

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.49

18

Flat Washer M3, Stainless

234032600

$1.49

19

Pop Rivet 1/8"

390407900

$1.49

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

21

Sensor Level

270600012

Unavailable

22

Gasket

293250088

$15.49

23

Elastic Stop Nut 5 mm

232551200

$1.49

24

Flat Washer 5 mm, Stainless

234052400

$2.89

25

Was 275500549 Hose 1/4"

219704357

$199.99

26

Tridon Gear Clamp

293650170

$2.00

27

Oetiker Gear Clamp

293650025

$3.19

28

Y-Fitting

293710059

$9.89

29

Was 275500549 Hose 1/4"

219704357

$199.99

30

Oetiker Gear Clamp

293650025

$3.19

31

Check Valve

275500398

$11.49

32

Grommet

293720029

$1.69

33

Was 275500549 Hose 1/4"

219704357

$199.99

34

Oetiker Gear Clamp

293650025

$3.19

35

Check Valve

275500505

$32.99

36

Grommet

293720029

$1.69

37

FUEL RAIL ASSY - Call your local BRP dealership

270600007

Unavailable

38

Flanged Hex. Screw M6 X 25, Scotch

207562560

$1.49

39

Circlip

270600094

Unavailable

40

Injector

270600095

Unavailable

41

O-RING - Call your local BRP dealership

293300042

Unavailable

42

CAP - Call your local BRP dealership

270600009

Unavailable

43

Hose Ass'y | Includes Items 43 to 48

275500651

Unavailable

44

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

45

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

46

Oetiker Clamp

293650011

$3.19

47

Shrink Tubing

276000132

Unavailable

48

Bleed Valve

293710104

Unavailable

49

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

50

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

51

Mount Dart

293730040

$1.49
