Partiron

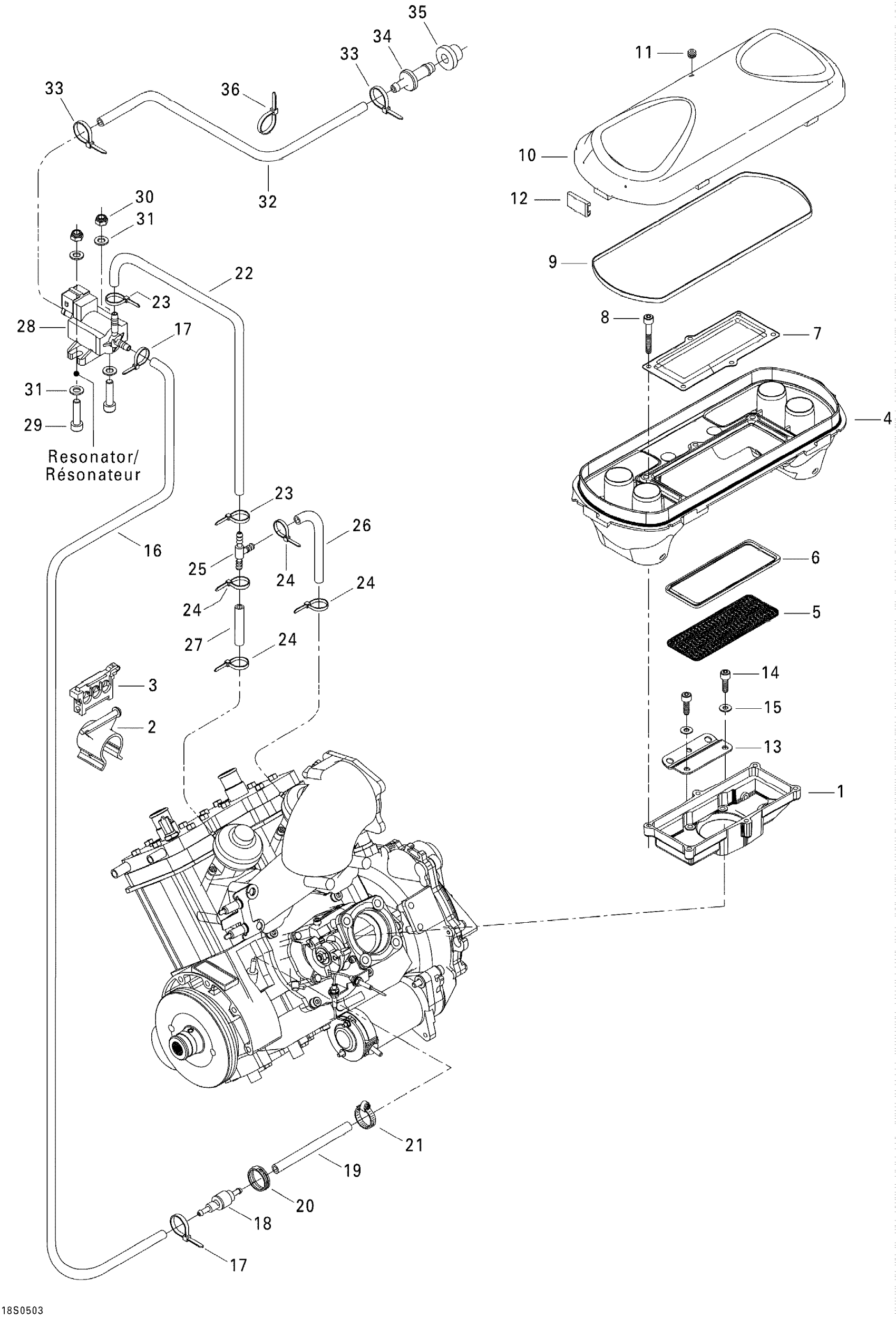

Sea-doo GTI LE RFI, 2005 Air Intake Diagram

#

Description
Price

1

Arrest Housing, Black

273000226

Unavailable

2

Wire Support

278001597

Unavailable

3

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

4

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

5

Flame Arrester

273000118

Unavailable

6

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

7

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

8

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

9

GASKET - Call your local BRP dealership

293250023

Unavailable

10

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

11

Rubber Bumper

293830005

$8.09

12

Retainer Clip

273000006

Unavailable

13

SUPPORT - Call your local BRP dealership

270000565

Unavailable

14

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

15

Stainless Flat Washer M6

234061600

$0.33

16

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

19

Was 275500549 Hose 1/4"

219704357

$194.99

20

Oetiker Gear Clamp

293650025

$3.09

21

Tridon Gear Clamp

293650170

$1.99

22

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

T-Fitting

293710068

$8.29

26

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

27

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

28

Solenoid Valve

270600005

$116.49

29

Socket Head Screw M5 X 20

205052060

Unavailable

30

Hex. Elastic Nut M5 | X

232551600

$1.15

31

Flat Washer | XT

211200035

$0.55

32

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

33

Tie Wrap 94 mm | 4X4

293750001

$1.03

34

Fitting

293700031

Unavailable

35

Grommet

293720029

$1.59

36

Tie Wrap 368 mm

293750008

$1.04
