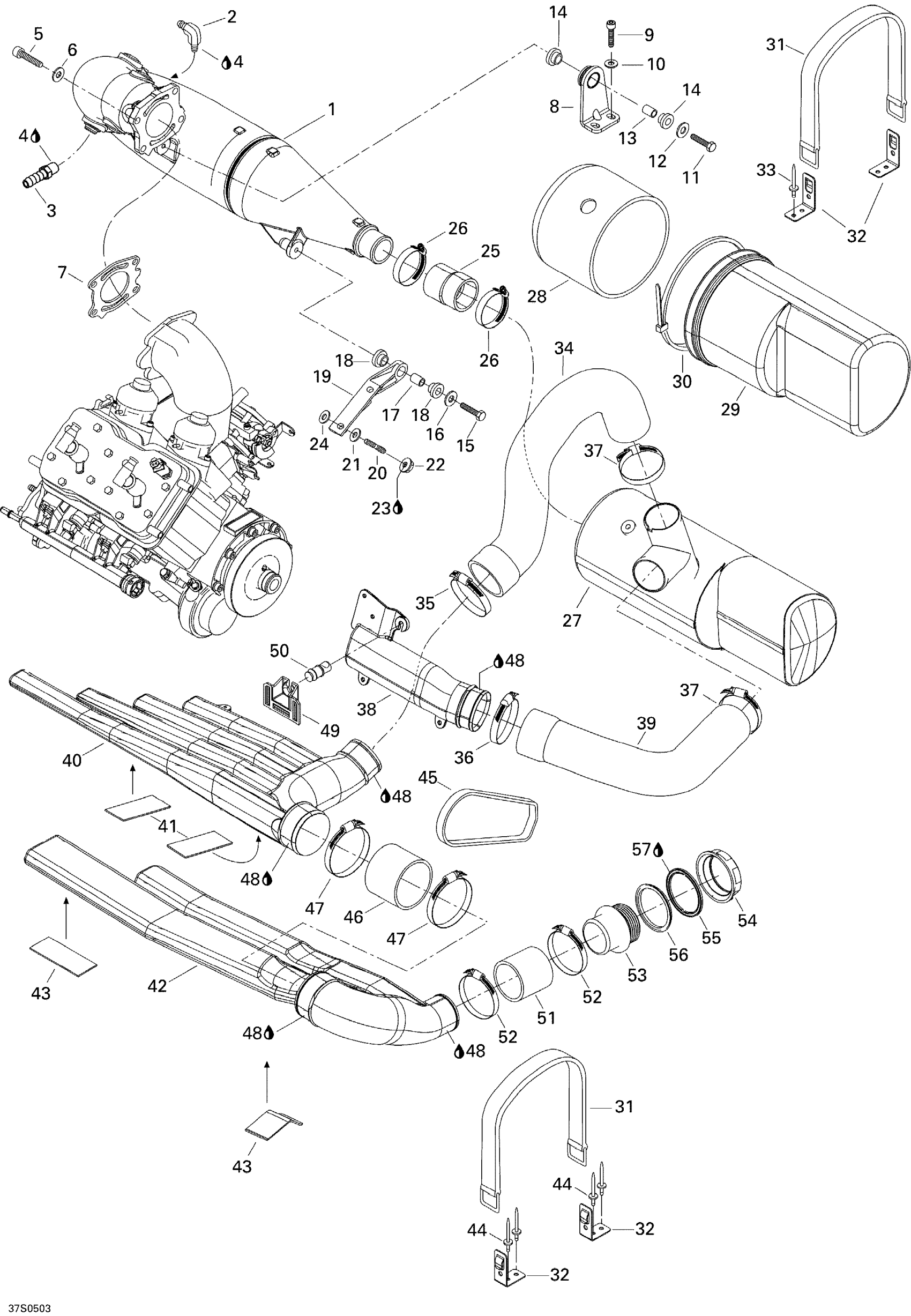

Sea-doo GTI LE RFI, 2005 01- Exhaust System Diagram

#

Description
Price

1

Head Pipe

274001098

Unavailable

2

Elbow Fitting 90°

293710018

Unavailable

3

Male Connector | With Catalyst

293710021

$14.23

4

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

5

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

6

Flat Washer 10 mm, Stainless

234001600

$1.15

7

EXHAUST GASKET - Call your local BRP dealership

420931503

Unavailable

8

Pipe Support

274001104

Unavailable

9

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

10

Flat Washer M8.5 x 18

293050001

$3.07

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Bushing

274000254

$13.17

14

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

15

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Bushing

274000254

$13.17

18

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

19

SUPPORT PIPE - Call your local BRP dealership

274000759

Unavailable

20

Stud M10 X 60

250300007

Unavailable

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

Hex. Flange Nut M10

233101600

$5.29

23

Loctite 243, 10 ml

293800060

$21.49

24

Flat Washer 10 mm, Stainless

234002600

$2.22

25

Exhaust Hose

274000170

Unavailable

26

Tridon Clamp

293650023

$13.49

27

Muffler

274001022

Unavailable

28

Front MÙffler Cover

274000790

Unavailable

29

Rear Muffler Cover

274000793

Unavailable

30

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

31

Fuel Tank Strap

293850036

$18.99

32

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

33

Avdel Rivet 3/16"

293150037

$0.56

34

EXHAUST HOSE - Call your local BRP dealership

274001028

Unavailable

35

Tridon Clamp

293650179

$11.49

36

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

37

Tridon Clamp

293650064

$8.29

38

Resonator

274001018

Unavailable

39

EXHAUST HOSE - Call your local BRP dealership

274001019

Unavailable

40

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

41

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

42

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

43

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

44

Avdel Rivet 3/16"

293150037

$0.56

45

Rubber Strip

293830034

Unavailable

46

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

47

Tridon Clamp

204000079

$9.99

48

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

49

Pad Support

291001352

Unavailable

50

RUBBER PAD - Call your local BRP dealership

293830062

Unavailable

51

Exhaust Hose

274000616

Unavailable

52

Tridon Clamp

293650064

$8.29

53

Exhaust Hose, Outlet

274001391

$29.49

54

Nut 72 mm

274000224

$16.34

55

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

56

GASKET - Call your local BRP dealership

293250041

Unavailable

57

Silicone Sealant 51388, 300 ml

296000309

$36.99
