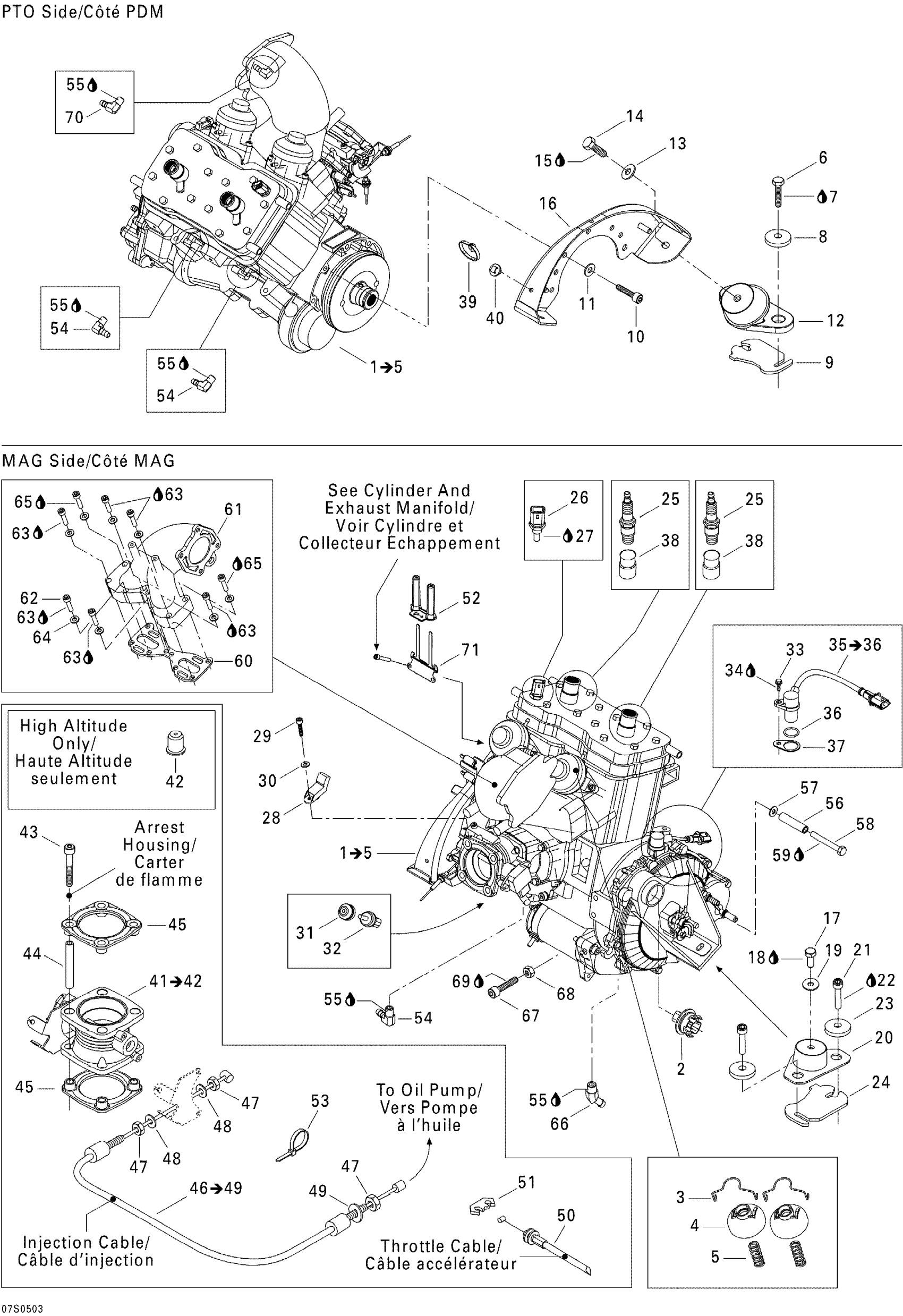

Sea-doo GTI LE RFI, 2005 Engine Diagram

#

Description
Price

1

Rotax Engine 787 SDI | Includes 1 to 5

270000647

Unavailable

2

ADAPTOR ASS'Y - Call your local BRP dealership

420966525

$36.89

3

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

4

COMPRESSION SPRING - Call your local BRP dealership

420939137

Unavailable

5

Valve Cover This part replaces 420911558.

420911559

$24.02

6

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

7

Loctite 243, 10 ml

293800060

$20.77

8

Cone Washer

250200018

$4.64

9

Shim 1.3 mm

270000762

$9.04

10

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

11

Stainless, Flat Washer 8 mm

234081600

$0.46

12

Engine Support Ass'y

270001081

$84.47

13

Flat Washer 8 mm, Stainless

234082600

$1.98

14

Hex. Screw M8 X 16

207181660

Unavailable

15

Loctite 243, 10 ml

293800060

$20.77

16

Engine Support

270000584

Unavailable

17

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

18

Loctite 243, 10 ml

293800060

$20.77

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

RUBBER MOUNT - Call your local BRP dealership

270000588

$57.66

21

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

22

Loctite 243, 10 ml

293800060

$20.77

23

Cone Washer

250200018

$4.64

24

Shim 1.3 mm

270000762

$9.04

25

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.03

26

Temperature Sensor

278002895

$31.82

27

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

28

Pressure Sensor

270600040

$157.92

29

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.54

30

Stainless Flat Washer M6

234061600

$0.25

31

INSULATOR - Call your local BRP dealership

278001054

$8.43

32

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

33

Hex. Forming Screw M6 X 16

210361660

Unavailable

34

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

35

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Shim

270000661

Unavailable

38

PROTECTOR CAP - Call your local BRP dealership

278001380

$13.05

39

Tie-Rap 180 mm

414115200

$0.09

40

Mount Dart

293730040

$0.86

41

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 37 to 38

270600092

Unavailable

42

Cap, High Altitude

270600097

Unavailable

43

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

44

SPACER TUBE - Call your local BRP dealership

275500352

$10.74

45

GASKET - Call your local BRP dealership

293250071

Unavailable

46

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

$53.82

47

Hex. Nut M6

232160600

$1.08

48

Stainless Flat Washer M6

234061600

$0.25

49

Lock Washer Helical M6

234161601

$0.92

50

THROTTLE CABLE - Call your local BRP dealership

277000847

$73.05

51

TAB LOCK - Call your local BRP dealership

277000279

$6.89

52

INSULATOR - Call your local BRP dealership

278001512

$7.89

53

Tie Wrap 142 mm

293750002

$0.88

54

Elbow Fitting

293700016

Unavailable

55

Was 293800013 Loctite 56765

219704454

$65.35

56

Spacer Tube

275500640

Unavailable

57

Stainless Flat Washer M6

234061600

$0.25

58

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

$3.31

59

Loctite 243, 10 ml

293800060

$20.77

60

Gasket This part replaces 290931480.

420931481

Unavailable

61

Exhaust Manifold, Black

420979483

Unavailable

62

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

63

Loctite 243, 10 ml

293800060

$20.77

64

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

65

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

66

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

$14.37

67

Socket Screw M10 X 30

205003060

Unavailable

68

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

69

Loctite 271, 10 ml

293800005

$20.77

70

Elbow Fitting 90°

293710018

Unavailable

71

GROUND PLATE - Call your local BRP dealership

278001662

$18.43

72

Position Sensor

420866120

$77.97

73

Not Available As Spare Part - Friction Washer

Unavailable
