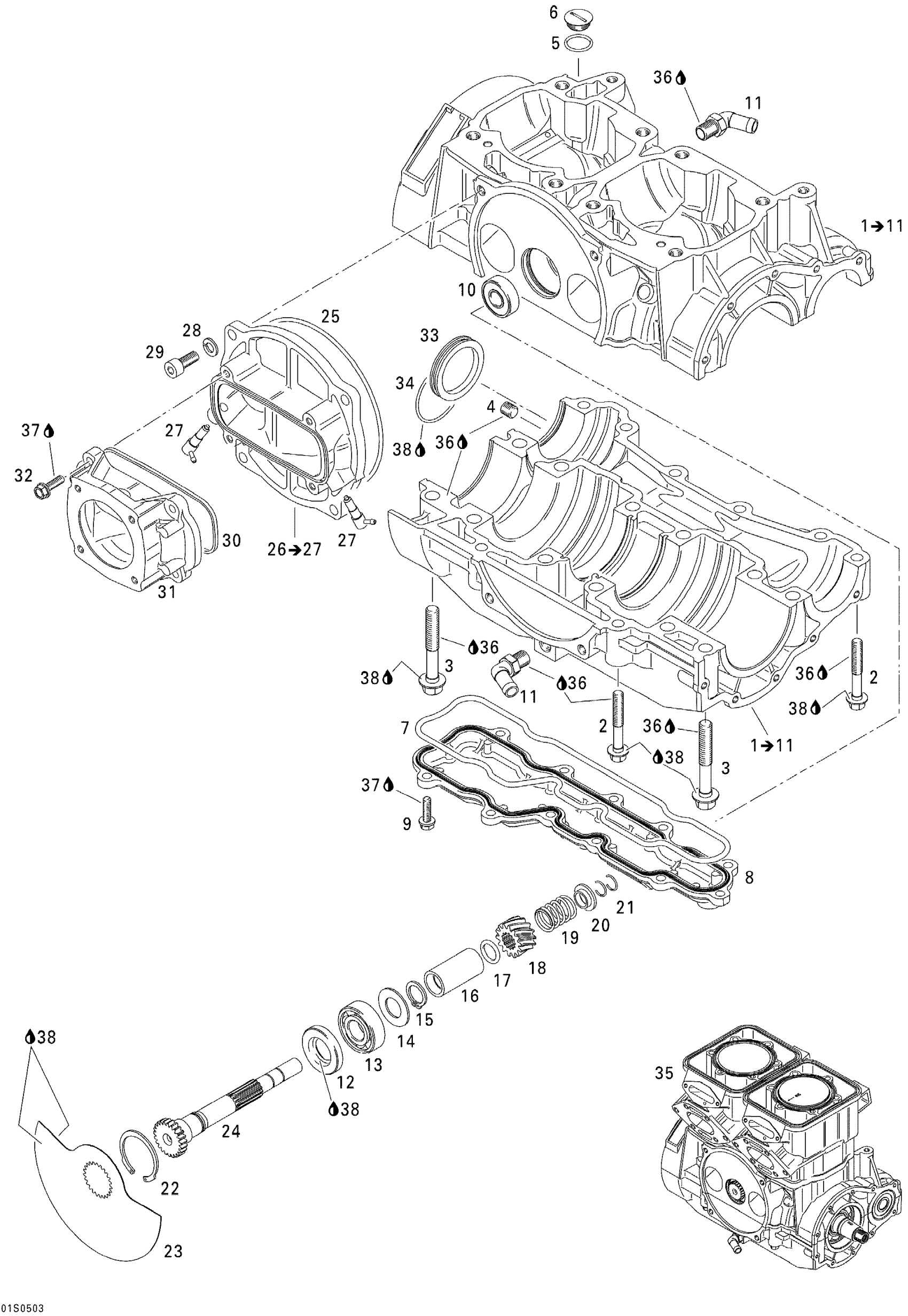

Sea-doo GTI LE RFI, 2005 Crankcase And Rotary Valve Diagram

#

Description
Price

1

CRANKCASE 787 ASS'Y, SILVER - Call your local BRP dealership | Includes 1 to 11

420891140

Unavailable

2

HEX. FLANGED SCREW M8 X 55 - Call your local BRP dealership

420240328

$12.45

3

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

$15.66

4

DRAIN PLUG 1/8 - Call your local BRP dealership

420240483

$8.43

5

O-Ring

420250890

$2.50

6

Drain Plug

420241801

$6.11

7

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

8

WATERCHANNEL COVER 787, BLACK - Call your local BRP dealership

420811237

Unavailable

9

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

$10.17

10

Ball Bearing

420932797

$14.92

11

Angular Tube, 90°

420922247

Unavailable

24

ROTARY VALVE SHAFT - Call your local BRP dealership

420837352

$116.89

12

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

13

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

14

SHIM - Call your local BRP dealership

420227439

Unavailable

15

SNAP RING - Call your local BRP dealership

420845450

$1.26

16

DISTANCE SLEEVE - Call your local BRP dealership

420847287

$19.97

17

O-Ring

293300024

$7.05

18

Sprocket 14Th This part replaces 420935735.

420935736

$72.77

19

SPRING - Call your local BRP dealership

420938810

$9.15

20

SPRING SEAT - Call your local BRP dealership

420827430

$6.95

21

CIRCLIP - Call your local BRP dealership

420845160

$1.25

22

Lock Ring

420945880

$3.61

23

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

25

O-RING - Call your local BRP dealership

420831767

Unavailable

26

ROTARY VALVE COVER - Call your local BRP dealership | Includes 26 to 27

420811037

Unavailable

27

Check Valve

420956511

$28.57

28

Lock Spring Washer 8 mm, Stainless

234180602

$1.12

29

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

$1.74

30

RUBBER RING - Call your local BRP dealership

420850520

$9.20

31

Intake Manifold

420867822

Unavailable

32

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

$6.12

33

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

34

O-RING - Call your local BRP dealership

420230300

$6.85

35

Short Block 787, Black

420078707

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Dow Corning 111, 150 g

413707000

$57.82
