- GTI LE RFI, 2005
01- Cooling System

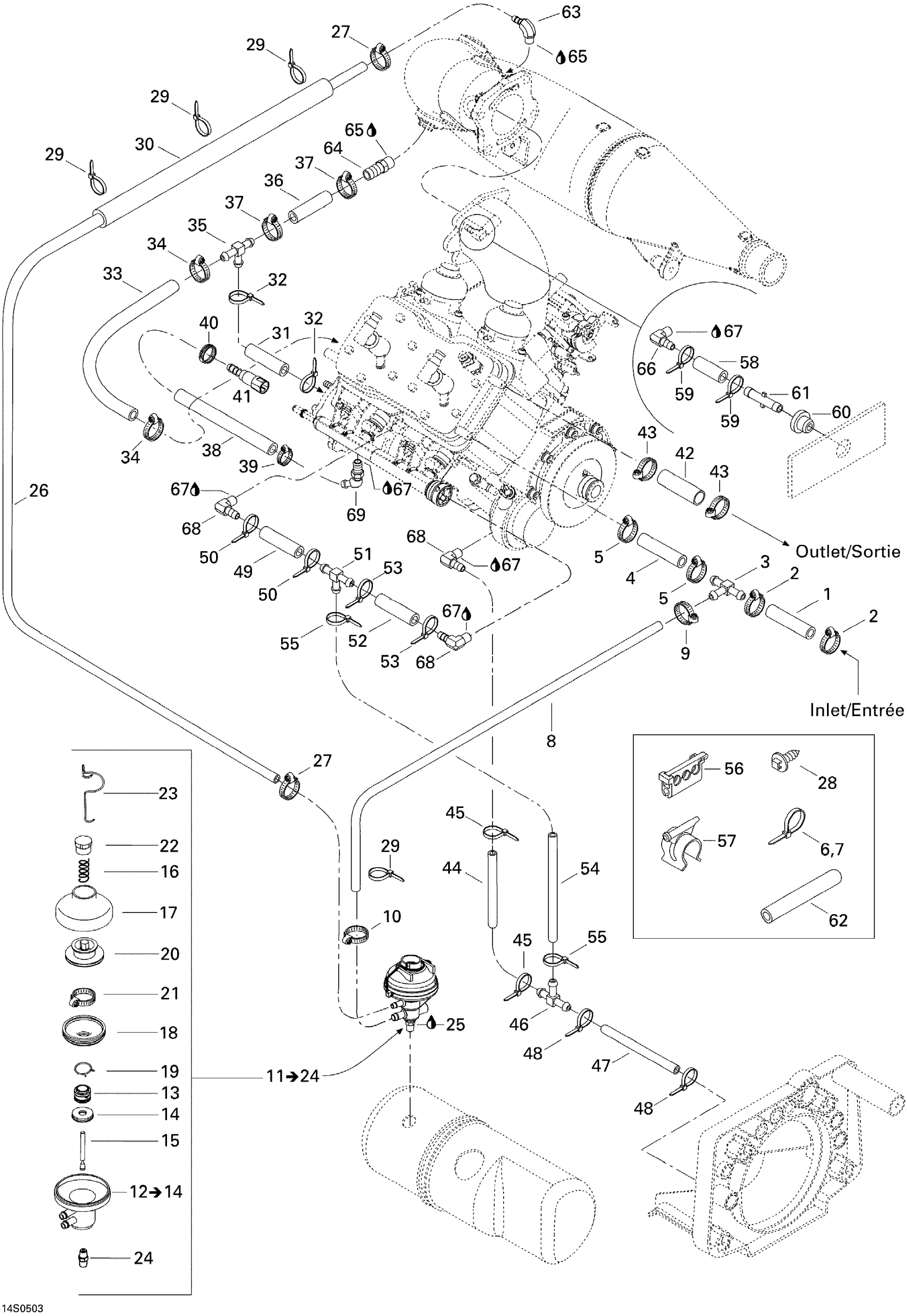

Sea-doo GTI LE RFI, 2005 01- Cooling System Diagram
#
1
Was 276000001 Hose 12.5 mm
219704394
$51.99
2
Tridon Gear Clamp
293650172
$3.09
3
T-Fitting
293710116
$17.62
4
Was 276000001 Hose 12.5 mm
219704394
$51.99
5
Tridon Gear Clamp
293650172
$3.09
6
Tie-Rap 173 mm
293750009
$1.04
7
Tie Wrap 368 mm
293750008
$1.04
8
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
9
Tridon Gear Clamp
293650170
$1.99
10
Tridon Gear Clamp
293650171
$3.09
11
REGULATOR ASSY - Call your local BRP dealership | Includes 11 to 24
276000134
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Spring 50 mm
274000612
Unavailable
17
Valve Cover
420911552
$38.99
18
Bellow
420260721
$51.99
19
SPRING CLAMP - Call your local BRP dealership
420838190
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Rivalair Clamp
293650065
Unavailable
22
Adjuster Screw
420241221
$14.22
23
SPRING CLIP - Call your local BRP dealership
420838083
Unavailable
24
Male Fitting
293700042
Unavailable
25
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
26
Was 275500549 Hose 1/4"
219704357
$194.99
27
Tridon Gear Clamp
293650170
$1.99
28
Mount Dart
293730040
$1.04
29
Tie Wrap 142 mm
293750002
$1.25
30
Was 409901800 Tubing (13 mm)
219704400
$14.49
31
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
32
Tie Wrap 94 mm | 4X4
293750001
$1.03
33
Was 276000001 Hose 12.5 mm
219704394
$51.99
34
Tridon Gear Clamp
293650172
$3.09
35
T-Fitting
293710116
$17.62
36
Was 276000001 Hose 12.5 mm
219704394
$51.99
37
Tridon Gear Clamp
293650172
$3.09
38
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
39
Tridon Gear Clamp
293650170
$1.99
40
Crimp Clamp, 15.3-706R
293650047
$3.29
41
Quick Fitting 90° Ass'y
415128965
$10.99
42
Was 276000001 Hose 12.5 mm
219704394
$51.99
43
Tridon Gear Clamp
293650172
$3.09
44
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
45
Tie Wrap 94 mm | 4X4
293750001
$1.03
46
T-FITTING - Call your local BRP dealership
293710061
Unavailable
47
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
48
Tie Wrap 94 mm | 4X4
293750001
$1.03
49
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
50
Tie Wrap 94 mm | 4X4
293750001
$1.03
51
T-FITTING - Call your local BRP dealership
293710061
Unavailable
52
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
53
Tie Wrap 94 mm | 4X4
293750001
$1.03
54
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
55
Tie Wrap 94 mm | 4X4
293750001
$1.03
56
Wire Support
278001597
Unavailable
57
COLLAR SUPPORT - Call your local BRP dealership
278000559
Unavailable
58
Hose 6 Mm 15000Mm Long
219704360
$132.49
59
Tie Wrap 94 mm | 4X4
293750001
$1.03
60
Grommet
293720029
$1.59
61
Straight Fitting
293710039
$7.59
62
Shrink Tubing
276000132
Unavailable
63
Elbow Fitting 90°
293710018
Unavailable
64
Male Connector | With Catalyst
293710021
$14.23
65
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
66
Elbow Fitting 90°
293710018
Unavailable
67
Was 293800013 Loctite 56765
219704454
$65.99
68
Elbow Fitting
293700016
Unavailable
69
ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst
204130218
Unavailable
