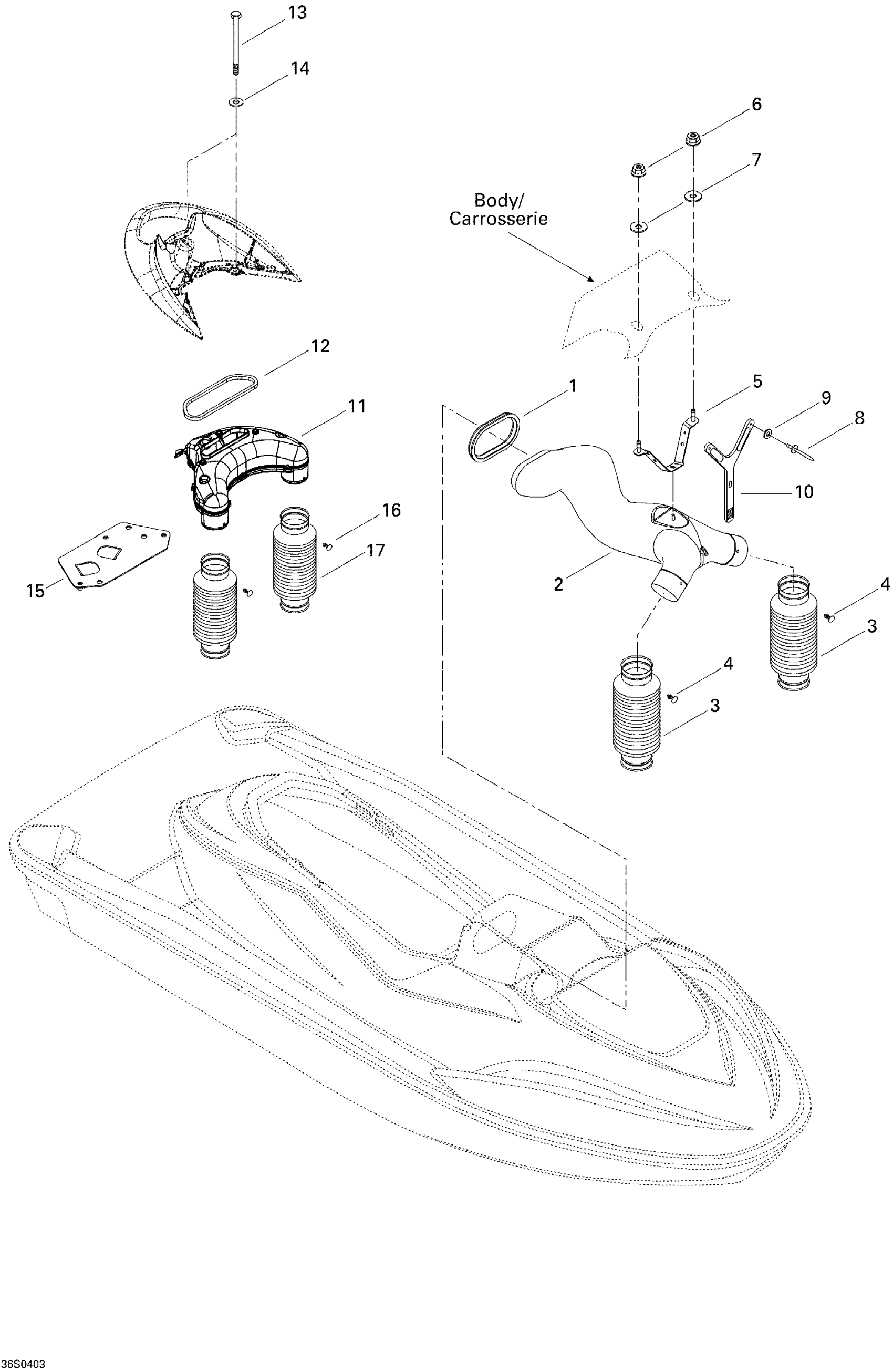

Sea-doo GTI LE RFI, 2004 Ventilation Diagram

#

Description
Price

1

Collector Joint

291001424

Unavailable

2

Front Collector

291001629

Unavailable

3

Vent Hose

291001777

Unavailable

4

Dart, Fastex

293730024

Unavailable

5

Collector Support

291001614

Unavailable

6

Hex. Elastic Nut M8

232581600

Unavailable

7

Stainless, Flat Washer 8 mm

234081600

Unavailable

8

Pop Rivet 3/16"

293150043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

Unavailable

10

Rubber Strap

293850065

Unavailable

11

Vent Tube Baffle Ass’y | Includes 11 to 12

291001873

Unavailable

12

BAFFLE SEAL - Call your local BRP dealership

293200088

Unavailable

13

HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership

230262060

Unavailable

14

Flat Washer M6, Stainless

234062600

Unavailable

15

PLATE - Call your local BRP dealership

278001868

Unavailable

16

Dart, Fastex

293730024

Unavailable

17

Vent Hose

291001777

Unavailable
