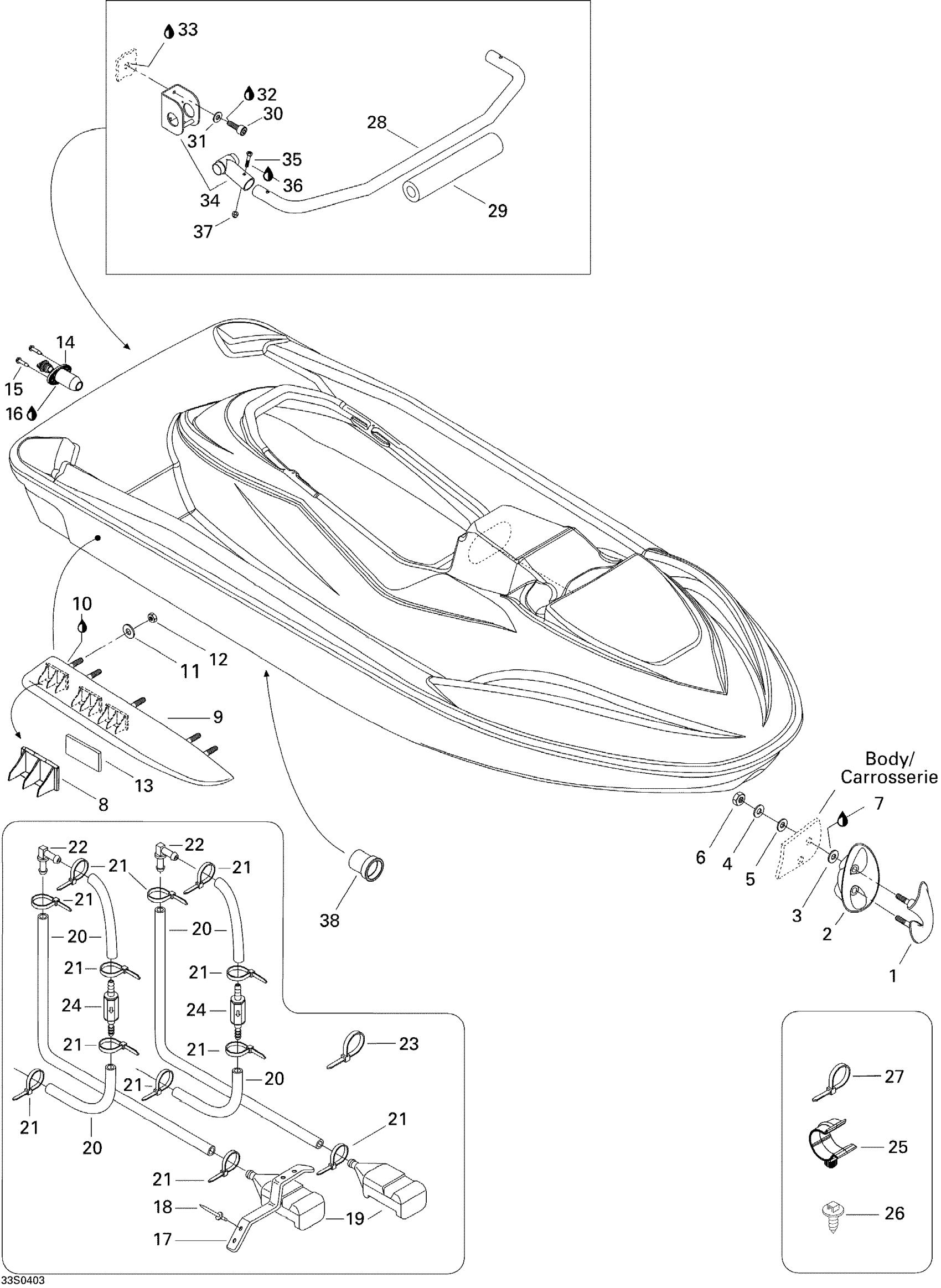

Sea-doo GTI LE RFI, 2004 Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
1
Bow Eye Ass'y, White
292000710
Unavailable
2
Black Shell
292001837
Unavailable
2
Shell, White
292000511
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
Unavailable
4
Flat Washer 8 mm, Stainless
250200175
Unavailable
5
Rubber Washer
293830037
Unavailable
6
Hex. Elastic Nut M8
232581600
Unavailable
7
Silicone Sealant 51388, 300 ml
296000309
Unavailable
8
Insert
293450149
Unavailable
9
RH SPONSON - Call your local BRP dealership
292000594
Unavailable
9
LH SPONSON - Call your local BRP dealership
292000595
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
Unavailable
11
Flat Washer M6
250200046
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
Unavailable
13
CUSHION - Call your local BRP dealership
292000414
Unavailable
14
Drain Plug
292001252
Unavailable
15
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
16
Silicone Sealant 51388, 300 ml
296000309
Unavailable
17
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
18
Avdel Rivet 3/16"
293150037
Unavailable
19
Bailer Screen
292000688
Unavailable
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
Unavailable
22
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
23
Tie-Rap 173 mm
293750009
Unavailable
24
Check Valve
276000093
Unavailable
25
Cable Retainer
275500527
Unavailable
25
Retainer
275500590
Unavailable
26
Mount Dart
293730040
Unavailable
27
Tie-Rap 180 mm
414115200
Unavailable
28
Stair Tube | Includes 28 to 29 / GTI LE RFI
291001691
Unavailable
29
PROTECTOR TUBE - Call your local BRP dealership | GTI LE RFI
292000593
Unavailable
30
Socket Head Screw M6 X 25, Scotch Grip
250000076
Unavailable
31
Stainless Flat Washer M6
234061600
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
Unavailable
33
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
34
STAIR SUPPORT - Call your local BRP dealership | LE
292000562
Unavailable
35
Socket Head Screw M6 X 35
205063560
Unavailable
36
Loctite 243, 10 ml
293800060
Unavailable
37
Nut M6 | Model-Australie, Brezil, Europe
232361600
Unavailable
38
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
