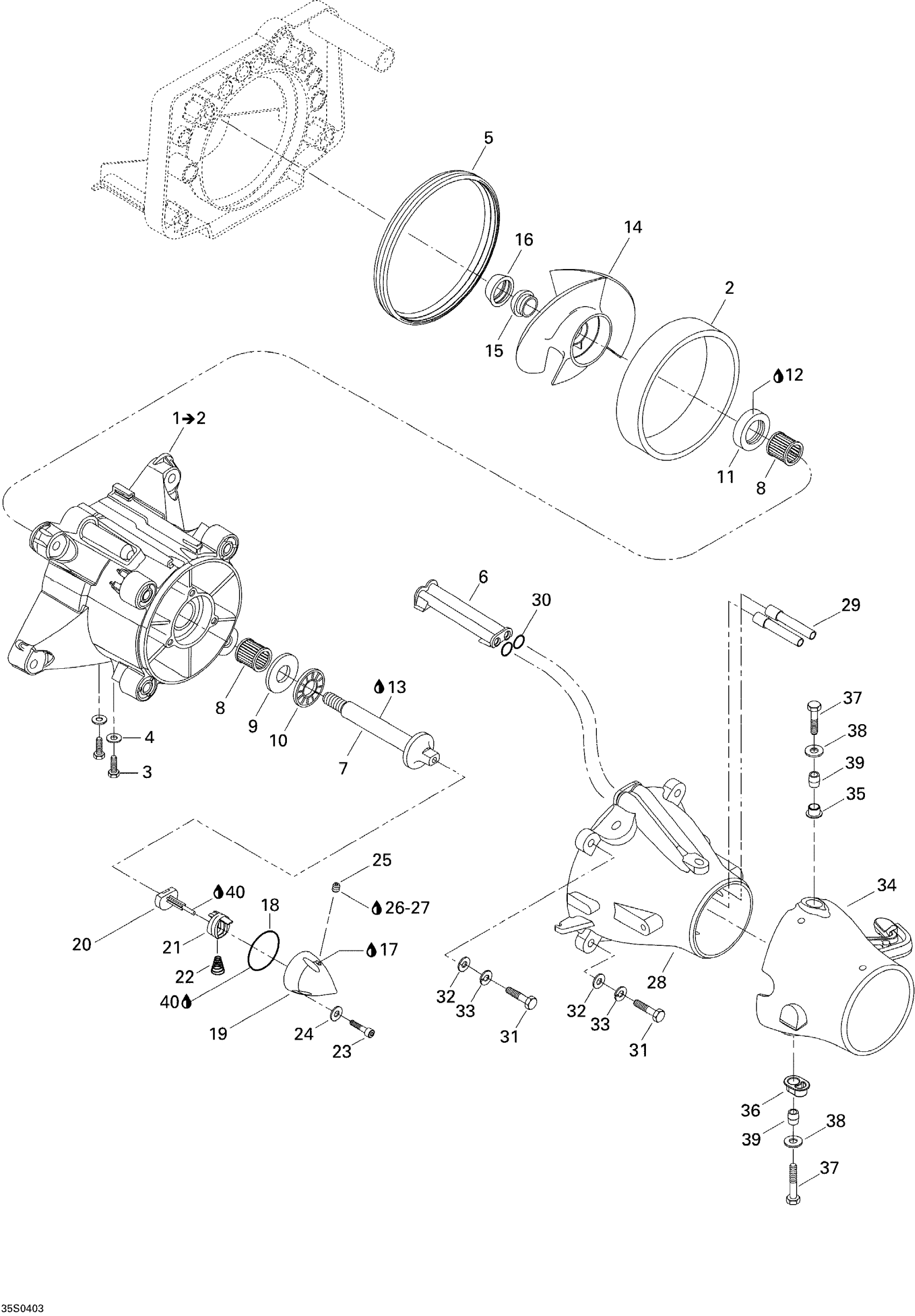

Sea-doo GTI LE RFI, 2004 Pump Diagram
#
1
HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5
271001381
Unavailable
2
Wear Ring
271000653
Unavailable
3
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
4
Flat Washer M5, Stainless
234051600
Unavailable
5
Neoprene Seal
293200087
Unavailable
6
Water Outlet
271000785
Unavailable
7
Impeller Shaft
271000965
Unavailable
8
Needle Bearing
293350017
Unavailable
9
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
10
Thrust-Bearing
293350022
Unavailable
11
Oil Seal
267000094
Unavailable
12
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
13
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
14
Stainless Steel Impeller Ass'y
271001370
Unavailable
15
Impeller Boot
271000516
Unavailable
16
Impeller Ring
271000517
Unavailable
17
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
18
O-Ring
293300011
Unavailable
19
IMPELLER COVER - Call your local BRP dealership
271001250
Unavailable
20
PUSHER ASS?Y - Call your local BRP dealership
271001124
Unavailable
21
SLIDER - Call your local BRP dealership
271001107
Unavailable
22
SPRING - Call your local BRP dealership
271001108
Unavailable
23
Socket Head Screw M6 X 25, Scotch Grip
205562560
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
Pipe Plug Socket Head 1/8-27 Npt
211500001
Unavailable
26
Was 293800013 Loctite 56765
219704454
Unavailable
27
Was 293800041 Loctite Primer 7649
219704458
Unavailable
28
Venturi, Black
271001466
Unavailable
29
Siphon Tube
271001133
Unavailable
30
O-Ring
293300013
Unavailable
31
Hex. Screw M8 X 50, Scotch Grip
207285060
Unavailable
32
Stainless, Flat Washer 8 mm
234081600
Unavailable
33
Lock Washer 8 mm, Stainless
234181601
Unavailable
34
Steering Nozzle, Black
271001469
Unavailable
35
Venturi Bushing
293900001
Unavailable
36
Plastic Bushing
293900010
Unavailable
37
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
38
Flat Washer M8.5 x 18
293050001
Unavailable
39
Sleeve
271001816
Unavailable
40
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
