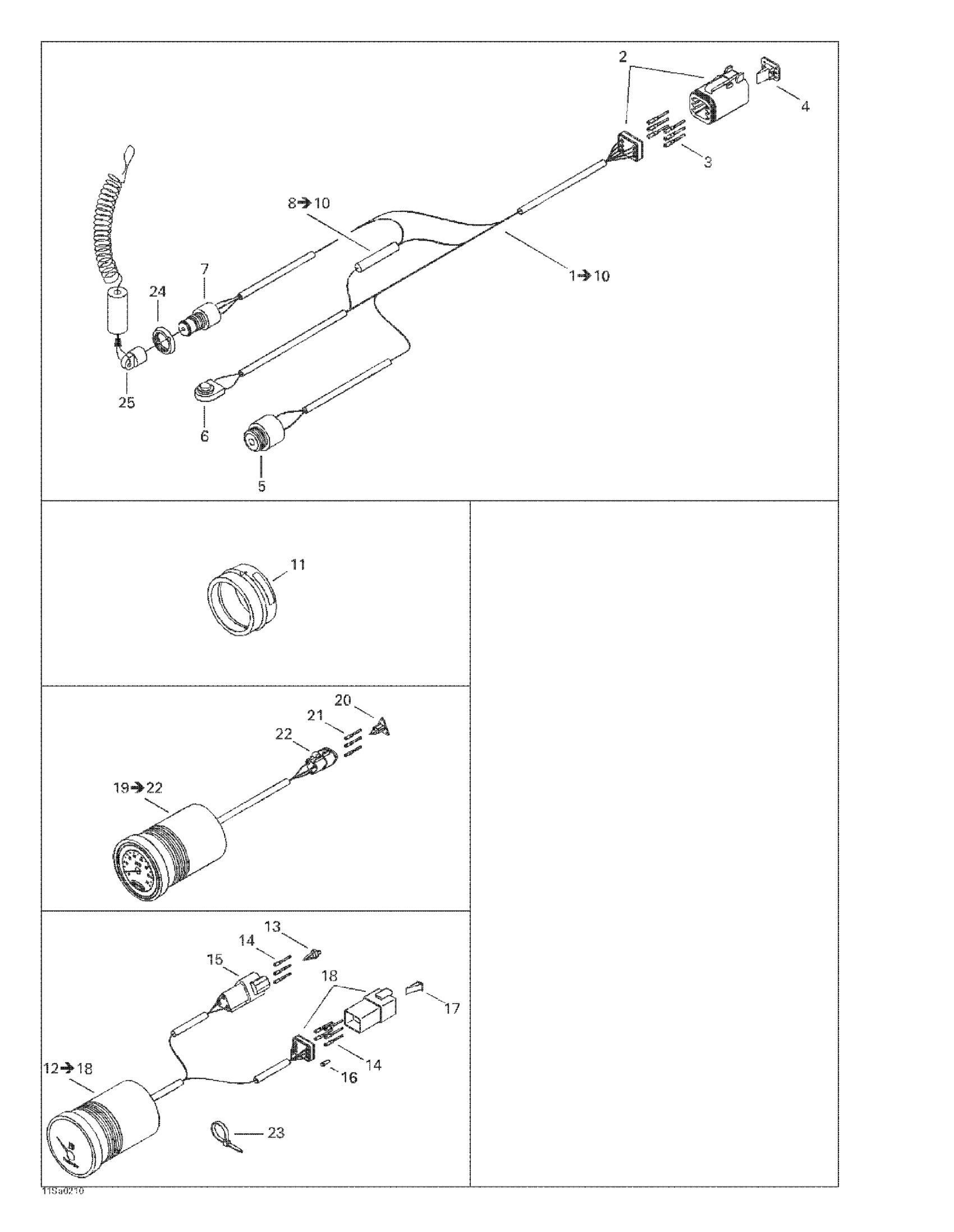

Sea-doo GTI LE, 5560/5561/6117, 2002 Electrical Accessories Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 10.

278001659

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

3

Female Terminal

278000632

$2.09

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

SWITCH - Call your local BRP dealership

278001587

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Terminal

278000230

$4.39

9

Insulated Sheath

278001008

$3.28

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Gauge Support

293720047

Unavailable

12

Oil/Fuel Gauge | Includes 14 - 20. GTI LE.

278001621

Unavailable

13

Male Lock, 3 Circuits

409207600

$3.19

14

Male Terminal | GTI RFI LE

278001664

Unavailable

15

Male Housing

278002378

$13.99

16

Sealing Cap

293000052

$3.19

17

Female Lock, 6 Circuits

278000735

$3.19

18

Male Terminal Housing, 6 Circuits

710001539

$19.99

19

Speedometer | Includes 21 - 24. GTI LE.

278001620

Unavailable

20

Female Lock

409207200

$4.39

21

Female Terminal

278001665

$4.55

22

Female Connector, 2 Circuits

409207300

$9.85

23

Tie-Rap 180 mm

414115200

$0.11

24

Safety Nut (DESS Switch)

278002963

$3.28

25

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
