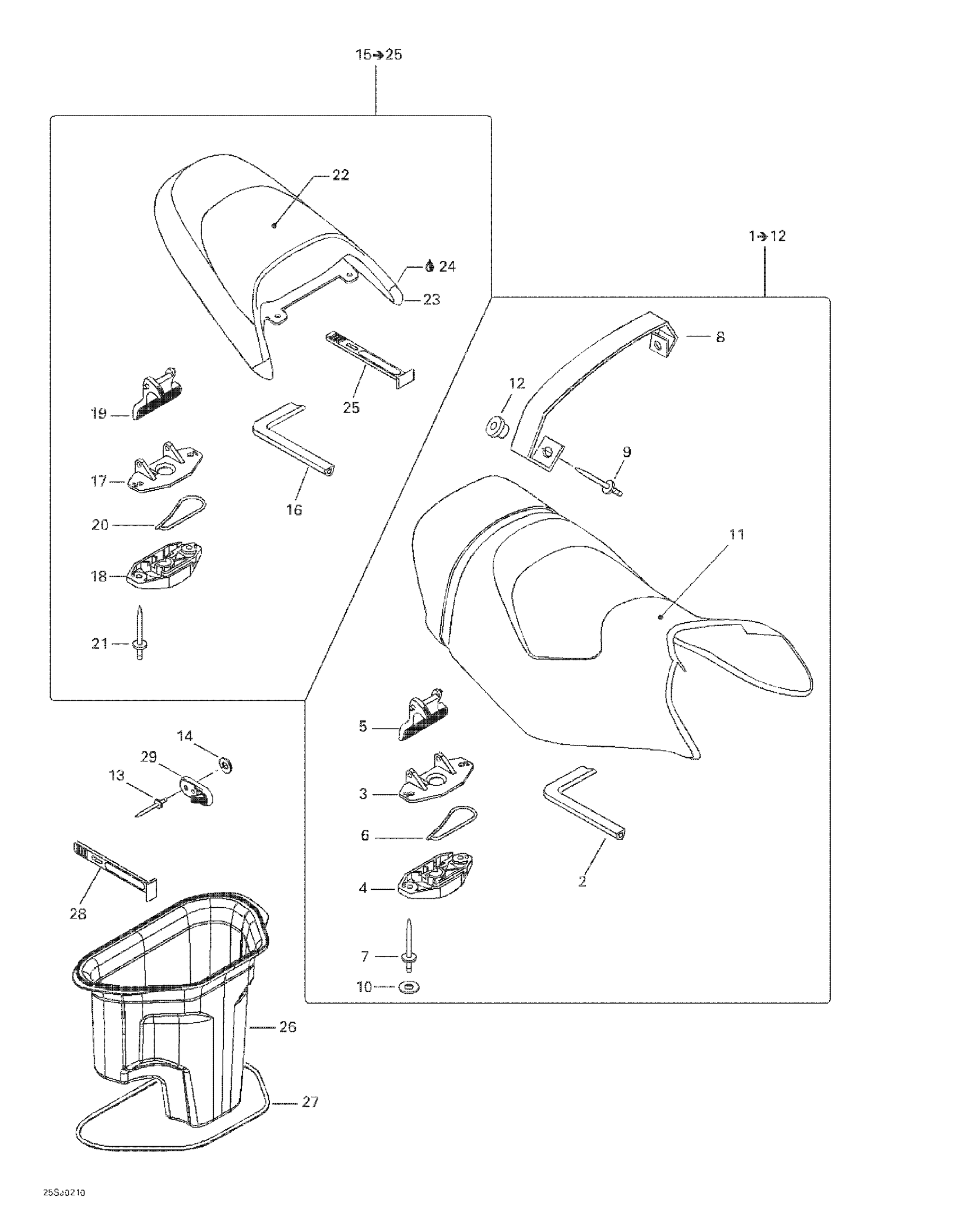

Sea-doo GTI LE, 5560/5561/6117, 2002 Seat Diagram

#

Description
Price

1

Seat Ass'y (Earthen Clay) | Includes 1 - 12.

269000779

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Seat Strap, Earthen Clay

269000781

Unavailable

9

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

10

Stainless Flat Washer M6

234061600

$0.33

11

Cover And Foam, Earthen Clay

269000918

Unavailable

12

Grommet

293720067

$12.99

13

Pop Rivet 3/16"

293150039

$1.49

14

Flat Washer 5 mm, Stainless

234052600

$0.77

15

Rear Seat (Earthen Clay) | Includes 15 - 25.

269000775

Unavailable

16

Was 293200062 Seal

219704366

$76.49

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Ass'y

269700109

$24.99

20

Latch Spring

269700017

$9.19

21

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

22

Rear Seat Cover, Earthen Clay

269000920

Unavailable

23

RH Seat Corner, Earthen Clay

269000777

Unavailable

LH Seat Corner, Earthen Clay

269000778

Unavailable

24

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

25

Strap

269502417

$17.69

26

Rear Tray

269500990

Unavailable

27

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

28

Strap

269502417

$17.69

29

Hook

269500521

$9.09

30

Staple

293730005

Unavailable
