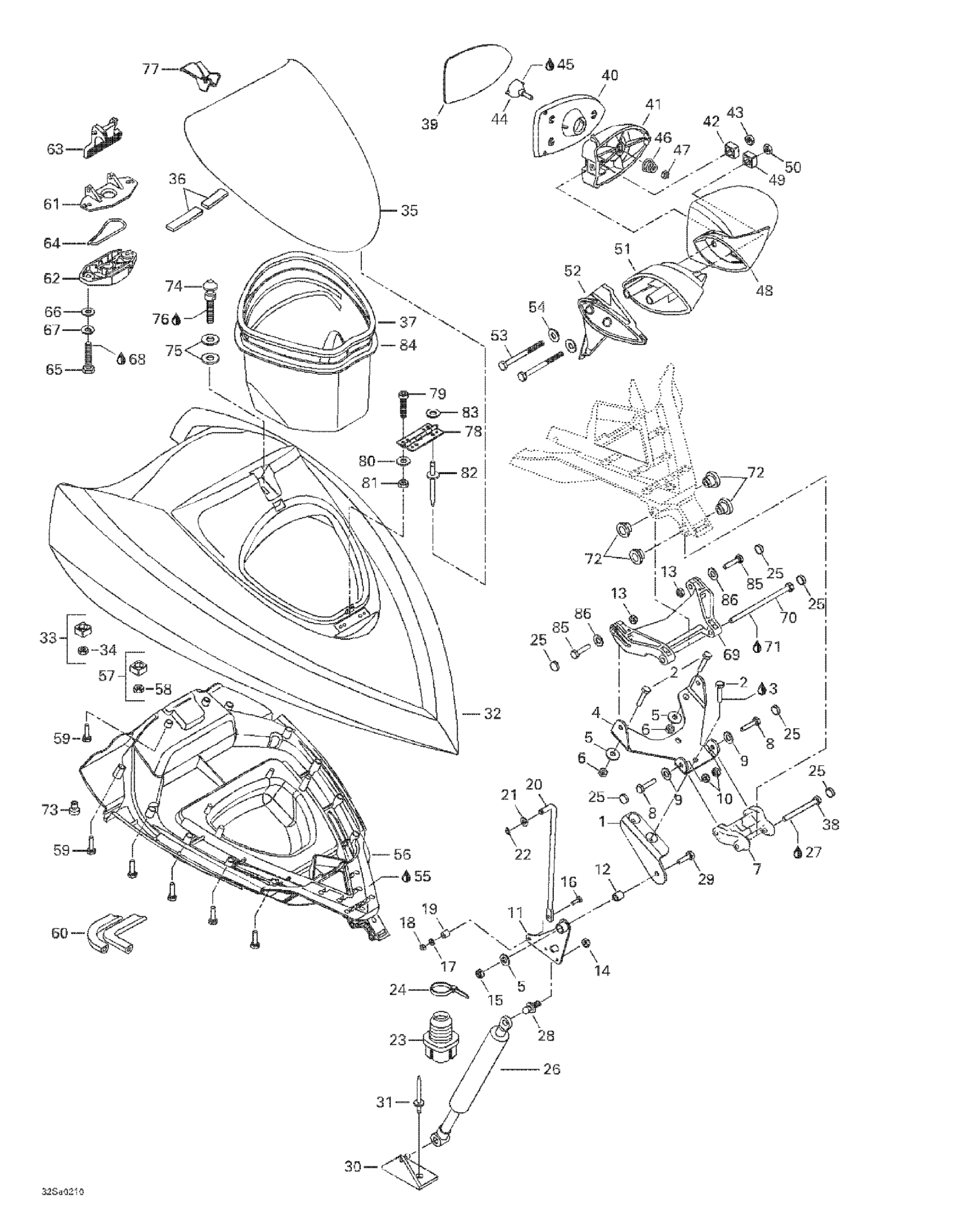

Sea-doo GTI LE, 5560/5561/6117, 2002 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.03

3

Loctite 243, 10 ml

293800060

$20.77

4

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

LEVER - Call your local BRP dealership

269501020

Unavailable

12

SPACER - Call your local BRP dealership

269501022

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Hex. Elastic Nut M8

232581600

$1.25

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Hex. Screw M4 X 16 | Europe

207141660

$1.22

17

Flat Washer 4 mm, Stainless

234041600

$0.91

18

Elastic Stop Nut M4

232541600

$0.92

19

Spacer

269500841

Unavailable

20

ROD - Call your local BRP dealership

269500842

Unavailable

21

Stainless Flat Washer M6

234061600

$0.25

22

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

23

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

24

Tie-Rap 180 mm

414115200

$0.09

25

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

26

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

27

Loctite 243, 10 ml

293800060

$20.77

28

Ball Head Stud

250300016

$11.69

29

Hex. Screw M6 X 30

207163060

$1.25

30

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.47

32

Cover, Earthen Clay | Includes 32 - 37. GTI LE.

269501056

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

34

Hex. Nut M6

232061600

$0.91

35

Access Cover, Earthen Clay | Includes 35 - 37. GTI LE.

269501063

Unavailable

36

Neoprene Seal (1PAC=3M)

219704364

$22.72

37

Was 293200017 Neoprene Seal

219704365

$118.27

38

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

39

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

40

Frame Mirror

269500697

Unavailable

41

Housing Support | WAKE

269500807

Unavailable

42

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

43

Hex. Elastic Nut M8

232581600

$1.25

44

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

Mirror Spring

269500453

$7.97

47

Hex. Elastic Stop Nut M6

232561600

$0.92

48

Mirror Shell, Earthen Clay | Includes 48 - 50. GTI LE.

269501071

Unavailable

LH Mirror Shell (Earthen Clay met.)

269501073

Unavailable

49

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

50

Hex. Elastic Nut M8

232581600

$1.25

51

RH Mirror Support, Earthen Clay | GTI LE.

269501075

Unavailable

LH Mirror Support, Earthen Clay | GTI LE.

269501077

Unavailable

52

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

53

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

54

Flat Washer 8 mm, Stainless

234082600

$1.98

55

Glue Tube, Loctite 454, 20 G

413708300

$58.18

56

Lower Strorage Cover

269500702

Unavailable

57

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

58

Hex. Nut M6

232061600

$0.91

59

Hex. Flange Screw K40 X 13

241141360

$0.56

60

Was 293200017 Neoprene Seal

219704365

$118.27

61

Latch Ass'y

269700109

$20.12

62

Latch Ass'y

269700109

$20.12

63

Latch Ass'y

269700109

$20.12

64

Latch Spring

269700017

$7.27

65

Hex. Screw M6 X 30

207063060

$1.51

66

Stainless Flat Washer M6

234061600

$0.25

67

Lock Washer Helical M6

234161601

$0.92

68

Loctite 243, 10 ml

293800060

$20.77

69

REAR ARM - Call your local BRP dealership

269500705

Unavailable

70

Hex. Screw M6 X 100

230060060

$6.08

71

Loctite 243, 10 ml

293800060

$20.77

72

Sleeve

269500706

$4.30

73

Rubber Bumper

293830005

$5.33

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.64

76

Loctite 243, 10 ml

293800060

$20.77

77

Latch

269501487

$12.97

78

HINGE - Call your local BRP dealership

269500338

Unavailable

79

Socket Head Screw M5 X 16

205451660

$1.04

80

Flat Washer 5 mm, Stainless

234052600

$0.64

81

Hex. Elastic Nut M5 | X

232551600

$0.91

82

Pop Rivet 3/16"

204000081

$1.31

83

Flat Washer 5 mm, Stainless

234052600

$0.64

84

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

85

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

86

Stainless Flat Washer M6

234061600

$0.25
