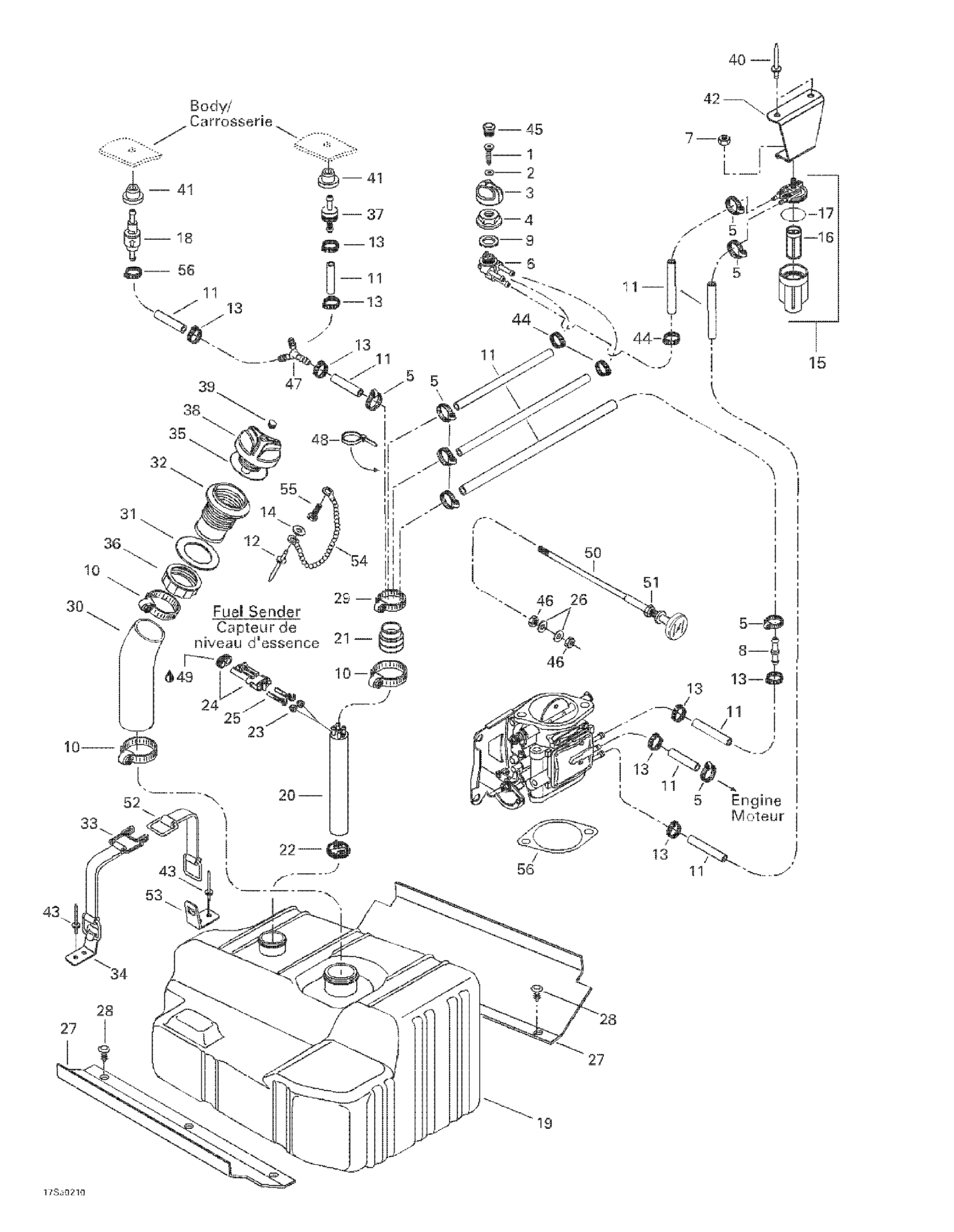

Sea-doo GTI LE, 5560/5561/6117, 2002 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

Fuel Valve Knob

275500487

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Tridon Gear Clamp

293650170

$1.74

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Straight Fitting

293710039

$6.75

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$11.37

11

Was 275500549 Hose 1/4"

219704357

$178.33

12

Pop Rivet 1/8"

390407900

$1.17

13

Oetiker Gear Clamp

293650025

$2.46

14

Flat Washer M3, Stainless

234032600

$0.52

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

19

Fuel Tank

275500291

Unavailable

20

BAFFLE - Call your local BRP dealership | Includes 20 to 25

275500470

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$3.48

24

Male Connector, 2 Circuits

278000220

$11.02

25

Female Terminal

278000223

$2.55

26

Stainless Flat Washer M6

234061600

$0.25

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$0.81

29

Tridon Clamp

293650035

$5.80

30

Filler Hose Neck

275500520

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck, Fuel

275500231

$12.40

33

Strap | Includes 33 - 34.

293850064

Unavailable

34

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Check Valve

275500398

$8.57

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

39

Black, Snap Cap

293000034

$7.48

40

Pop Rivet 3/16"

293150043

$1.61

41

Grommet

293720029

$1.13

42

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Oetiker Clamp

293650042

$1.40

45

Bumper Plug, Black

291000339

$2.34

46

Hex. Nut M6

232160600

$1.04

47

Y-Fitting

293710059

$8.19

48

Tie-Rap 180 mm

414115200

$0.09

49

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

50

CHOKE CABLE - Call your local BRP dealership

270000545

Unavailable

51

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

52

Fuel Tank Strap

293850036

$13.62

53

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

54

Fuel Cap Chain

275500974

$14.27

55

Screw K40 X 10

241140060

$1.25

56

Gasket This part replaces 293250070.

293250134

$11.04
