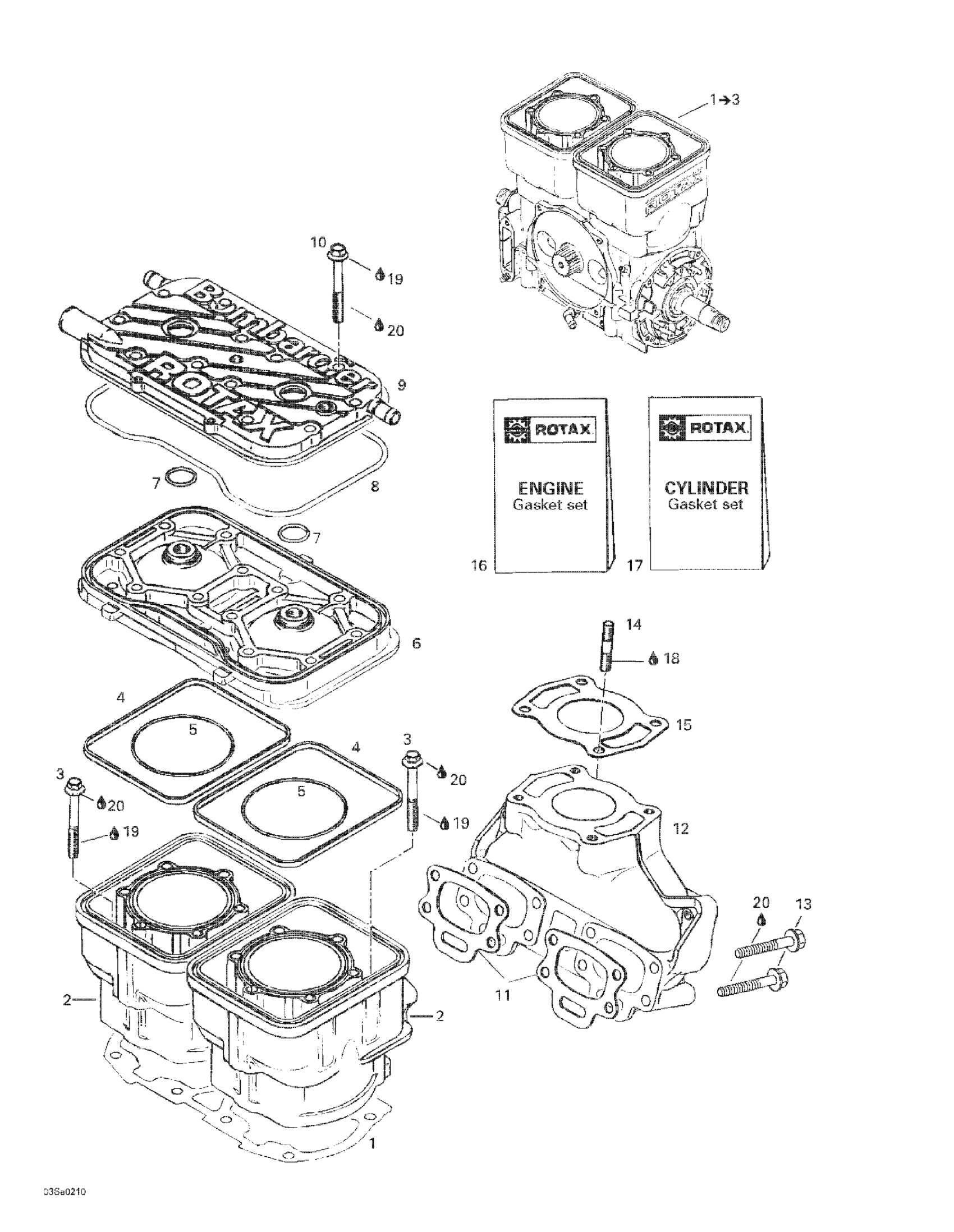

Sea-doo GTI LE, 5560/5561/6117, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

SHORT BLOCK ASS'Y (SILVER) - Call your local BRP dealership | Includes 1 - 20.

290071703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership

421000097

Unavailable

1

Gasket Cylinder 0.8 mm

290931404

Unavailable

Gasket Cylinder 0.6 mm

290931403

Unavailable

GASKET CYLINDER 0.5 MM - Call your local BRP dealership

290931402

Unavailable

Gasket Cylinder 0.4 mm

290931401

Unavailable

Gasket Cylinder 0.3 mm

290931400

Unavailable

2

Cylinder with Sleeve (Silver)

290923805

Unavailable

2

REBUILD-CYLINDERS RESLEEVING 717 95-96 - Call your local BRP dealership

421000056

Unavailable

3

HEX. FLANGE SCREW M8 X 90 - Call your local BRP dealership

290440368

Unavailable

4

Rubber Ring

290850045

Unavailable

5

O-Ring | Included in gasket kit

420931410

$3.39

6

Head Cylinder (Silver)

290923252

Unavailable

7

O-Ring

420430782

$5.39

8

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

9

Cylinder Head Cover (Silver)

290923262

Unavailable

10

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

11

Gasket This part replaces 290850638.

420850638

$12.17

12

Exhaust Manifold

290979146

Unavailable

13

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

14

STUD M10 X 25, PTO - Call your local BRP dealership

290940798

Unavailable

15

GASKET - Call your local BRP dealership

290950255

Unavailable

16

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable

17

Cylinder Gasket Set (Not Shown)

290886318

Unavailable

18

Sealant Loctite 648

219703000

$45.99

19

Loctite 243, 10 ml

293800060

$21.49

20

Dow Corning 111, 150 g

413707000

$59.99
