Description

Price

1

Collector Joint

291001424

Unavailable

2

Front Collector

291001629

Unavailable

3

Vent Hose

291001777

Unavailable

4

Dart, Fastex

293730024

$1.39

5

Collector Support

291001614

Unavailable

6

Hex. Elastic Nut M8

232581600

$1.48

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Pop Rivet 3/16"

293150043

$2.09

9

Flat Washer 5 mm, Stainless

234052600

$0.77

10

Rubber Strap

293850065

Unavailable

11

Vent Tube Baffle Ass’y | Includes 11 to 12

291001873

Unavailable

12

HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership

230262060

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable

15

Rubber Bumper

293830005

$8.09

16

Dart, Fastex

293730024

$1.39

17

Vent Hose

291001777

Unavailable

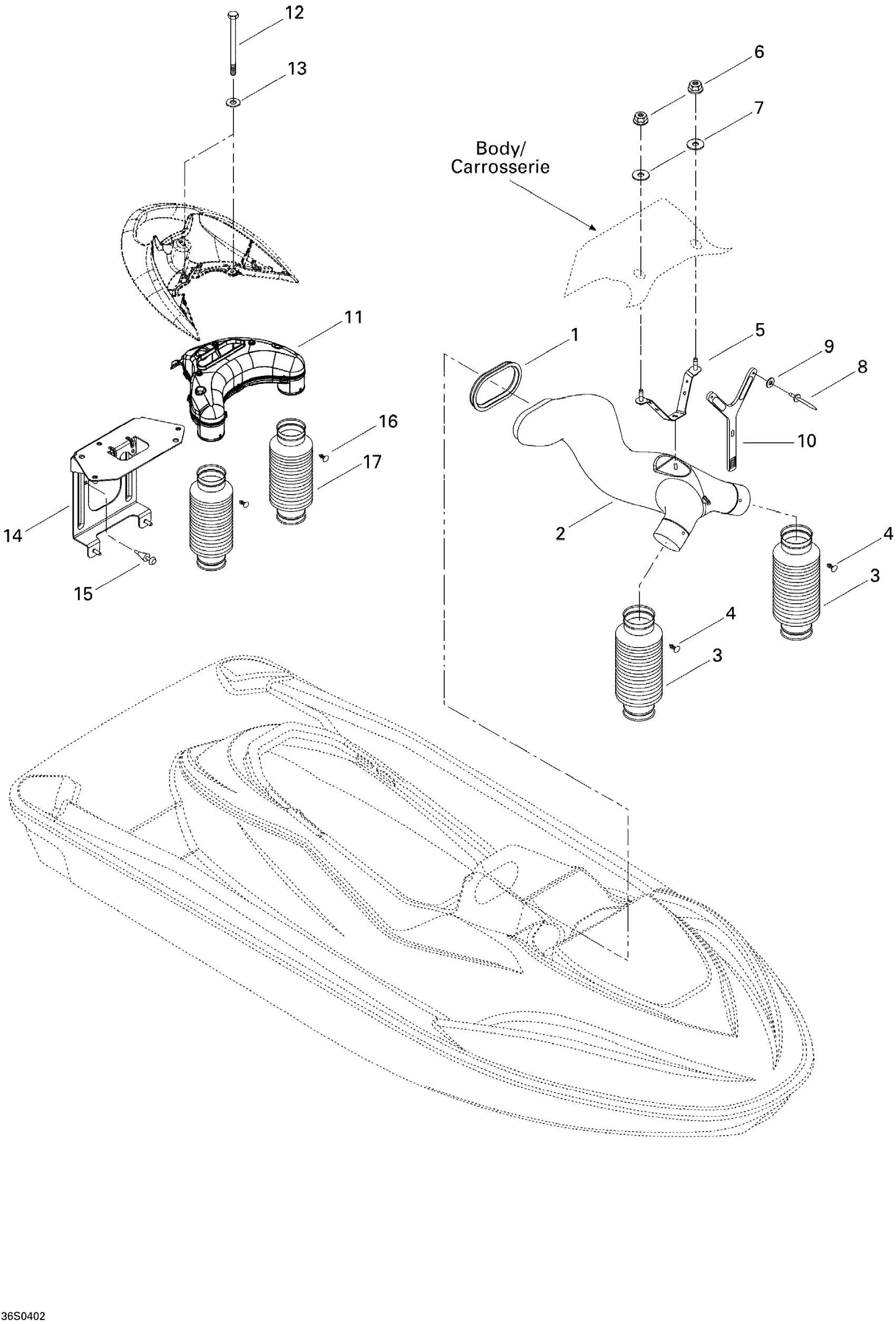

Sea-doo GTI LE, 2004 09- Ventilation Diagram

Collector Joint

Front Collector

Vent Hose

Dart, Fastex

Collector Support

Hex. Elastic Nut M8

Stainless, Flat Washer 8 mm

Pop Rivet 3/16"

Flat Washer 5 mm, Stainless

Rubber Strap

Vent Tube Baffle Ass’y | Includes 11 to 12

HEX. SCREW M6 X 120, SCOTCH GRIP - Call your local BRP dealership

Flat Washer M6, Stainless

BOX SUPPORT - Call your local BRP dealership

Rubber Bumper

Dart, Fastex

Vent Hose
