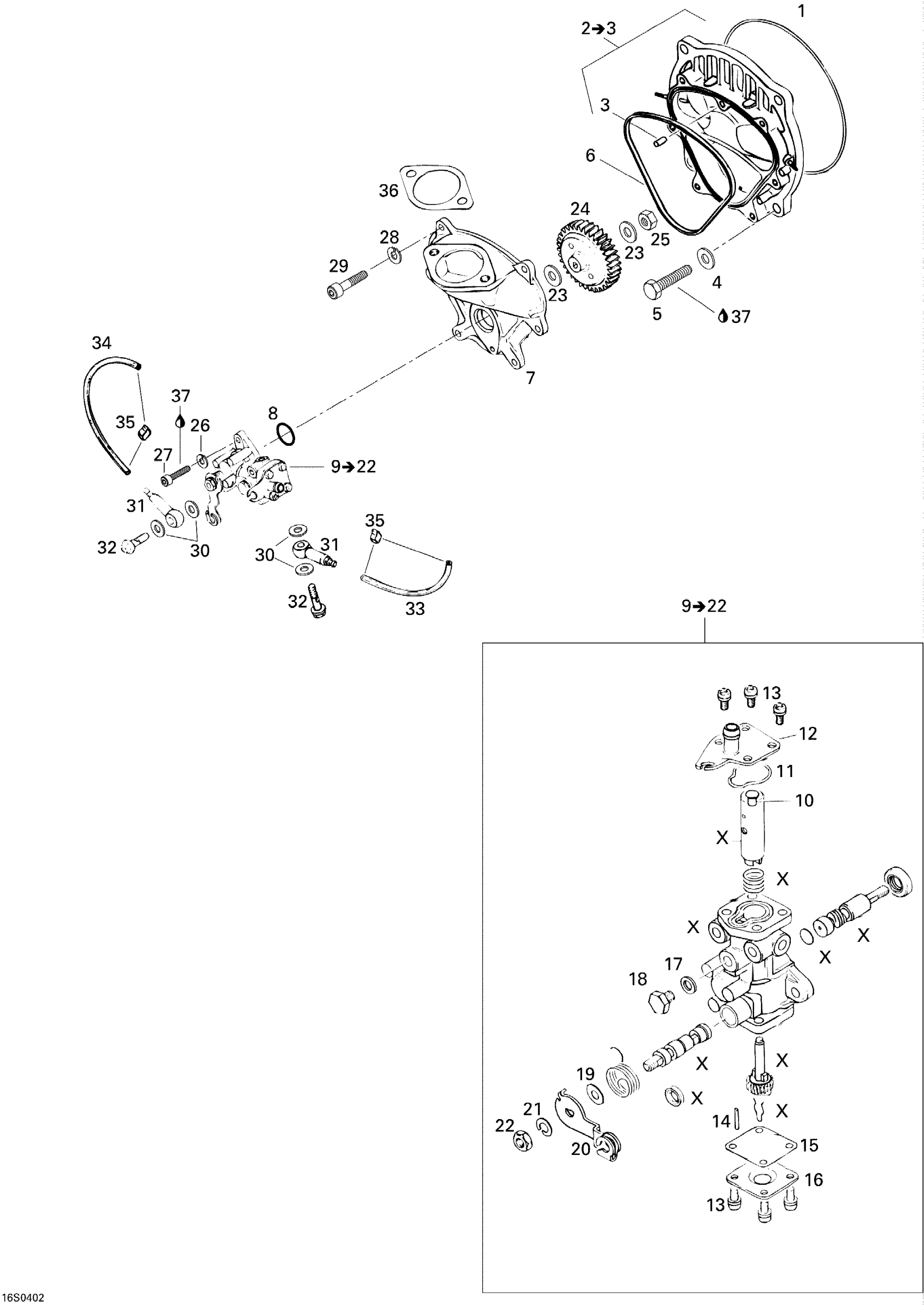

Sea-doo GTI LE, 2004 02- Oil Pump Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

293300023

Unavailable

2

Rotary Cover, Black | Includes 2 to 3

420811253

Unavailable

3

Drive Pin 5 X 10

420929650

$1.68

4

WASHER 8.4 MM - Call your local BRP dealership

420250313

Unavailable

5

Hex. Screw M8 X 20

207182044

$0.74

6

RUBBER RING - Call your local BRP dealership

420850160

Unavailable

7

OIL PUMP FLANGE, BLACK - Call your local BRP dealership

420811194

Unavailable

8

O-RING - Call your local BRP dealership

293300018

Unavailable

9

OIL PUMP ASS'Y - Call your local BRP dealership | Includes 9 to 22

420996726

Unavailable

10

RETAINER - Call your local BRP dealership

420256085

Unavailable

11

O-RING - Call your local BRP dealership

293300019

Unavailable

12

PUMP UPPER PLATE - Call your local BRP dealership

420956340

Unavailable

13

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

420241975

Unavailable

14

Stop Pin

420929900

Unavailable

15

Gasket

420850200

Unavailable

16

Pump Lower Plate

420956031

Unavailable

17

GASKET - Call your local BRP dealership

420227505

Unavailable

18

HEX. SCREW M6 X 8 - Call your local BRP dealership

420841583

Unavailable

19

Washer 6.2 mm

420227665

Unavailable

20

LEVER CONTROL - Call your local BRP dealership

420848162

Unavailable

21

LOCK WASHER 6 MM - Call your local BRP dealership

420845381

Unavailable

22

Hex. Nut M6

420242623

Unavailable

23

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

24

Oil Pump Gear 41 Teeth

420935945

Unavailable

25

Elastic Stop Nut M6

232561414

$0.55

26

LOCK WASHER 5 MM - Call your local BRP dealership

420845389

Unavailable

27

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

28

LOCK WASHER 6 MM - Call your local BRP dealership

420845381

Unavailable

29

Socket Head Screw M6 X 20

205062060

$2.32

30

Sealing Washer

404146600

$2.97

31

Valve Ass’Y

420956010

$17.53

32

Banjo Bolt M6 X 16

404146800

Unavailable

33

Oil Hose 1500Mm Long

219704404

$17.26

34

Oil Hose 1500Mm Long

219704404

$17.26

35

CLAMP 3.5 MM - Call your local BRP dealership

420853843

Unavailable

36

Gasket This part replaces 293250070.

293250134

$13.76

37

Loctite 243, 10 ml

293800060

$21.49
