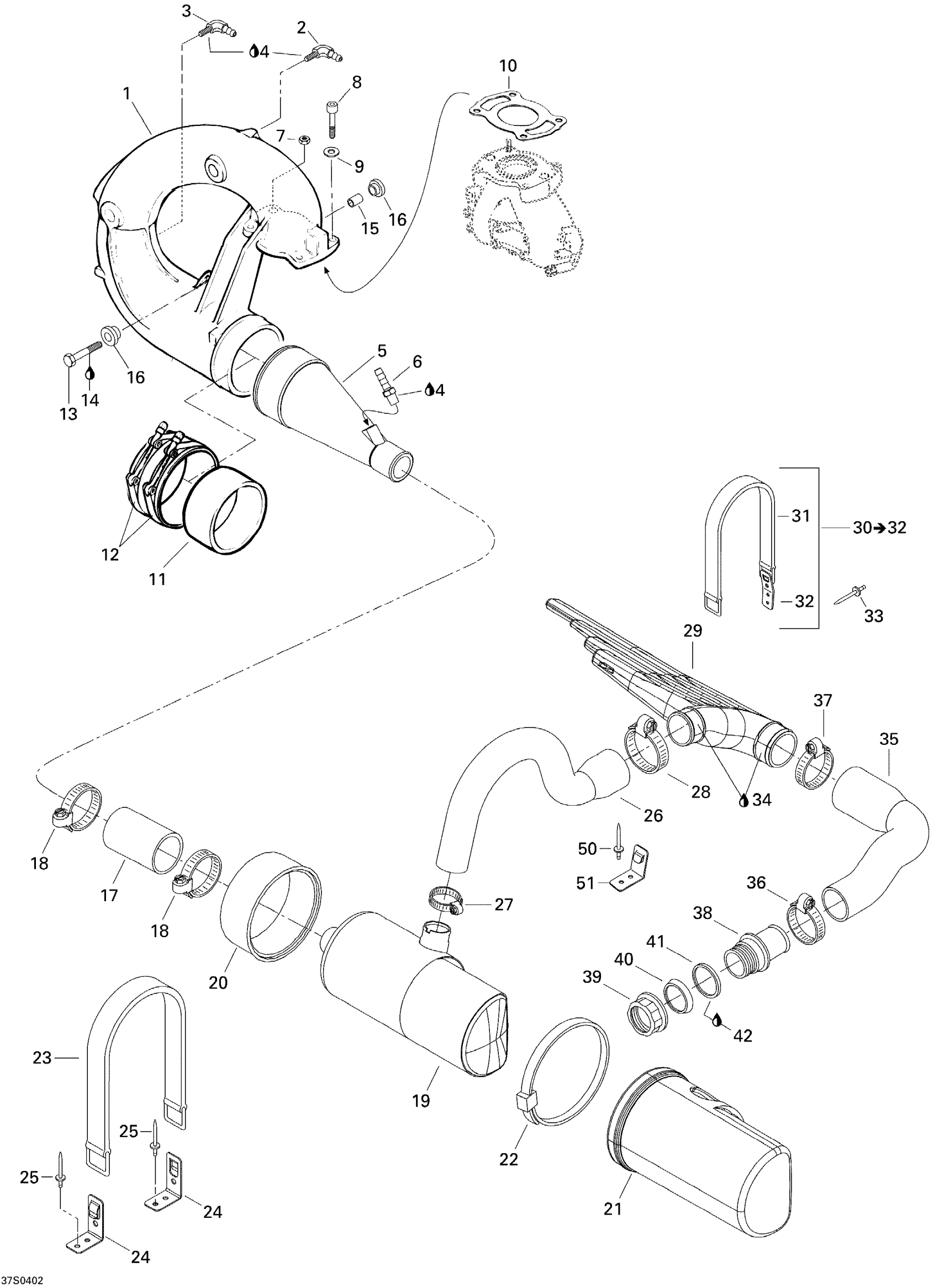

Sea-doo GTI LE, 2004 Exhaust System Diagram

#

Description
Price

1

Tuned Pipe

274001091

Unavailable

2

Elbow Fitting 90°

293710018

Unavailable

3

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

4

Was 293800013 Loctite 56765

219704454

$65.99

5

EXHAUST CONE - Call your local BRP dealership

274001093

Unavailable

6

Male Connector

293710037

$10.49

7

Hex. Flange Nut M10

233101600

$5.29

8

SOCKET HEAD SCREW M10 X 30 - Call your local BRP dealership

205503060

Unavailable

9

Flat Washer

211200051

$1.68

10

GASKET - Call your local BRP dealership

420950255

Unavailable

11

Sealing Ring

274000074

Unavailable

12

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

13

Hex. Screw M8 X 40

207084060

$2.22

14

Loctite 243, 10 ml

293800060

$21.49

15

Bushing

274000114

$8.85

16

Rubber Bushing

293830031

Unavailable

17

EXHAUST HOSE - Call your local BRP dealership

274000032

Unavailable

18

Tridon Clamp

293650023

$13.49

19

Muffler

274000788

Unavailable

20

Front Cover Muffler

274000803

Unavailable

21

Rear Cover Muffler

274000806

Unavailable

22

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

23

Fuel Tank Strap

293850036

$18.99

24

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

25

Avdel Rivet 3/16"

293150037

$0.56

26

Exhaust Hose

274000873

Unavailable

27

Tridon Clamp

293650023

$13.49

28

Tridon Clamp

293650179

$11.49

29

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

30

Strap Ass`Y | Includes 56 to 58

293850082

Unavailable

31

Fuel Tank Strap

293850036

$18.99

32

Strap Clip

293850030

$11.12

33

Avdel Rivet 3/16"

293150037

$0.56

34

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

35

Hose Exhaust

274000874

Unavailable

36

Tridon Clamp

293650064

$8.29

37

Tridon Clamp

204000079

$9.99

38

Exhaust Hose, Outlet

274001391

$29.49

39

Nut 72 mm

274000224

$16.34

40

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

41

GASKET - Call your local BRP dealership

293250041

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$36.99
