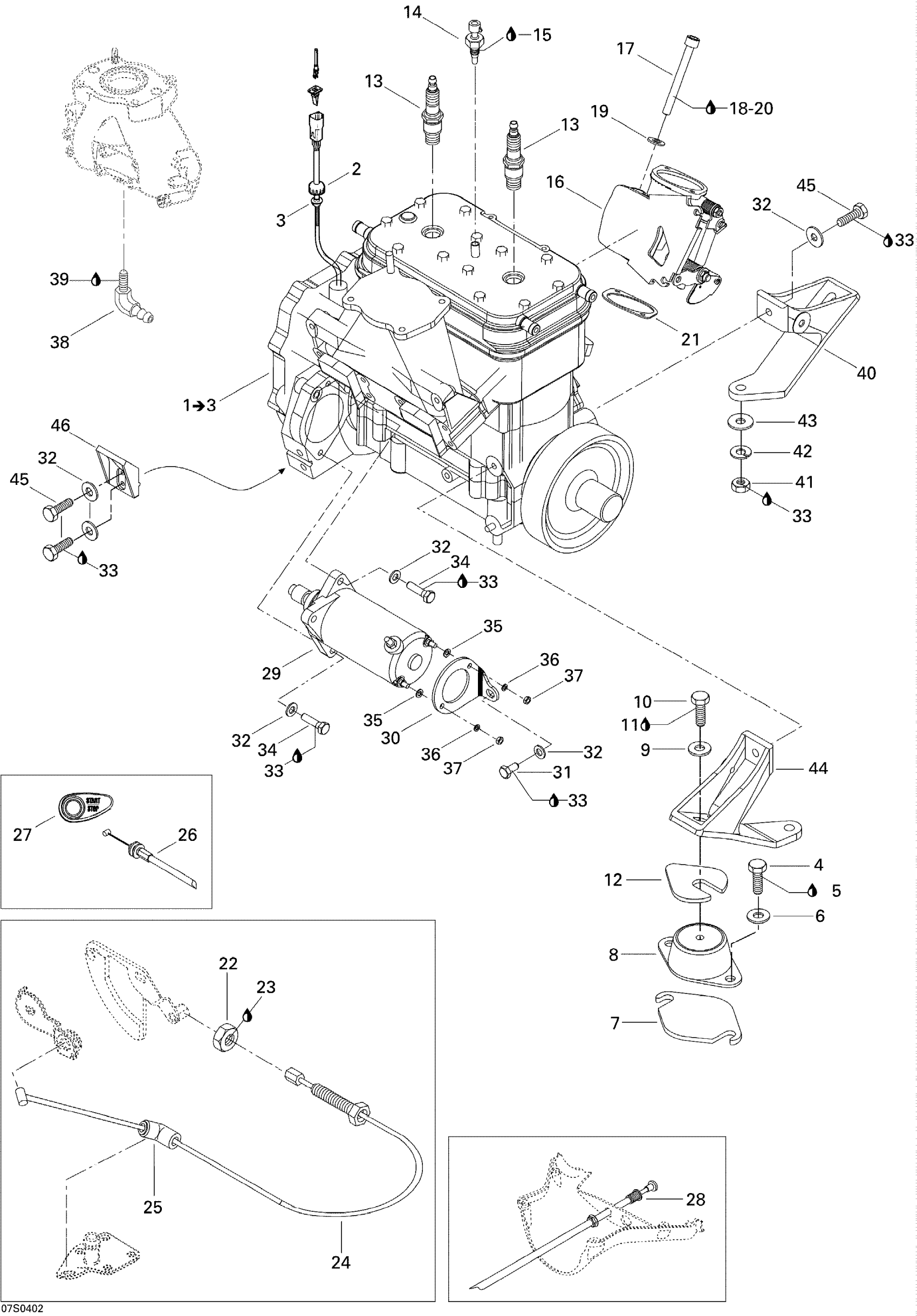

Sea-doo GTI LE, 2004 Engine Diagram

#

Description
Price

1

Engine 717 | Includes 1 to 3

270000595

Unavailable

2

Electric Wire Cap

278000100

Unavailable

3

Grommet

293720034

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Loctite 243, 10 ml

293800060

$21.49

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

8

Rubber Mount

270000425

$71.99

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

13

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

14

Temperature Sensor

278000965

$73.99

15

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

16

Carburetor BN40I-38-61

270500447

Unavailable

17

SOCKET HEAD SCREW M8 X 80 - Call your local BRP dealership

205088060

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49

19

Stainless, Flat Washer 8 mm

234081600

$0.55

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Gasket

204250035

Unavailable

22

Hex. Nut M6

232160600

$1.15

23

Loctite 243, 10 ml

293800060

$21.49

24

INJECTION CABLE - Call your local BRP dealership

270000540

Unavailable

25

CABLE GUIDE - Call your local BRP dealership

270000187

Unavailable

26

Throttle Cable

277001064

Unavailable

27

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

28

CHOKE CABLE - Call your local BRP dealership

270000545

Unavailable

29

Starter Ass'y, Black | Includes 1 - 16. This part replaces 278001300.

278001935

$234.49

30

Starter Support

270000080

Unavailable

31

Hex. Screw M8 X 16

207181660

Unavailable

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Loctite 243, 10 ml

293800060

$21.49

34

Hex. Screw M8 X 30

207183060

$1.58

35

Flat Washer M5, Stainless

234051600

$0.77

36

Helical Lock Washer M5

234151601

$1.15

37

Hex. Nut M5

232051600

$1.15

38

Elbow Fitting

293700016

Unavailable

39

Was 293800013 Loctite 56765

219704454

$65.99

40

RH ENGINE SUPPORT, BLACK - Call your local BRP dealership

270000596

Unavailable

41

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

42

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

43

Flat Washer 10 mm, Stainless

234001600

$1.15

44

LH Engine Support, Black

270000597

Unavailable

45

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

46

Engine Support, Black

270000598

Unavailable
