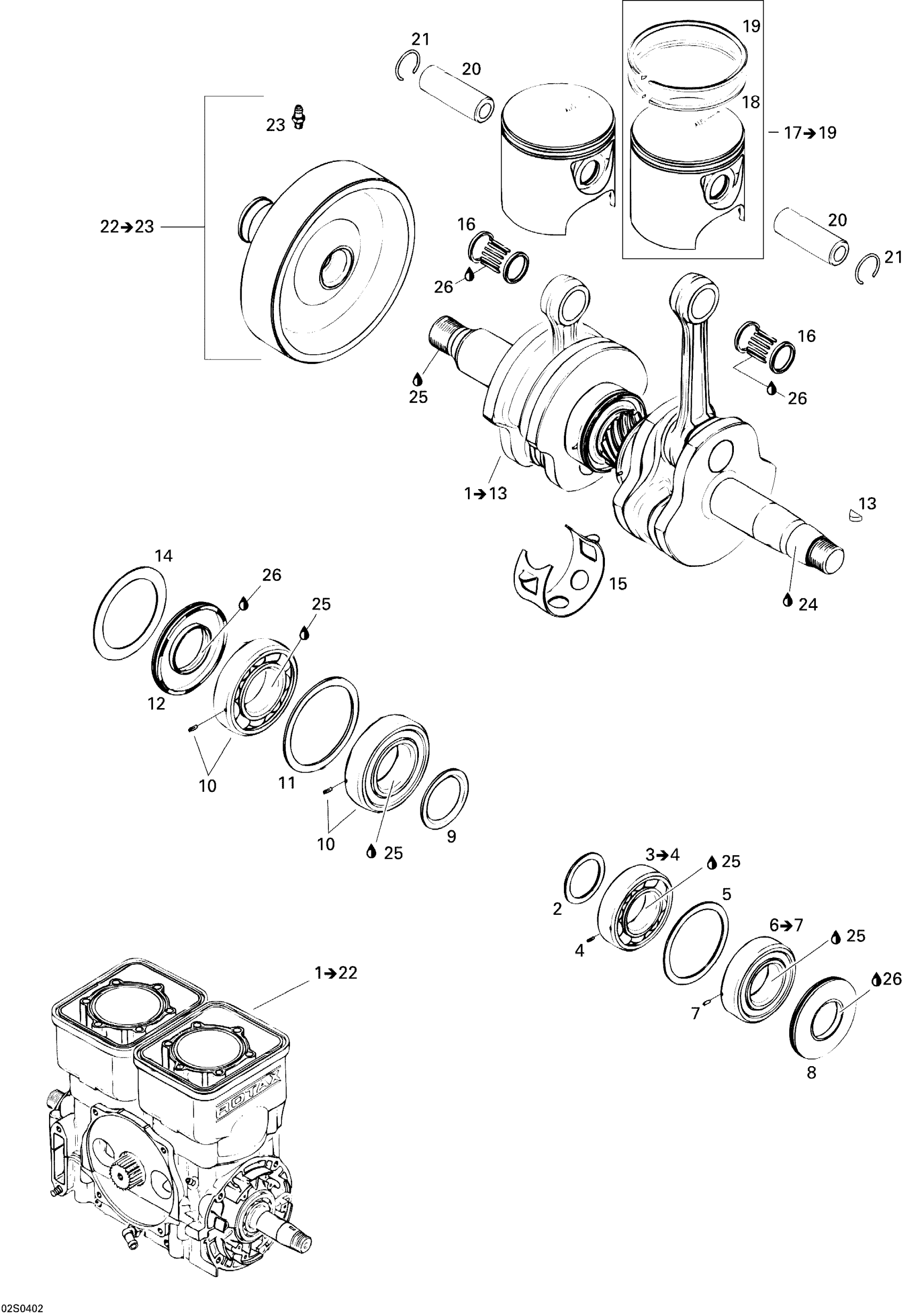

Sea-doo GTI LE, 2004 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Short Block 717 | Includes 1 to 21

420071704

Unavailable

1

Crankshaft Ass‘Y | Includes 1 to 13

420887867

Unavailable

2

RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.

420827448

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

6

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

7

Dowel Pin

420929972

Unavailable

8

Oil Seal This part replaces 290830749.

420830749

$18.54

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

11

Retaining Disk

420927710

$7.41

12

Oil Seal This part replaces 290831952.

420831952

$18.01

13

Woodruff Key

420246055

$2.43

14

RETAINING SHIM - Call your local BRP dealership

420926060

Unavailable

15

RETAINING RING - Call your local BRP dealership

420926070

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

420832420

$33.99

17

PISTON WITH RINGS, STD, 81.90 MM - Call your local BRP dealership | Includes 18 to 20

420887670

Unavailable

17

PISTON WITH RINGS, 1ST, 82.15 MM - Call your local BRP dealership

420887671

Unavailable

17

PISTON WITH RINGS, 2ND, 82.40 MM - Call your local BRP dealership

420887672

Unavailable

18

RECTANGULAR RING, STD, 82.00 MM - Call your local BRP dealership

420815080

Unavailable

18

RECTANGULAR RING, 1ST, 82.25 MM - Call your local BRP dealership

420815081

Unavailable

18

Rectangular Ring, 2nd, 82.50 mm

420815082

Unavailable

19

SEMI-TRAPEZ RING, STD, 82.00 MM - Call your local BRP dealership

420815070

Unavailable

19

SEMI-TRAPEZ RING, 1ST, 82.25 MM - Call your local BRP dealership

420815071

Unavailable

19

Semi-trapez Ring, 2nd, 82.50 mm

420815072

Unavailable

20

Piston Pin This part replaces 290916402.

420916404

$28.49

21

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

22

FLYWHEEL CLUTCH ASS'Y - Call your local BRP dealership | Includes 23 to 24

420958013

Unavailable

23

GREASE FITTING - Call your local BRP dealership

420499113

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Dow Corning 111, 150 g

413707000

$59.99
