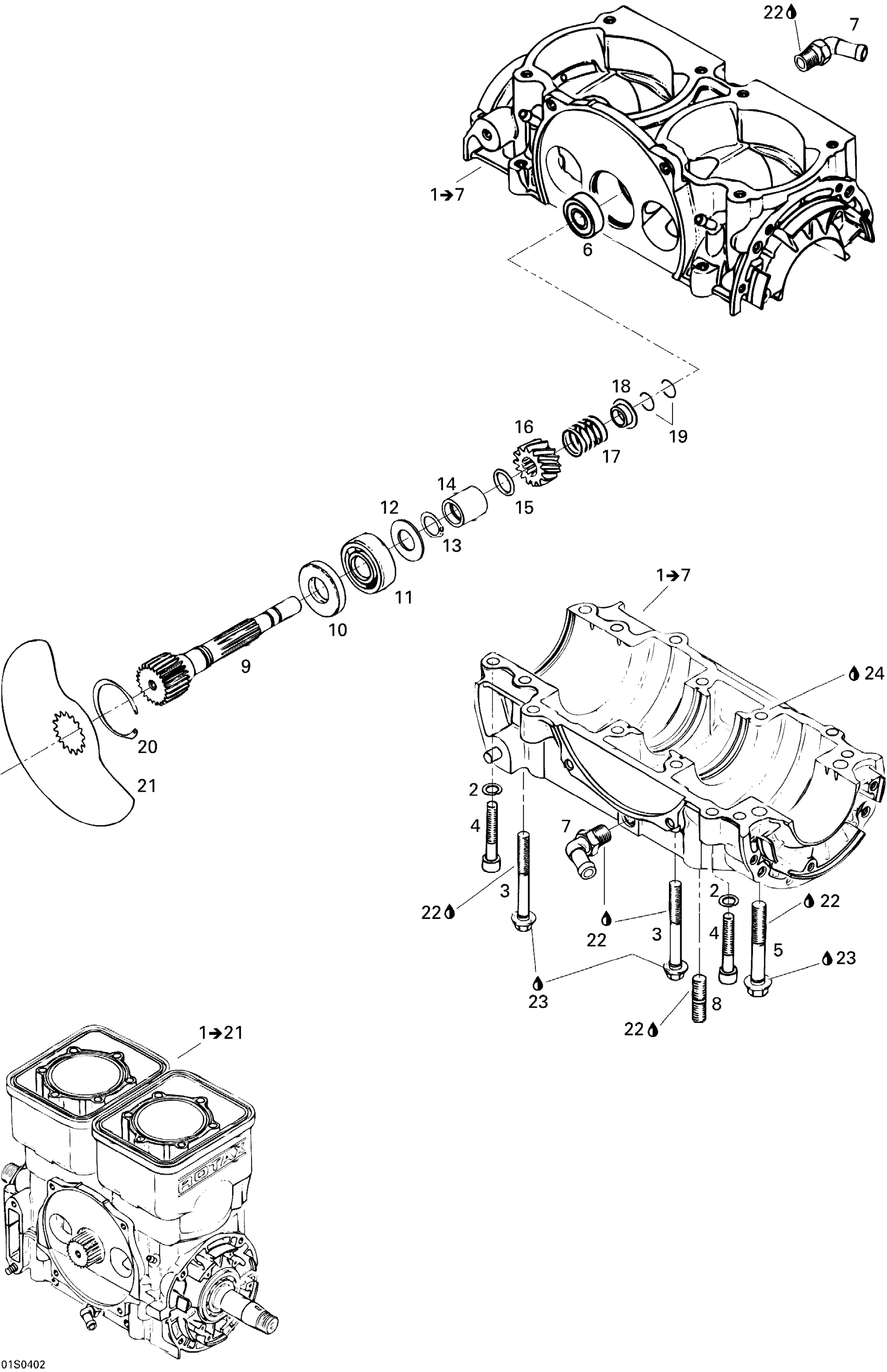

Sea-doo GTI LE, 2004 01- Crankcase, Rotary Valve Diagram

#

Description
Price

1

Short Block 717 | Includes 1 to 21

420071704

Unavailable

1

CRANKCASE 717 ASS'Y - Call your local BRP dealership | Includes 1 to 7

420890121

Unavailable

2

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

3

HEX. FLANGED SCREW M8 X 68.5 - Call your local BRP dealership

420841998

Unavailable

4

Socket Head Screw M8 X 45

205084560

$3.59

5

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

6

Ball Bearing

420932797

$19.99

7

Angular Tube 90 Degree

420922244

Unavailable

8

Stud M10 X 25

420940798

Unavailable

8

STUD M10 X 18 - Call your local BRP dealership

420840290

Unavailable

9

ROTARY VALVE SHAFT - Call your local BRP dealership

420837252

Unavailable

10

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

11

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

12

SHIM - Call your local BRP dealership

420227439

Unavailable

13

SNAP RING - Call your local BRP dealership

420845450

Unavailable

14

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

15

O-Ring

293300024

$8.57

16

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

17

SPRING - Call your local BRP dealership

420938810

Unavailable

18

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

19

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

20

Lock Ring

420945880

$4.44

21

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

22

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

23

Dow Corning 111, 150 g

413707000

$59.99

24

Loctite 5910, 300 ml

293800081

$57.99
