Description

Price

1

Seat Ass’Y, Earthen Clay | Includes 1 - 13.

269000916

Unavailable

Seat Ass’Y, Violet

269000924

Unavailable

Seat Ass’Y, Atlantic Blue

269000988

Unavailable

2

Seat Base

269000829

Unavailable

3

Was 293200062 Seal

219704366

$76.49

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Spring

269700017

$9.19

8

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

Cover And Foam, Earthen Clay

269000918

Unavailable

Cover And Foam, Violet

269000926

Unavailable

Cover And Foam, Atlantic Blue

269000989

Unavailable

11

Seat Strap, Earthen Clay

269000781

Unavailable

Seat Strap, Violet

269000802

Unavailable

Seat Strap, Atlantic Blue

269000990

Unavailable

12

Grommet

293720067

$12.99

13

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

14

Rear Seat, Earthen Clay | Includes 14 - 24.

269000917

Unavailable

Rear Seat, Violet

269000925

Unavailable

Rear Seat, Atlantic Blue

269000991

Unavailable

15

Was 293200062 Seal

219704366

$76.49

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

21

Rear Seat Cover, Earthen Clay

269000920

Unavailable

Rear Seat Cover, Violet

269000928

Unavailable

Rear Seat Cover, Atlantic Blue

269000994

Unavailable

22

RH Seat Corner, Earthen Clay

269000777

Unavailable

LH Seat Corner, Earthen Clay

269000778

Unavailable

RH Seat Corner, Violet

269000798

Unavailable

LH Seat Corner, Violet

269000799

Unavailable

RH Seat Corner, Atlantic Blue

269000992

Unavailable

LH Seat Corner, Atlantic Blue

269000993

Unavailable

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

24

Strap

269502417

$17.69

25

Rear Tray

269500990

Unavailable

26

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

27

Strap

269502417

$17.69

28

Hook

269500521

$9.09

29

Pop Rivet 3/16"

293150039

$1.49

30

Flat Washer 5 mm, Stainless

234052600

$0.77

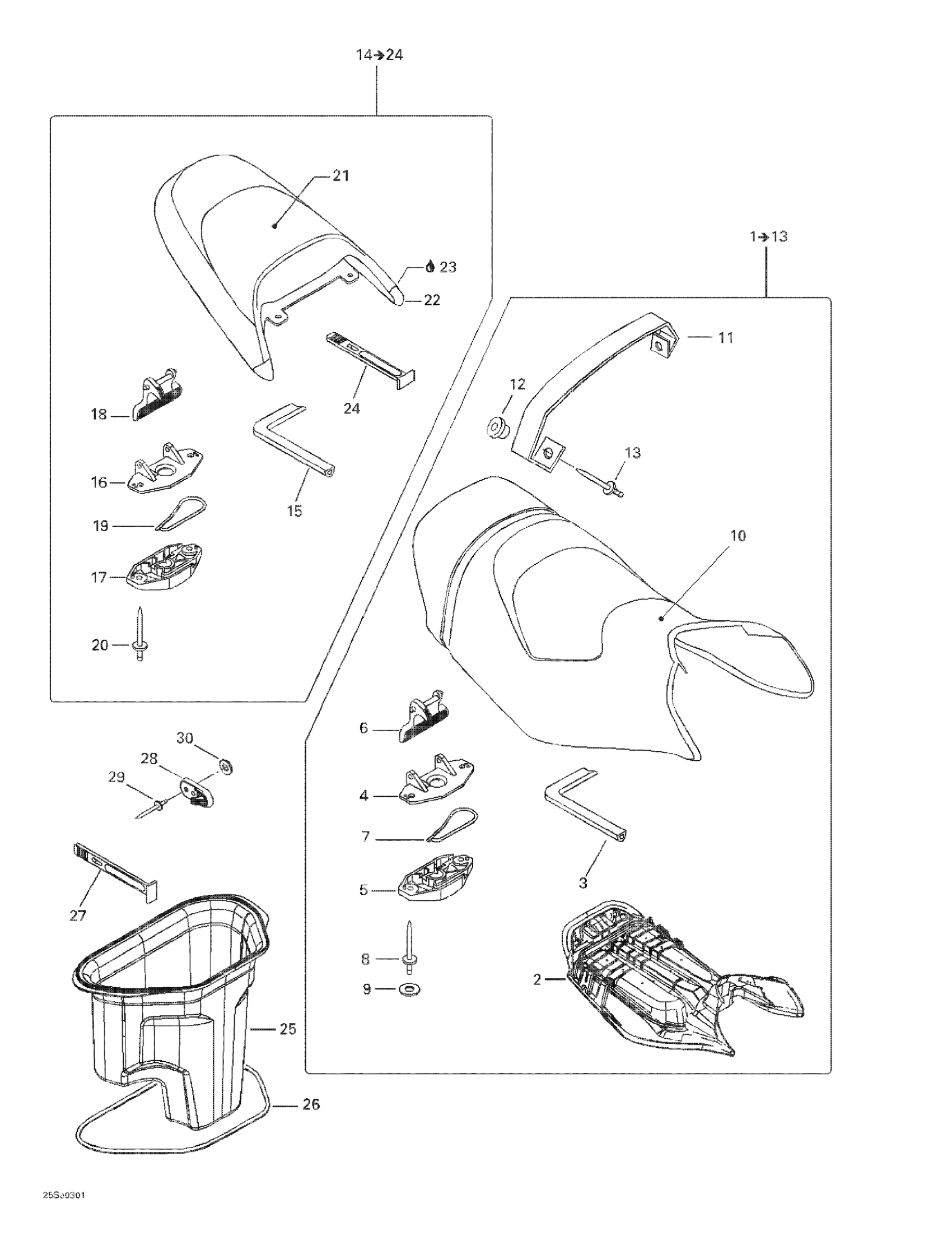

Sea-doo GTI LE, 2003 09- Seat Diagram

Seat Ass’Y, Earthen Clay | Includes 1 - 13.

Seat Ass’Y, Violet

Seat Ass’Y, Atlantic Blue

Seat Base

Was 293200062 Seal

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

RIVET 1/4 X 5/8 - Call your local BRP dealership

Stainless Flat Washer M6

Cover And Foam, Earthen Clay

Cover And Foam, Violet

Cover And Foam, Atlantic Blue

Seat Strap, Earthen Clay

Seat Strap, Violet

Seat Strap, Atlantic Blue

Grommet

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

Rear Seat, Earthen Clay | Includes 14 - 24.

Rear Seat, Violet

Rear Seat, Atlantic Blue

Was 293200062 Seal

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

RIVET 1/4 X 5/8 - Call your local BRP dealership

Rear Seat Cover, Earthen Clay

Rear Seat Cover, Violet

Rear Seat Cover, Atlantic Blue

RH Seat Corner, Earthen Clay

LH Seat Corner, Earthen Clay

RH Seat Corner, Violet

LH Seat Corner, Violet

RH Seat Corner, Atlantic Blue

LH Seat Corner, Atlantic Blue

Était Was 413705800 Loctite 414 , 29.5 c.c

Strap

Rear Tray

GASKET PAC = 1.0m - Call your local BRP dealership

Strap

Hook

Pop Rivet 3/16"

Flat Washer 5 mm, Stainless
