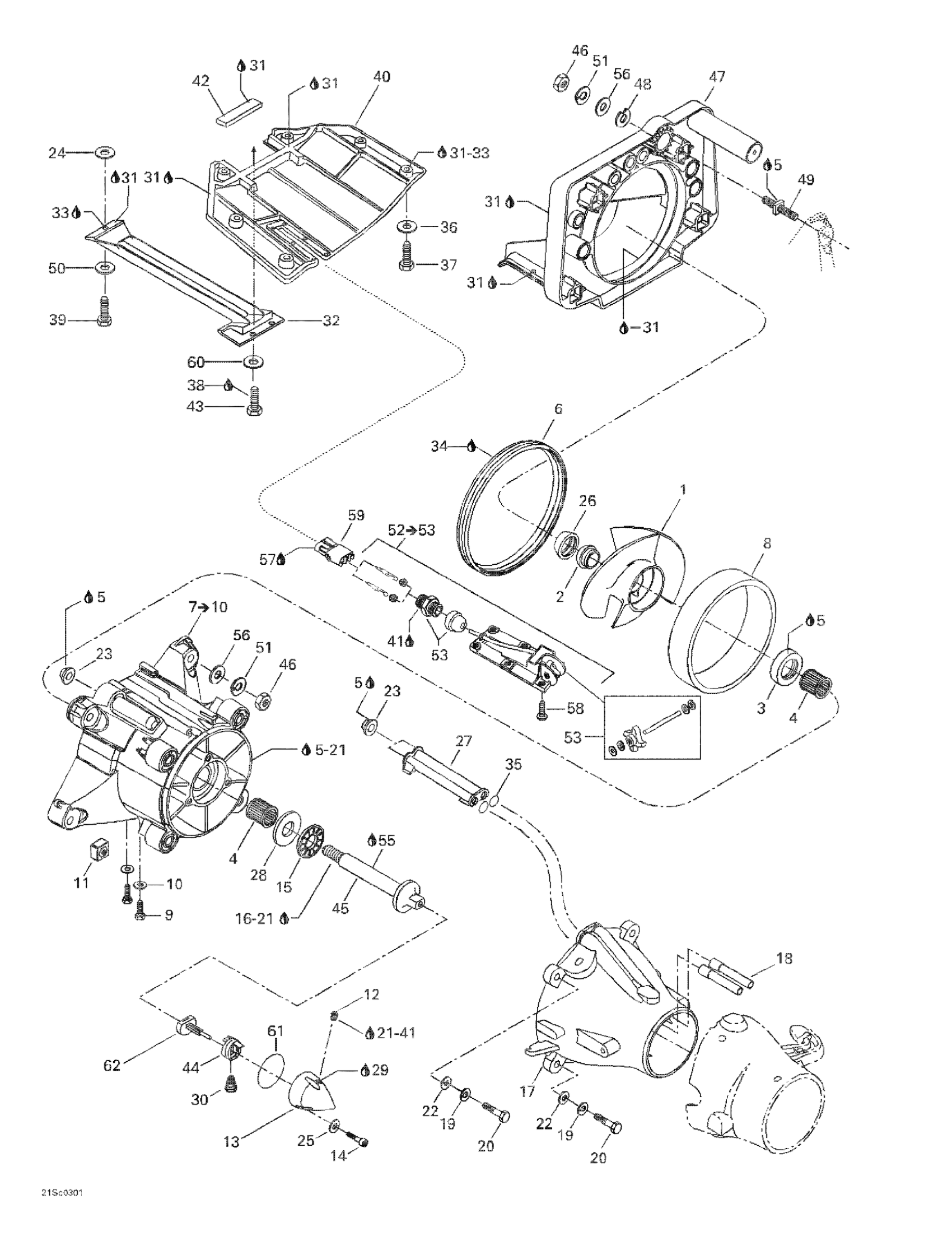

Sea-doo GTI LE, 2003 Propulsion System Diagram

#

Description
Price

1

Impeller Ass'y This part replaces 271001297.

267000199

$391.99

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Neoprene Seal

293200087

$12.63

7

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

8

Wear Ring

271000653

$58.49

9

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

10

Flat Washer M5, Stainless

234051600

$0.77

11

Square Nut M8

211100033

$17.99

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

14

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

15

Thrust-Bearing

293350022

$45.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Venturi, Black

271001284

Unavailable

18

Siphon Tube

271001133

$10.99

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Stainless, Flat Washer 8 mm

234081600

$0.55

23

Watertight Seal

293250084

$7.49

24

Flat Washer 10 mm, Stainless

234001600

$1.15

25

Stainless Flat Washer M6

234061600

$0.33

26

Impeller Ring

271000517

$9.59

27

Water Outlet

271000785

$3.80

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

SPRING - Call your local BRP dealership

271001108

Unavailable

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

32

Pump Grate

271000763

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Glue Tube, Loctite 454, 20 G

413708300

$60.99

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Loctite 271, 10 ml

293800005

$26.99

39

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

40

Riding Plate

271001306

Unavailable

Riding Plate, Black | GTI.

271001265

Unavailable

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

Hex. Screw M6 X 16

207161660

$1.59

44

SLIDER - Call your local BRP dealership

271001107

Unavailable

45

Impeller Shaft

271000965

$116.49

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support | LE

271001151

Unavailable

PUMP SUPPORT - Call your local BRP dealership | STD

271001225

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Stainless, Flat Washer 8 mm

234081600

$0.55

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

52

Speed Sensor | GTI LE / Includes 13 to 14

278001668

Unavailable

53

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

54

Paddle Wheel Kit

295500108

Unavailable

55

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

56

Flat Washer 10 mm, Stainless

234002600

$2.22

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Phillips Screw M5 x 12

250000319

$1.39

59

Female Housing, 2 Circuits

278000217

$9.59

60

Stainless Flat Washer M6

234061600

$0.33

61

O-Ring

293300011

$8.64

62

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable
