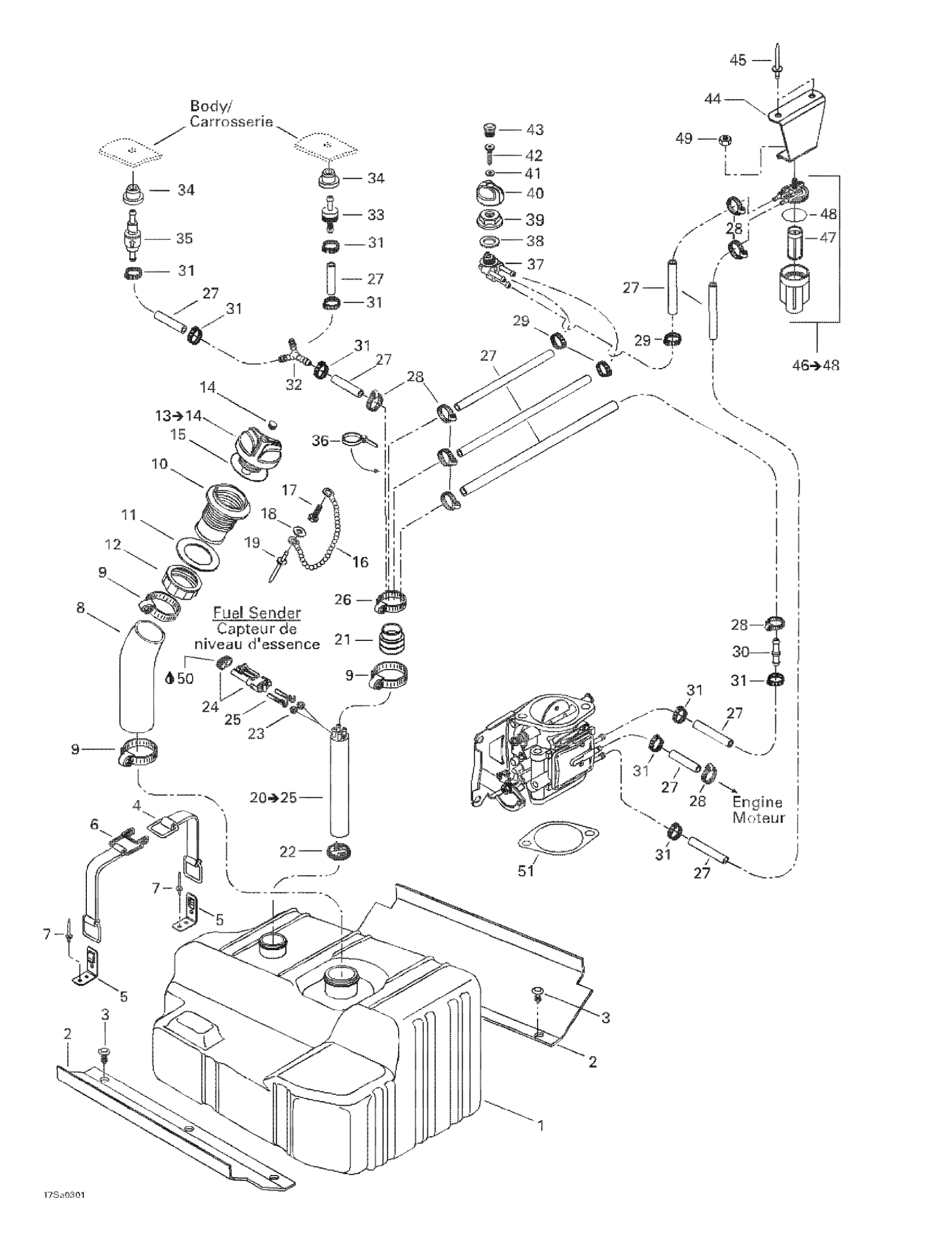

Sea-doo GTI LE, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500291

Unavailable

2

Rubber Pad

293830077

Unavailable

3

Black, Dart

293730006

$0.99

4

Fuel Tank Strap

293850036

$18.99

5

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

6

Fuel Tank Strap

293850094

$22.49

7

Avdel Rivet 3/16"

293150037

$0.56

8

Filler Hose Neck

275500520

Unavailable

9

Tridon Clamp

293650023

$13.49

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.48

18

Flat Washer M3, Stainless

234032600

$0.55

19

Pop Rivet 1/8"

390407900

$1.49

20

BAFFLE - Call your local BRP dealership | Includes 20 to 25

275500470

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.39

24

Male Connector, 2 Circuits

278000220

$15.49

25

Female Terminal

278000223

$3.19

26

Tridon Clamp

293650035

$7.29

27

Was 275500549 Hose 1/4"

219704357

$194.99

28

Tridon Gear Clamp

293650170

$1.99

29

Oetiker Clamp

293650042

$3.09

30

Straight Fitting

293710039

$7.59

31

Oetiker Gear Clamp

293650025

$3.09

32

Y-Fitting

293710059

$9.69

33

Check Valve

275500398

$10.99

34

Grommet

293720029

$1.59

35

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

36

Tie-Rap 180 mm

414115200

$0.11

37

Fuel Valve

275500098

$43.99

38

GASKET - Call your local BRP dealership

293250004

Unavailable

39

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

40

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

Fuel Valve Knob | GTI LE.

275500493

Unavailable

41

Flat Washer 4 mm

234040600

$0.55

42

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

43

Bumper Plug, Black

291000339

$2.99

Black, Cap

275500241

$3.49

44

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

45

Pop Rivet 3/16"

293150043

$2.09

46

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

47

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

48

O-Ring

275500090

$8.79

49

Hex. Elastic Stop Nut M6

232561600

$1.15

50

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

51

Gasket

204250035

Unavailable
