01- Engine Support And Muffler

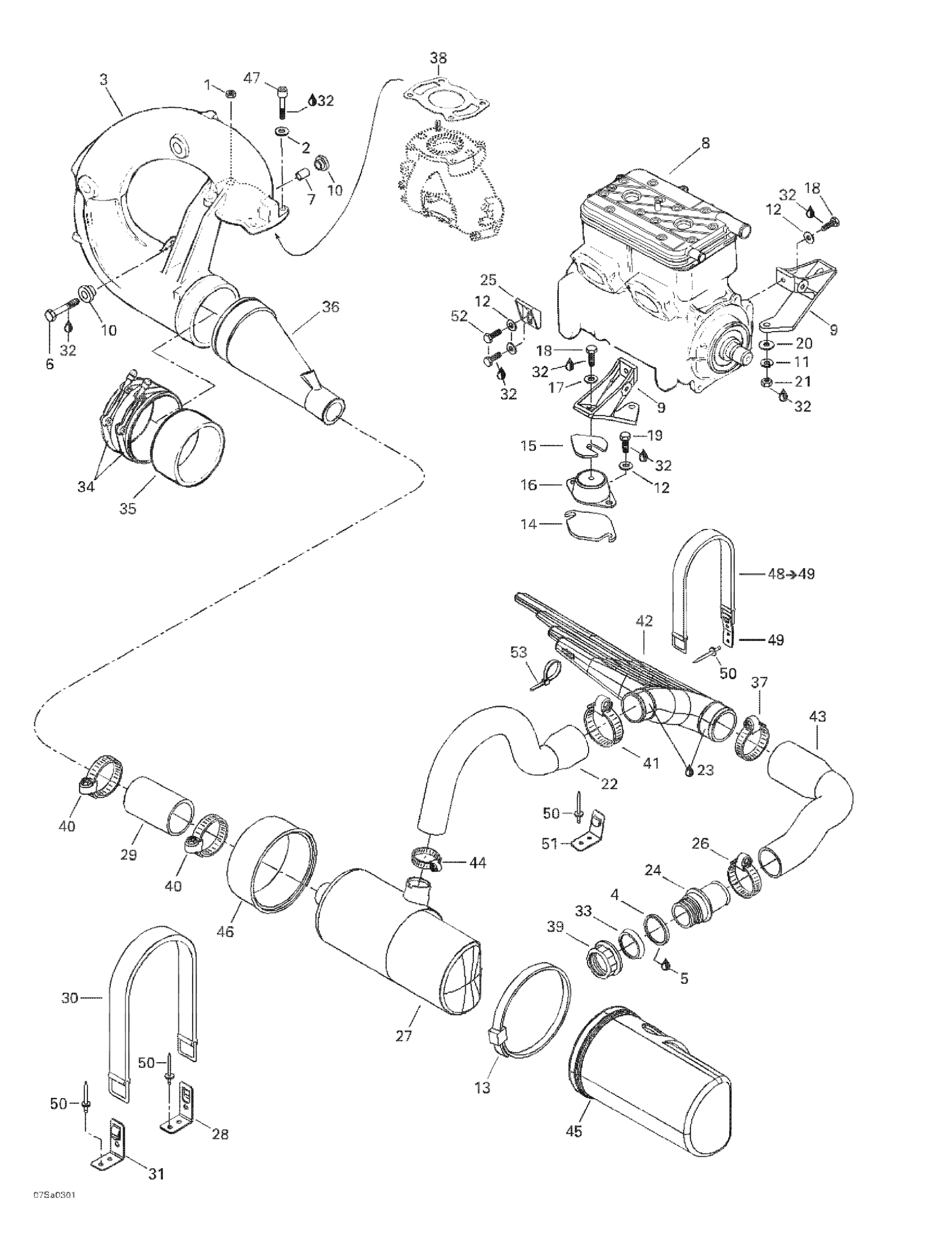

Sea-doo GTI LE, 2003 01- Engine Support And Muffler Diagram
#
1
Hex. Flange Nut M10
233101600
$5.29
2
Flat Washer
211200051
$1.68
3
Tuned Pipe Ass‘Y
274000980
Unavailable
4
GASKET - Call your local BRP dealership
293250041
Unavailable
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
Hex. Screw M8 X 40
207084060
$2.22
7
Bushing
274000114
$8.85
8
Rotax Engine 717, Silver
270000548
Unavailable
9
RH Engine Support
270000180
Unavailable
LH Engine Support
270000181
Unavailable
10
Rubber Bushing
293830031
Unavailable
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
14
Shim 0.4 mm
270000006
Unavailable
Shim 1.3 mm
270000007
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
22
Exhaust Hose
274000873
Unavailable
23
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
24
Exhaust Hose, Outlet
274001391
$29.49
25
Front Engine Support
270000179
Unavailable
26
Tridon Clamp
293650064
$8.29
27
Muffler
274000788
Unavailable
28
STRAP CLIP - Call your local BRP dealership
293850075
Unavailable
29
EXHAUST HOSE - Call your local BRP dealership
274000032
Unavailable
30
Fuel Tank Strap
293850036
$18.99
31
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
34
NORMA CLAMP - Call your local BRP dealership
293650068
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone Ass’Y
274000488
Unavailable
37
Tridon Clamp
204000079
$9.99
38
GASKET - Call your local BRP dealership
420950255
Unavailable
39
Nut 72 mm
274000224
$16.34
40
Tridon Clamp
293650023
$13.49
41
Tridon Clamp
293650179
$11.49
42
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
43
Hose Exhaust
274000874
Unavailable
44
Tridon Clamp
293650023
$13.49
45
Rear Cover Muffler
274000806
Unavailable
46
Front Cover Muffler
274000803
Unavailable
47
SOCKET HEAD SCREW M10 X 30 - Call your local BRP dealership
205503060
Unavailable
48
Fuel Tank Strap | Includes 48 - 49.
293850026
Unavailable
49
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
50
Avdel Rivet 3/16"
293150037
$0.56
51
Strap Clip
293850030
$11.12
52
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
53
Tie-Rap 180 mm
414115200
$0.11
