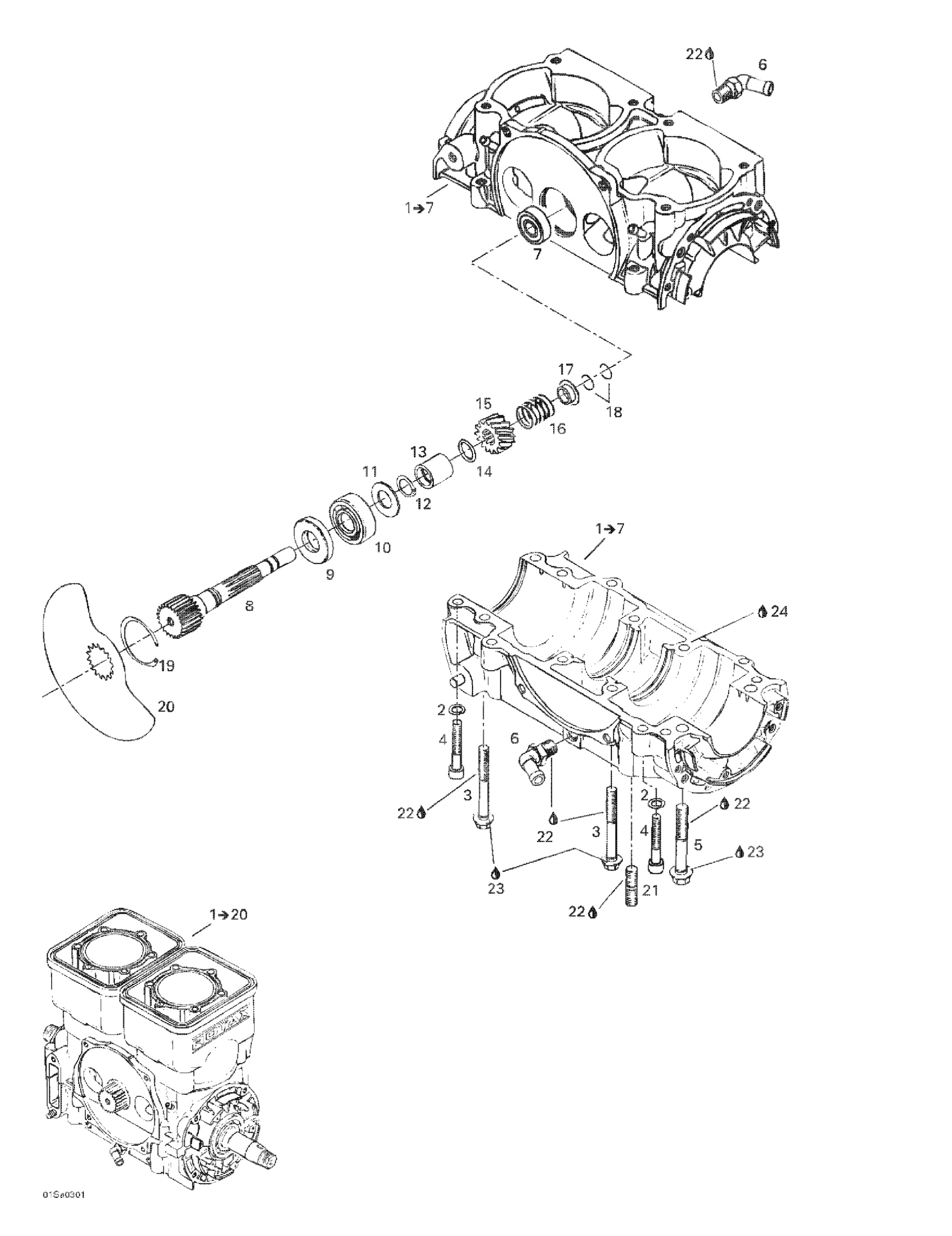

Sea-doo GTI LE, 2003 Crankcase, Rotary Valve Diagram

#

Description
Price

1

Short Block Ass‘Y, Silver | Includes 1 - 20.

420071703

Unavailable

1

Crankcase Ass'y 717, Silver | Includes 1 - 7.

420887199

Unavailable

2

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

3

HEX. FLANGED SCREW M8 X 68.5 - Call your local BRP dealership

420841998

Unavailable

4

Socket Head Screw M8 X 45

205084560

$3.59

5

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

6

Angular Tube

420922242

$14.83

7

Ball Bearing

420932797

$19.99

8

ROTARY VALVE SHAFT - Call your local BRP dealership

420837252

Unavailable

9

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

10

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

11

SHIM - Call your local BRP dealership

420227439

Unavailable

12

SNAP RING - Call your local BRP dealership

420845450

Unavailable

13

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

14

O-Ring

293300024

$8.57

15

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

16

SPRING - Call your local BRP dealership

420938810

Unavailable

17

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

18

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

19

Lock Ring

420945880

$4.44

20

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

21

STUD M10 X 25, PTO - Call your local BRP dealership

290940798

Unavailable

STUD M10 X 18 - Call your local BRP dealership

420840290

Unavailable

22

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

23

Dow Corning 111, 150 g

413707000

$59.99

24

Loctite 5910, 300 ml

293800081

$57.99

25

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable
