10- Electrical Harness - Main Harness - 278003317 (Refer to Electrical System for Model)

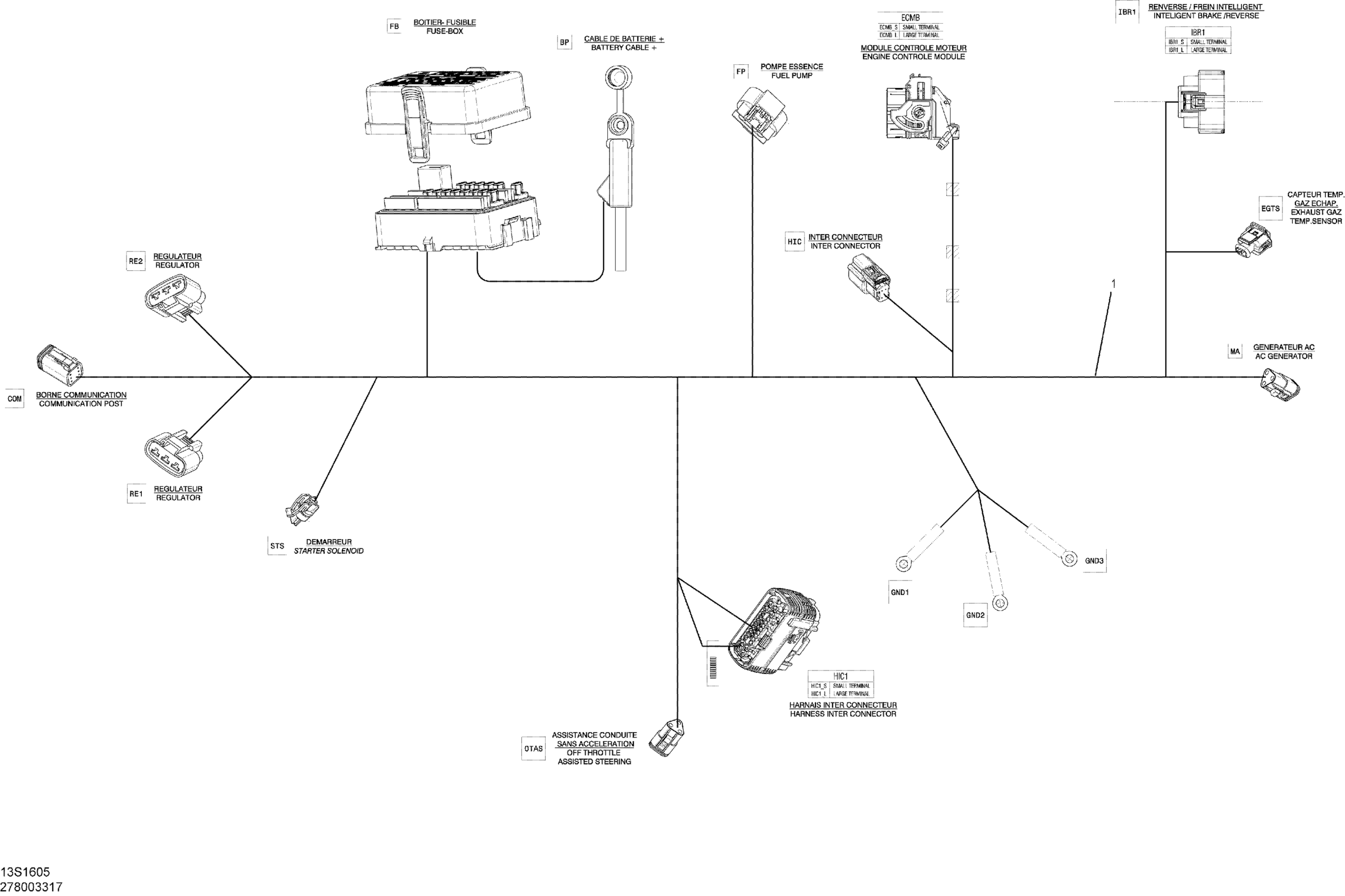

Sea-doo GTI-GTR-GTS, 2017 10- Electrical Harness - Main Harness - 278003317 (Refer to Electrical System for Model) Diagram
#
1
Main Harness
278003317
$1.00
BP
Battery Cable
278002815
$45.49
COM
Housing, 6 Circuits
278002896
$14.99
COM
Male Wedge, 6 Circuits
515175678
$5.39
COM
Sealing Cap
293000052
$3.19
COM
Female Terminal
278000632
$2.09
COM
Female Terminal
278001665
$4.55
ECMB_L
Plug
710001593
$2.21
ECMB_L
Female Terminal
710001590
$2.09
ECMB_L
Female Terminal
710001727
$3.19
ECMB_S
Cover, 48 positions
710001591
$12.18
ECMB_S
Female Terminal Housing, 48 Circuits
710001588
$48.49
ECMB_S
Plug
710001592
$2.21
ECMB_S
Female Terminal
710001589
$2.21
EGTS
Housing
710001136
$13.22
EGTS
Seal
415128501
$1.89
EGTS
Female Terminal
710001137
$4.55
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Fuse Cover This part replaces 278002529.
278002823
$14.83
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Fuse Base Ass'y This part replaces 278002878.
278002946
$33.99
FB
Seal Plug
278002880
$7.86
FB
Relay 30 Amp
278003828
$13.99
FB
Wire Seal
278000218
$4.39
FB
Wire Seal
710000048
$7.69
FB
Wire Seal
278001065
$7.69
FB
Female Terminal
710000890
$4.55
FB
Female Terminal
710000918
$7.69
FB
Female Terminal
278002578
$1.04
FP
Male Housing, 4 Circuits
278002185
$7.90
FP
Wire Seal
278002186
$5.50
FP
Female Terminal
278002187
$6.39
GND1
Open Barrel
278000992
$2.21
GND2
Open Barrel Terminal
278001392
$4.79
GND3
Open Barrel Terminal
278001392
$4.79
HIC
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278002854
Unavailable
HIC
Female Terminal | Not Shown
278002642
$3.79
HIC1_L
Female Terminal
278002455
$3.79
HIC1_S
HOUSING - Call your local BRP dealership
278002451
Unavailable
HIC1_S
Female Terminal | Not Shown
278002453
$5.79
HIC1_S
Female Terminal | Not Shown
278002642
$3.79
IBR1_L
Seal Plug
278002880
$7.86
IBR1_L
Seal
278003046
$0.92
IBR1_L
Female Terminal
278003045
$2.99
IBR1_S
Female Housing ,16 Circuits
278003484
$17.59
IBR1_S
Sealing Cap
278002860
$1.79
IBR1_S
Female Terminal | Not Shown
278002453
$5.79
MA
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
MA
Female Lock, 3 Circuits
515175676
$5.39
MA
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
OTAS
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
OTAS
Female Lock
409207200
$4.39
OTAS
Female Terminal
278001665
$4.55
RE1
Housing, 3 Circuits
710000880
$21.99
RE1
Seal
710000881
$17.99
RE1
Female Terminal
710000877
$9.12
RE2
Female Housing, 3 Circuits
710000879
$25.99
RE2
Cap
710000882
$11.49
RE2
Seal
710000881
$17.99
RE2
Female Terminal
710000877
$9.12
STS
Female Housing, 2 Circuits
515177192
$9.12
STS
Wire Seal
710001163
$7.69
STS
Female Terminal
710001164
$8.89
