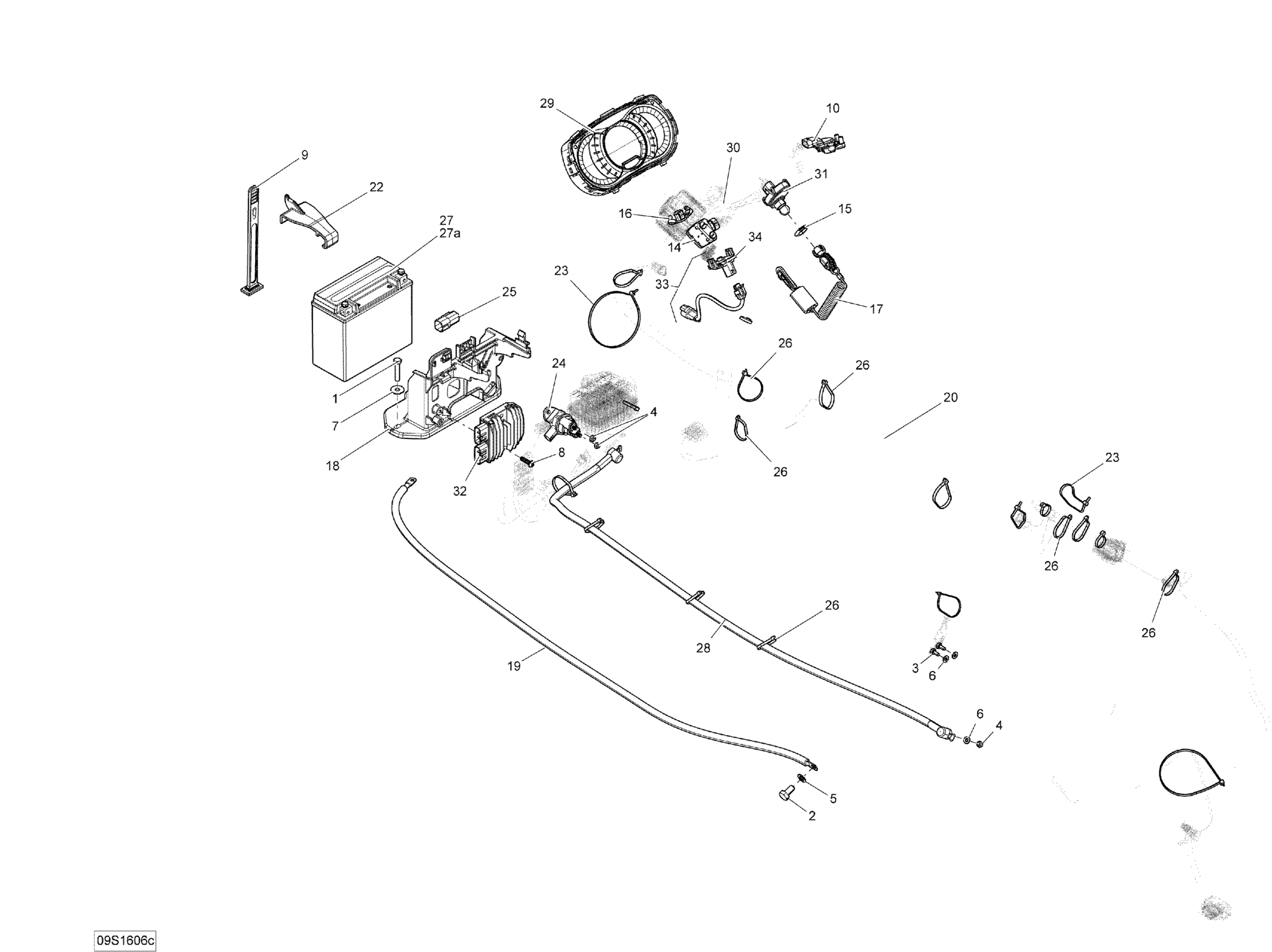

Description

Price

1

Hex. Screw M8 X 40

207184060

$1.85

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

4

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Flat Washer 10 mm, Stainless

234000600

$1.07

6

Stainless Flat Washer M6

234061600

$0.25

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Torx Screw Plastite M6

250000466

$5.62

9

Strap

269502417

$14.27

10

Throttle Position Sensor

278002283

$94.22

14

Switch LH Sport/Eco

278002768

$66.92

15

Safety Nut (DESS Switch)

278002963

$2.72

16

O.T.A.S Actuator

278003537

$33.12

17

Anti-Theft Tether Cord

278003403

$58.47

18

Batt. Support | Except Engine 900HO ACE

278003136

$22.72

19

Battery Ground Cable

278003270

$41.51

20

Main Harness

278003335

$488.77

22

Clip

278003521

$14.27

23

Tie Wrap 368 mm

293750008

$0.85

24

Starter Relay

278003012

$35.07

25

Diagnostic Connector

278002704

$15.57

26

Tie-Rap 180 mm

414115200

$0.09

27

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

27a

Battery Bolt Kit

250000282

$2.95

28

Cable-Starter

278003370

$36.89

29

Central Information Cluster

278003101

$509.57

30

Steering Harness Ass'y | GTS

278003264

$245.67

31

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

33

O.T.A.S. Sensor Ass'y

278003009

$86.42

34

O.T.A.S. Sensor

278003008
