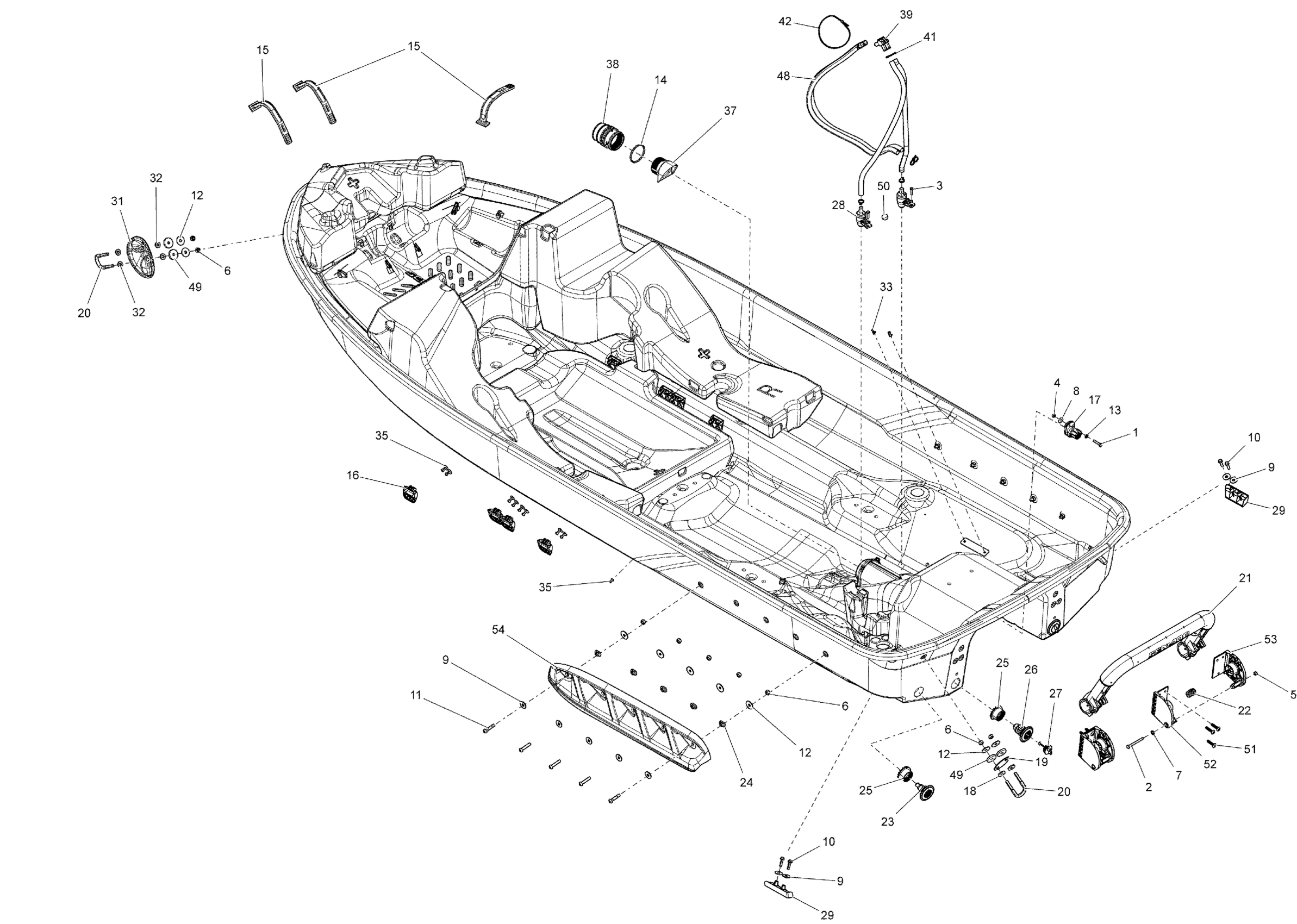

Sea-doo GTI-GTR-GTS, 2016 09- Hull Diagram
#
1
Hex. Screw M6 X 30
207063060
$1.89
2
Hex. Screw M6 x 65 | Produced Before February 01 2010
207066560
$2.11
3
Hex. Screw 10-14 X 7/8”
211000023
$3.59
4
Elastic Stop Nut M6, Brass
232561200
$4.23
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Stainless Flat Washer M6
234061600
$0.33
8
Flat Washer M6, Stainless
234062600
$0.77
9
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Torx Screw M8 X 40, Stainless
250000452
$3.91
12
Flat Washer 8 mm, Stainless
250200175
$3.06
13
Sealing Washer
250200114
$4.44
14
O-Ring
267000477
$6.67
15
Strap
269502417
$17.69
16
Strap Retaining
270000933
$6.99
17
Cable Adaptor Ass'y
277001881
$19.99
18
Flat Washer
279000336
$11.57
19
Black, Finition Plate
291001386
$10.99
20
U-Clamp
292000933
$59.49
21
Overmolded Bar
292001204
$159.99
22
Spring
292001259
$27.99
23
Drain Neck Ass'y
292001317
$27.99
24
Spacer Sponson
292001349
$10.99
25
Bushing
292001371
$17.49
26
Drain Ass'y
292001580
$16.49
27
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
28
Bailer Pick-up Ass'y | Includes 540 to 540c
292001636
$25.99
29
RH Trim Tab
292001812
$18.49
29
LH Trim Tab
292001811
$18.49
31
Black Shell
292001837
$20.99
32
Flat Washer M8.5 x 18
293050001
$3.07
33
Avdel Rivet 3/16"
293150037
$0.56
35
Pop Rivet 3/16"
293150123
$4.29
37
Hull Insert
293450335
$22.99
38
Hull Insert
293450339
$22.99
39
Fitting Elbow 90°
293710152
$18.49
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Tie Wrap 368 mm
293750008
$1.04
48
Was 275500008 Hose 12 mm
219704356
$20.49
49
Rubber Washer
293830037
$2.68
50
Floating Ball
293830080
$7.19
51
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
52
A Section Support
292001509
$59.99
53
B Section Support
292001510
$59.99
54
RH Sponson
292001878
$93.99
54
LH Sponson
292001877
$93.99
