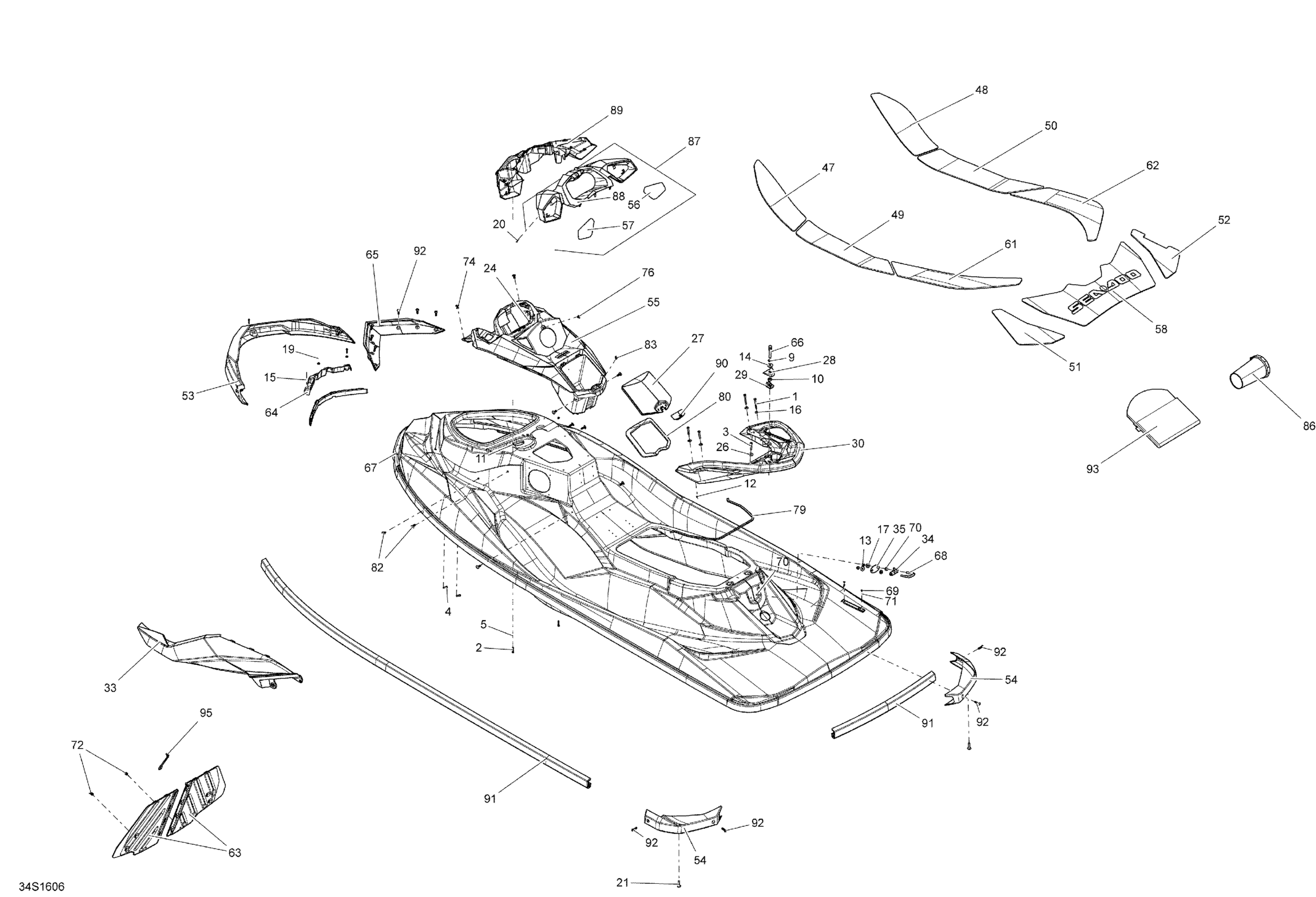

Sea-doo GTI-GTR-GTS, 2016 09- Body Diagram
#
1
Hex. Screw M6 x 55
207065560
$1.01
2
Hex. Flange Screw M5 X 30
207153060
$1.99
3
Hex. Screw M6 X 40
207164060
$3.38
4
Hex. Screw 10-14 X 7/8”
211000023
$3.59
5
Flat Washer | XT
211200035
$0.55
9
Hex. Jam Nut M10
232100600
$2.22
10
Elastic Stop Nut M10, Brass
232501200
$2.64
11
Elastic Stop Nut 5 mm
232551200
$1.47
12
Elastic Stop Nut M6, Brass
232561200
$4.23
13
Hex. Elastic Nut M8 Brass
232581200
$2.22
14
Flat Washer 10 mm, Stainless
234002600
$2.22
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
Flat Washer M6, Stainless
234062600
$0.77
17
Flat Washer 8 mm, Stainless
234082600
$2.43
19
Hex. Flange Screw K40 X 25
241142560
$2.64
20
Flange Torx Screw K40 X 16
250000287
$2.11
21
Hexagonal Cap Screw M6 X35
250000399
$4.44
24
Torx Screw K40 X 16 | Canada/USA
250000735
$3.91
26
Flat Washer M6.6 X 22
250200022
$2.72
27
Deep Black, Glove Door Ass'y | Includes 840 TO 840c
269502140
$65.99
28
Seat Stud Spacer
269002125
$8.19
29
SEAT STUD SUPPORT - Call your local BRP dealership
269002126
$8.19
30
Black, Rear Handle Ass'y
291004625
$142.99
33
YELLOW RH COSMETIC PANEL - Call your local BRP dealership | Model GTR
269502185
Unavailable
33
Yellow LH Cosmetic Panel | Model GTR
269502186
$204.99
33
White RH Cosmetic Panel This part replaces 269501812.
269502191
$149.99
33
White RH Cosmetic Panel This part replaces 269501812.
269502191
$149.99
33
White RH Cosmetic Panel This part replaces 269501812.
269502191
$149.99
33
WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813.
269502192
Unavailable
33
WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813.
269502192
Unavailable
33
WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813.
269502192
Unavailable
33
Manta Green RH Cosmetic Panel
269502189
$204.99
33
Manta Green LH Cosmetic Panel
269502190
$204.99
33
MALDIVES BLUE RH COSMETIC PANEL - Call your local BRP dealership | Model GTI White/Maldives Blue
269502187
Unavailable
33
MALDIVES BLUE LH COSMETIC PANEL - Call your local BRP dealership | Model GTI White/Maldives Blue
269502188
Unavailable
33
Deep Pewter RH Cosmetic Panel | Model GTI LTD 155
269502167
$284.99
33
DEEP PEWTER LH COSMETIC PANEL - Call your local BRP dealership | Model GTI LTD 155
269502168
Unavailable
34
Hook | Package LTD
291002351
$69.99
35
Black, Finition Plate
291001386
$10.99
47
Front Carpet LH
291003058
$24.99
48
Front Carpet RH
291003059
$24.99
49
Front Center Carpet LH
291003060
$28.49
50
Front Center Carpet RH
291003061
$28.49
51
Rear Carpet LH
291003062
$20.49
52
Rear Carpet RH
291003063
$20.49
53
Front Bumper This part replaces 291005401.
291004277
$76.49
54
Black, Corner Bumper This part replaces 291004152.
291004278
$33.99
54
Black, Corner Bumper This part replaces 291004153.
291004279
$33.99
55
Console
291004276
$134.99
56
Mirror RH, With Double-Face Tape
291003090
$48.49
57
Mirror LH, With Double-Face Tape
291003091
$48.49
58
Swim Platform Carpet
291003057
$41.49
58
Swim Platform Carpet
291003057
$41.49
58
Swim Platform Carpet
291003096
$88.99
58
Swim Platform Carpet
291003096
$88.99
61
Rear Center Carpet LH
291003329
$34.99
62
Rear Center Carpet RH
291003330
$34.99
63
Divider Ass'y
291004572
$104.99
64
Bumper Support | Package SE Manta Green
291003704
$21.99
65
Deep Black, Body Deflector
291004273
$26.99
66
Stud Seat
291003877
$48.99
67
Deck Nose
291003897
$18.99
68
U-Clamp
292000933
$59.49
69
Black, Snap Cap
293000014
$1.09
70
Flat Washer M8.5 x 18
293050001
$3.07
71
Rivet 1/8"
293150016
$0.40
72
Tuflok Plastic Rivet
293150230
$1.47
74
Pop Rivet 3/16"
293150123
$4.29
76
Pop Rivet 3/16
293150186
$2.09
79
Gasket 3000Mm Long
219704378
$26.49
80
Gasket
293250236
$41.49
82
Black, Dart
293730006
$0.99
83
Rubber Bumper
293830005
$8.09
86
Safety Kit | Package LTD
295100330
$22.49
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Manta Green, Bezel Ass'y | Includes 60 TO 60c
291004264
$94.99
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
87
Bezel Ass'y | Model GTR
291004262
$93.99
88
Bezel Ass'y | Model GTR
291004262
$93.99
89
Deep Black, Mirror Support
291004271
$48.99
90
Black, Latch
264000164
$15.99
91
Lateral Bumper
291003872
$148.49
92
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
93
Bag | Package LTD
269001936
$64.99
95
Holding Strap
269502111
$18.49
