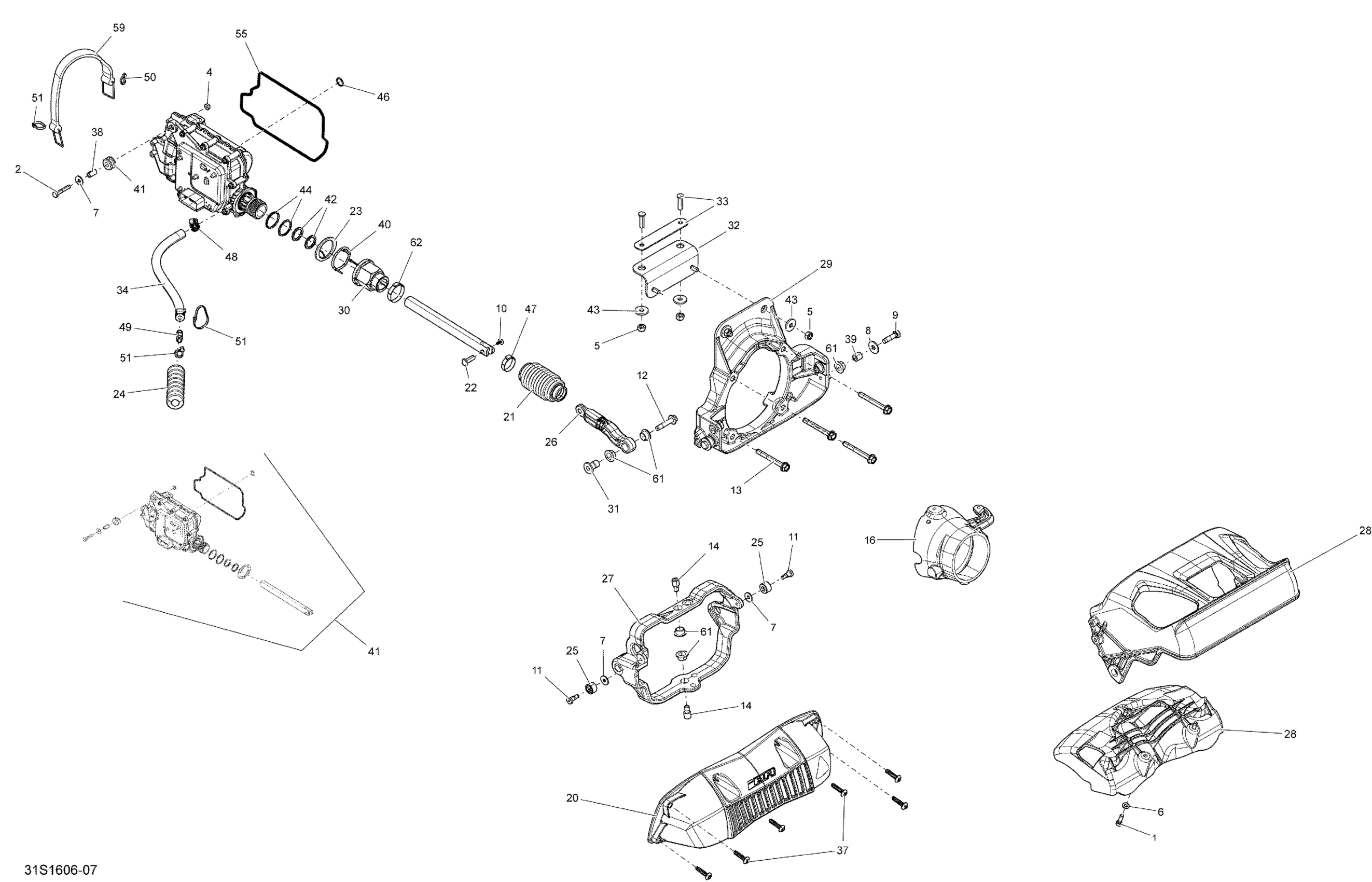

Sea-doo GTI-GTR-GTS, 2016 05- Reverse Diagram
#
1
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
2
Hex. Screw M6 X 35
207063560
$2.22
4
Elastic Stop Nut M6, Brass
232561200
$4.23
5
Hex. Elastic Nut M8 Brass
232581200
$2.22
6
Stainless Flat Washer M6
234061600
$0.33
7
Flat Washer M6, Stainless
234062600
$0.77
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
10
Hexalob Screw M4 X 10
250000565
$2.11
11
Screw-Socket Shoulder M8X8
250000775
$8.29
12
Hex. Screw Flange DIN.6921 S.Grip
250000834
$3.91
13
Screw-Hex.Flange DIN.6921 S.Grip
250000835
$3.91
14
Screw Socket S.Grip
250000837
$9.09
16
Black Jet Pump Nozzle
267000732
$99.99
16
Steer Nozzle, Black
267000745
$99.99
20
Guard
268000162
$29.99
21
Boot
268000186
$27.49
22
Shoulder Pin
268000309
$19.99
23
Gasket
268000208
$15.37
24
Inner Boot This part replaces 268000345.
268000211
$12.06
25
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
26
Linkage Arm
268000256
$22.49
27
Trimming Ring
268000247
$95.99
28
Gate Reverse Ass'y | Includes 280 TO 280i
268000296
$129.99
29
Bracket
268000266
$91.99
30
IBR Nut
268000308
$12.59
31
Bushing
268000269
$16.87
32
Reverse Bracket
268000304
$18.99
33
Ass'y Bracket
268000271
$11.49
34
Was 509000407 Hose 8 mm
219704420
$50.99
37
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
38
Spacer
271001020
$12.99
39
Spacer
271001039
$16.49
40
Rubber Gasket
277001977
$2.61
41
Actuator | Includes 10 to 10j
278003606
$829.99
42
O-Ring
279000108
$6.03
43
Flat Washer
279000336
$11.57
44
O-Ring
293300107
$1.01
46
O-Ring
293300187
$4.89
47
Crimp Clamp
293650099
$4.29
48
Tridon Gear Clamp
293650171
$3.09
50
Tie Wrap 94 mm | 4X4
293750001
$1.03
51
Tie Wrap 142 mm
293750002
$1.25
55
Not Available As Spare Part - Friction Washer
Unavailable
59
Fuel Tank Strap
293850095
$19.99
61
Venturi Bushing
293900007
$5.45
62
Oetiker Gear Clamp, 36.5-706R
509000529
$9.95
