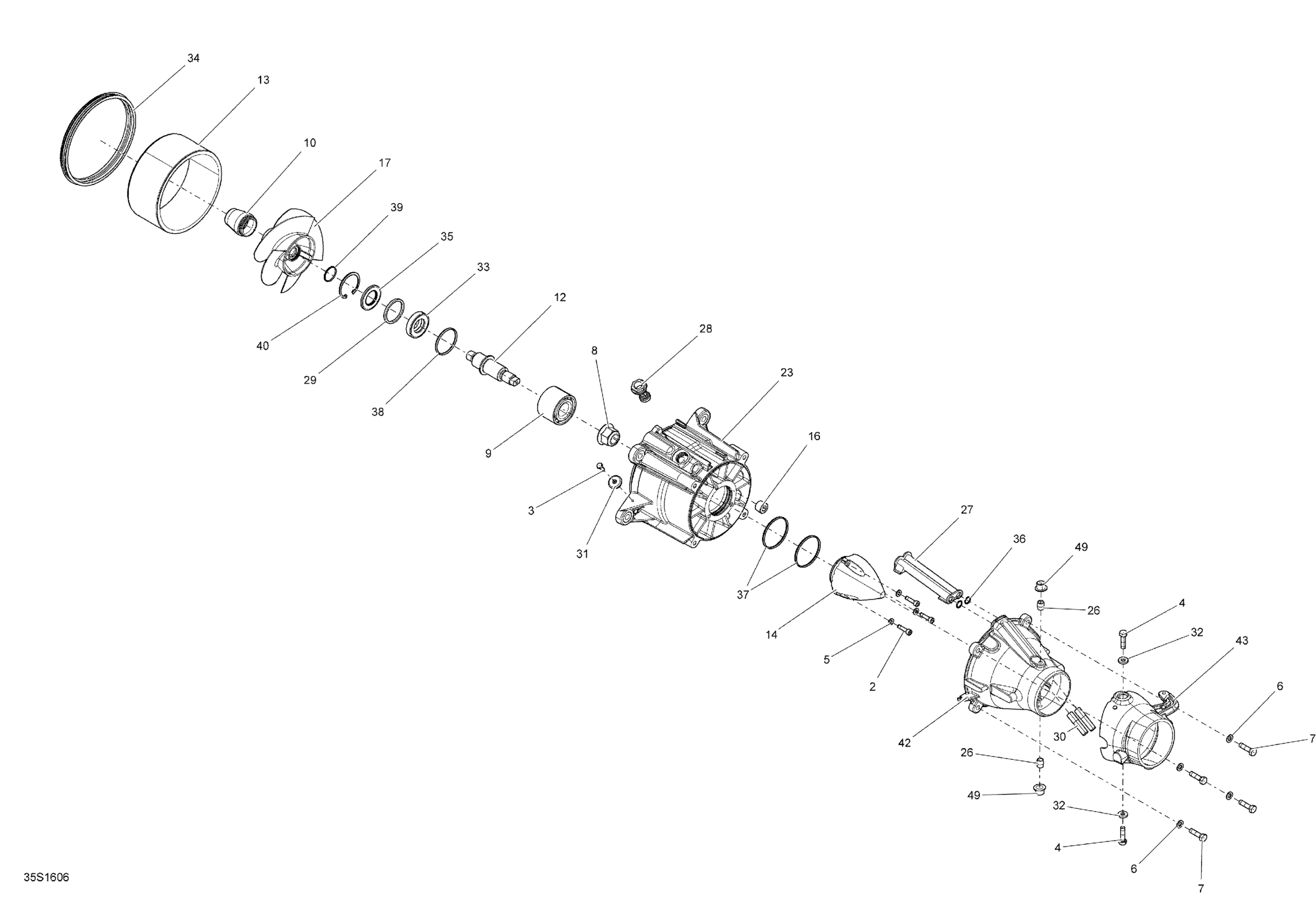

Sea-doo GTI-GTR-GTS, 2016 Pump Diagram

#

Description
Price

2

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

3

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

4

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

5

Stainless Flat Washer M6

234061600

$0.33

6

Flat Washer M8, Stainless

234080600

$1.48

7

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

8

Elastic Flange Nut M20

250100104

$12.66

9

Angled Bearing This part replaces 267000030.

267000900

$80.99

10

Guard

271002228

$12.99

12

Impeller Shaft

267000388

$116.49

13

Wear Ring

267000372

$84.99

13

Wear Ring

267000419

$84.99

14

Impeller Cover

267000428

$18.49

16

Black, Plastic Plug

267000469

$7.59

17

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$391.99

17

Impeller Ass'y | GTR Model

267000801

$391.99

23

Impeller Housing

271002018

$294.99

26

Sleeve

271001816

$14.99

27

Water Outlet

271000785

$3.80

28

Plug | Includes 370z to 370z1

267000282

$19.49

29

Spacer

271001393

$8.59

30

Siphon Tube

271001885

$2.49

31

Anode Zinc

271001920

$15.99

32

Flat Washer M8.5 x 18

293050001

$3.07

33

Seal

271002071

$33.99

34

Neoprene Seal

293200087

$12.63

35

Oil Seal

293200089

$19.99

36

O-Ring

293300013

$8.18

37

O-Ring

293300086

$3.59

38

O-Ring

293300090

$7.20

39

O-Ring

293300114

$15.89

40

Circlip

293370038

$8.79

42

Venturi | Without IBR

267000789

$211.99

42

Venturi | With IBR

267000864

$211.99

42

Black Venturi

267000844

$211.99

43

Not Available As Spare Part - Friction Washer

Unavailable

49

Venturi Bushing

293900001

$7.62
