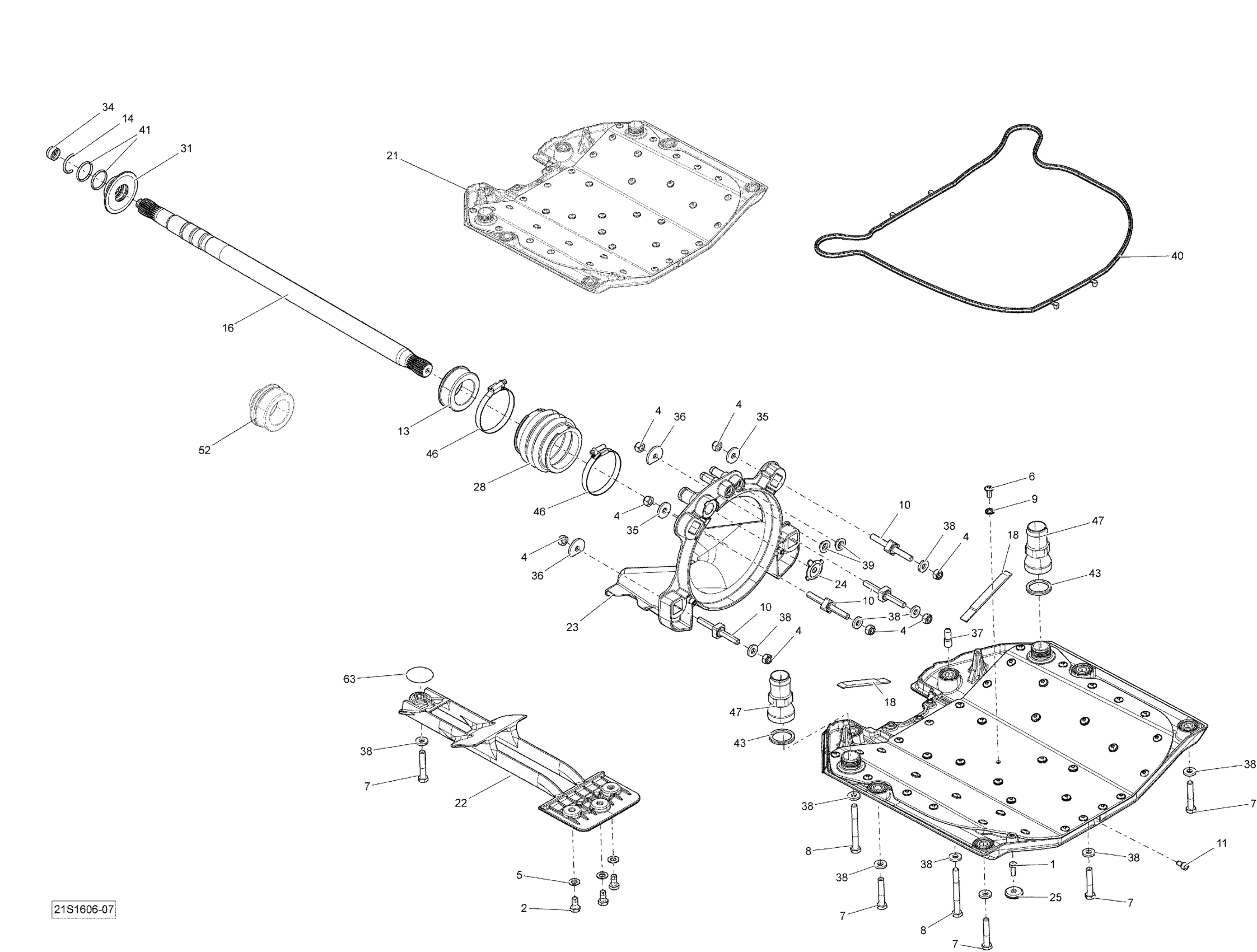

Sea-doo GTI-GTR-GTS, 2016 Propulsion Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

2

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.83

4

Hex. Elastic Nut M8 Brass

232581200

$1.29

5

Stainless, Flat Washer 8 mm

234081600

$0.46

6

Torx Screw M6 X 14

250000384

$6.15

7

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

8

Hexagonal Head Cap Screw M8 X 75

250000812

$2.35

9

Sealing Washer

250200114

$3.61

10

Square Stud

250300046

$11.91

11

Socket Drain Plug M6 X 12

250500005

$11.74

13

Not Available As Spare Part - Friction Washer

Unavailable

14

C-Clip

271001575

$4.54

14

C-Clip

271001577

$2.68

16

Drive Shaft

271001719

Unavailable

16

Drive Shaft This part replaces 271001534.

271001724

$265.82

18

Gasket, Neoprene 2000Mm Long

219704476

$12.64

21

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$181.32

22

Pump Grate

271001969

$42.87

23

Pump Support

271001964

$33.12

24

Reducer, Green This part replaces 271001586.

271002029

$12.82

25

Anode Zinc

271001920

$11.43

28

Bellow This part replaces 271001422.

271001933

$18.82

31

Carbon Ring Kit | Includes 280b to 280b5

295501202

$66.27

31

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$77.32

34

Drive Shaft Plug

272000173

$7.02

35

Flat Washer

279000336

$8.35

36

Flat Washer

279000326

$3.85

37

Cap Plug

293000105

$3.38

38

Flat Washer M8.5 x 18

293050001

$1.29

39

Watertight Seal

293250084

$5.81

40

Seal

293250235

$6.88

41

O-Ring

293300044

$0.86

41

O-Ring

293300107

$0.83

43

O-Ring

293300121

$6.18

46

Norma Clamp

293650079

$8.89

47

Straight Plastic Fitting

293710111

$6.88

52

Carbon Ring Kit | Includes 280b to 280b5

295501202

$66.27

52

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$77.32

63

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable
