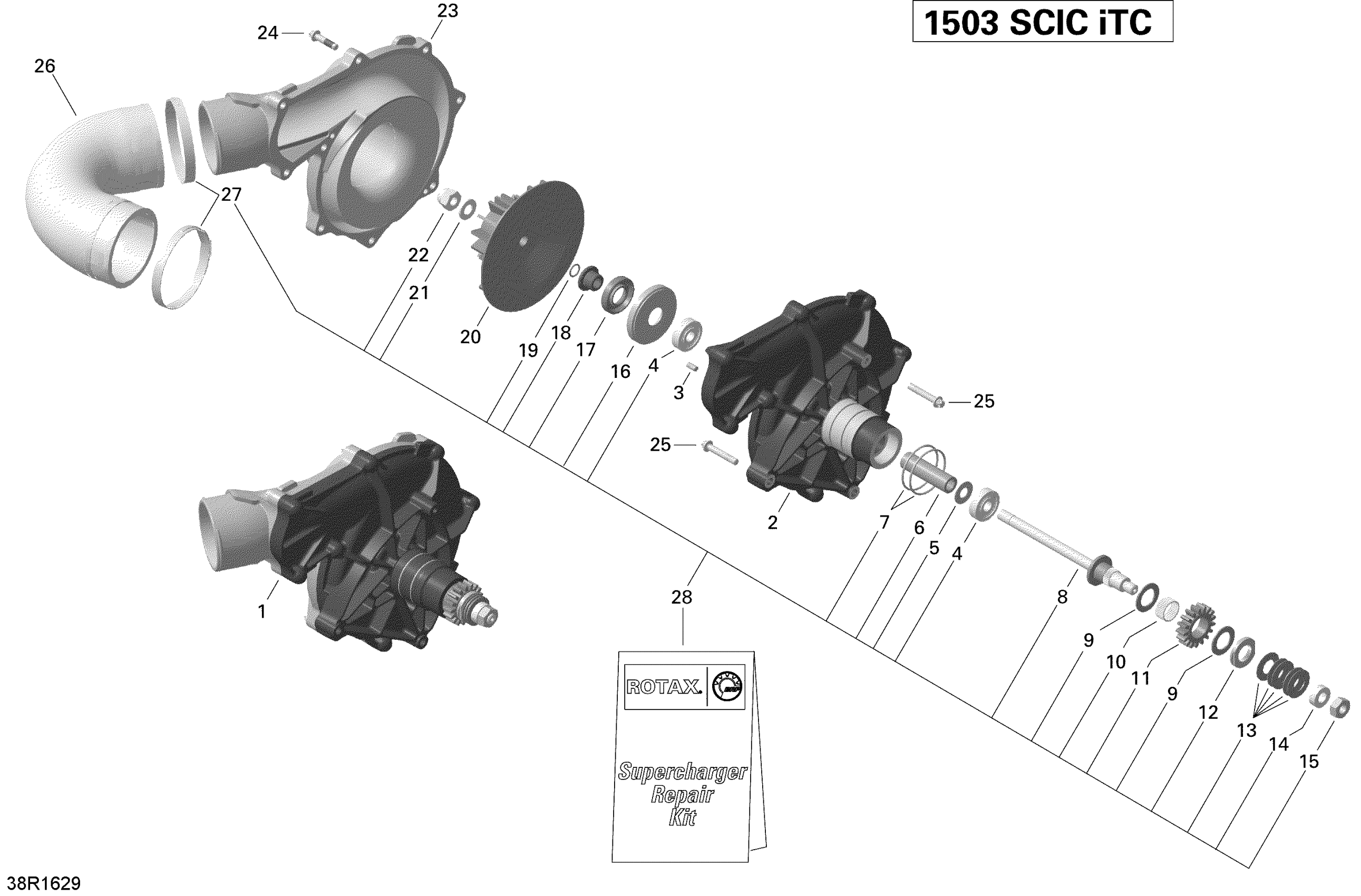

Sea-doo GTI-GTR-GTS, 2016 Supercharger - 215 Diagram

#

Description
Price

1

Supercharger Ass'Y | Includes 1 to 25 This part replaces 420881996.

420890489

$1.00

2

Compressor Base Plate

420867180

$264.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Bearing Ball This part replaces 420832710.

420832713

$39.99

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

O-Ring | Included in gasket kit

420650270

$8.01

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Pin This part replaces 420632430.

420632435

$35.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Oil Seal

420950940

$30.49

18

Not Available As Spare Part - Friction Washer

Unavailable

19

O-Ring

420950950

$1.01

20

Compressor Impeller

420867191

$759.99

21

SHIM - Call your local BRP dealership

420627418

Unavailable

22

CAP NUT - Call your local BRP dealership

420842833

Unavailable

23

Compressor Housing

420867154

$114.99

24

Torx Flange Screw M6 X 25

420641238

$3.27

25

Torx Flange Screw M6 X 35

420641258

$3.38

26

Formed Hose

420660155

$44.99

27

Gear Clamp

420851703

$22.99

28

Supercharger Kit This part replaces 420881101.

420881102

$499.99
