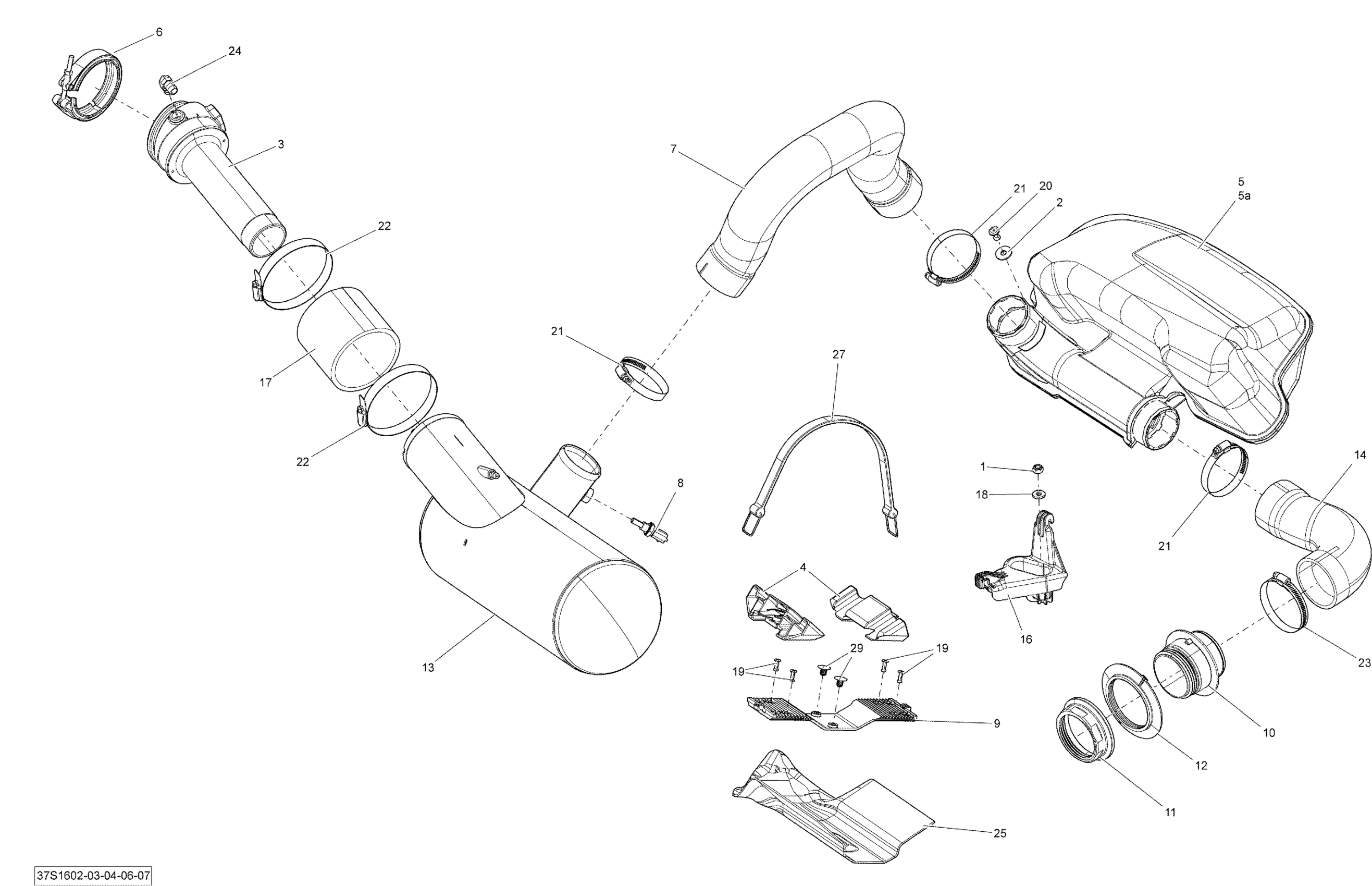

Sea-doo GTI-GTR-GTS, 2016 Exhaust System Diagram

#

Description
Price

1

Hex. Elastic Nut M8 Brass

232581200

$1.29

2

Flat Washer 8 mm, Stainless

234082600

$1.98

3

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

4

Stopper

274001721

$14.27

5

Resonator

274001366

$136.47

5a

Neoprene Seal (1PAC=3M)

219704364

$22.72

6

Exhaust Clamp

274001417

$45.47

7

Front Formed Exhaust Pipe This part replaces 274001458.

274001714

$57.82

8

Temperature Sensor

278002895

$31.82

9

Exhaust Muffler Support This part replaces 274001357.

274001479

$13.62

10

Exhaust Fitting

274001659

$29.22

11

Nut-77mm

274001541

$14.27

12

Washer

274001587

$11.53

13

Muffler This part replaces 274001384.

274001648

$660.37

14

Hose-Exhaust

274001608

$78.43

16

Support

274001609

$10.57

17

Hose

274001610

$18.82

18

Flat Washer M8.5 x 18

293050001

$1.29

19

Pop Rivet 3/16"

293150043

$1.61

20

Pop Rivet 3/16"

293150123

$3.43

21

Tridon Clamp

293650179

$8.81

22

Gear Clamp This part replaces 293650281.

293650202

$12.73

23

Tridon Gear Clamp

293650244

$7.22

24

Elbow Fitting 90° | Without Catalyst

293700023

$17.66

25

Rubber Pad

293830181

$17.66

27

Fuel Tank Strap

293850093

$16.87

29

Dart

414939500

$0.86
