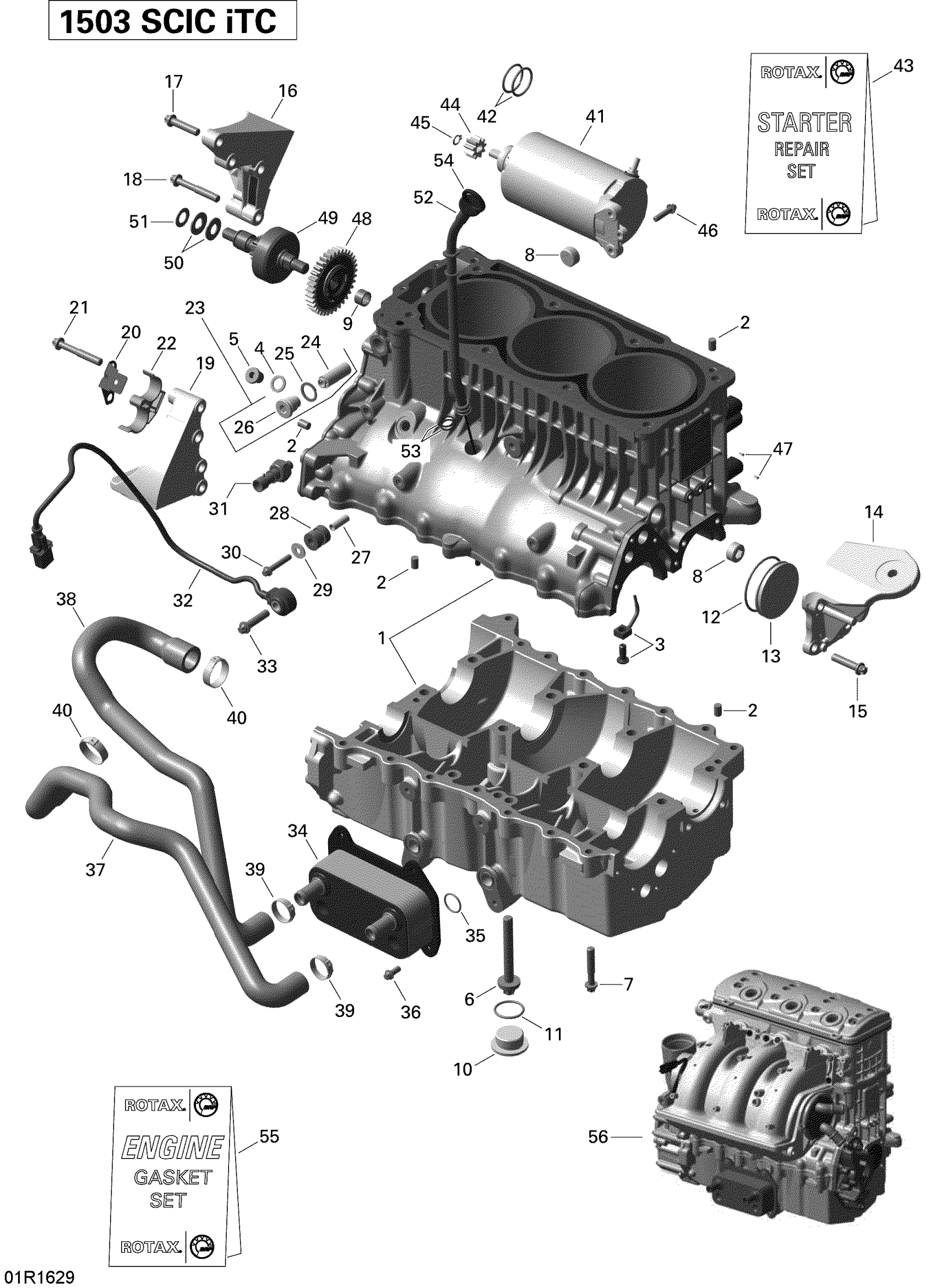

Sea-doo GTI-GTR-GTS, 2016 Engine Block - 215 Diagram

#

Description
Price

1

Engine Block Ass'y 1503 Plasma | Built Before Nov 16 2016

420893166

$2.00

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$27.49

4

Aluminum Sealing Ring

420250016

$5.39

5

Plug Screw M12

420841923

$15.89

6

Torx Flange Screw M10 X 82

420641120

$7.41

7

Hex. Flange Screw M8 X 45

420641208

$7.51

7

Hex. Flange Screw M8 X 45

420641208

$7.51

8

Plug Screw M20 X 1.5

420641317

$14.22

9

Needle Bushing

420232482

$20.99

10

Plug Screw M30 X 1.5

420641171

$20.99

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

12

O-Ring

420430405

$14.28

13

Plug Cover

420660110

$7.41

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$7.41

16

Engine Bracket PTO, Exhaust

420811788

$75.99

17

Torx Flange Screw M8 X 35

420641188

$7.41

18

Torx Flange Screw M8 X 55

420641213

$7.41

19

Engine Bracket PTO, Exhaust

420811784

$63.99

20

Retaining Plate

420851740

$20.99

21

Torx Flange Screw M8 X 55

420641213

$7.41

22

Hose Bracket

420660290

$16.37

23

Chain Tensioner With Screw | Includes no. 8-11

420236259

$70.99

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Gasket Ring

420430624

$1.89

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Spacer

420847971

$7.41

28

Rubber Bracket

420660090

$4.12

29

Flat Washer M6

420827968

$1.90

30

Torx Flange Screw M6 X 35

420641258

$3.38

31

Oil Pressure Switch

420256919

$51.99

31

Oil Pressure Switch

420256919

$51.99

32

Noise Sensor

420664031

$63.99

33

Torx Flange Screw M8 X 35

420641188

$7.41

34

Oil Radiator

420888877

$339.99

35

O-Ring

420250057

$4.23

36

Torx Flange Screw M6 X 16

420641048

$2.96

37

Formed Hose

420922834

$62.49

38

Formed Hose

420922832

$48.49

39

Oetiker Clamp

420851661

$7.09

40

Gear Clamp

420851673

$5.71

41

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

42

O-Ring

420631310

$4.44

43

Carbon Brush Set

420881340

$67.99

44

Starter Gear, 9 Teeth

420834522

$74.99

45

Retaining Ring

420845601

$4.55

46

Torx Flange Screw M6 X 25

420641238

$3.27

47

Grooved Pin

420249073

$1.90

48

Bendix Starter This part replaces 420889872.

420890637

$264.99

49

Bendix Starter This part replaces 420889872.

420890637

$264.99

50

Spring Washer

420238300

$7.41

51

Thrust Washer

420827261

$7.51

52

Oil Level Tube

420956944

$121.49

53

O-Ring

420950810

$14.83

54

Oil Level Gauge

420956933

$25.99

55

Engine Gasket Set

420889773

$550.99

56

ENGINE LONG BLOCK, 1503 HO ETC - Call your local BRP dealership

420150375

Unavailable

56

Engine Long Block This part replaces 421000719.

420150399

$4.00

56

Engine Long Block This part replaces 421000719.

420150399

$4.00
